4-188 Service Manual

7510

2000-sheet dual input (TTM)—one-way clutch / gear assembly removal

1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on

page 4-167.

2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly

removal” on page 4-171.

3. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)–TTM media tray 4 assembly

removal” on page 4-170.

4. Remove the tray 4 media transport assembly. See “2000-sheet dual input (TTM)–TTM tray 4 media transport

assembly removal” on page 4-175.

5. Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly 2

removal” on page 4-183, “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on

page 4-183, or “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-179.

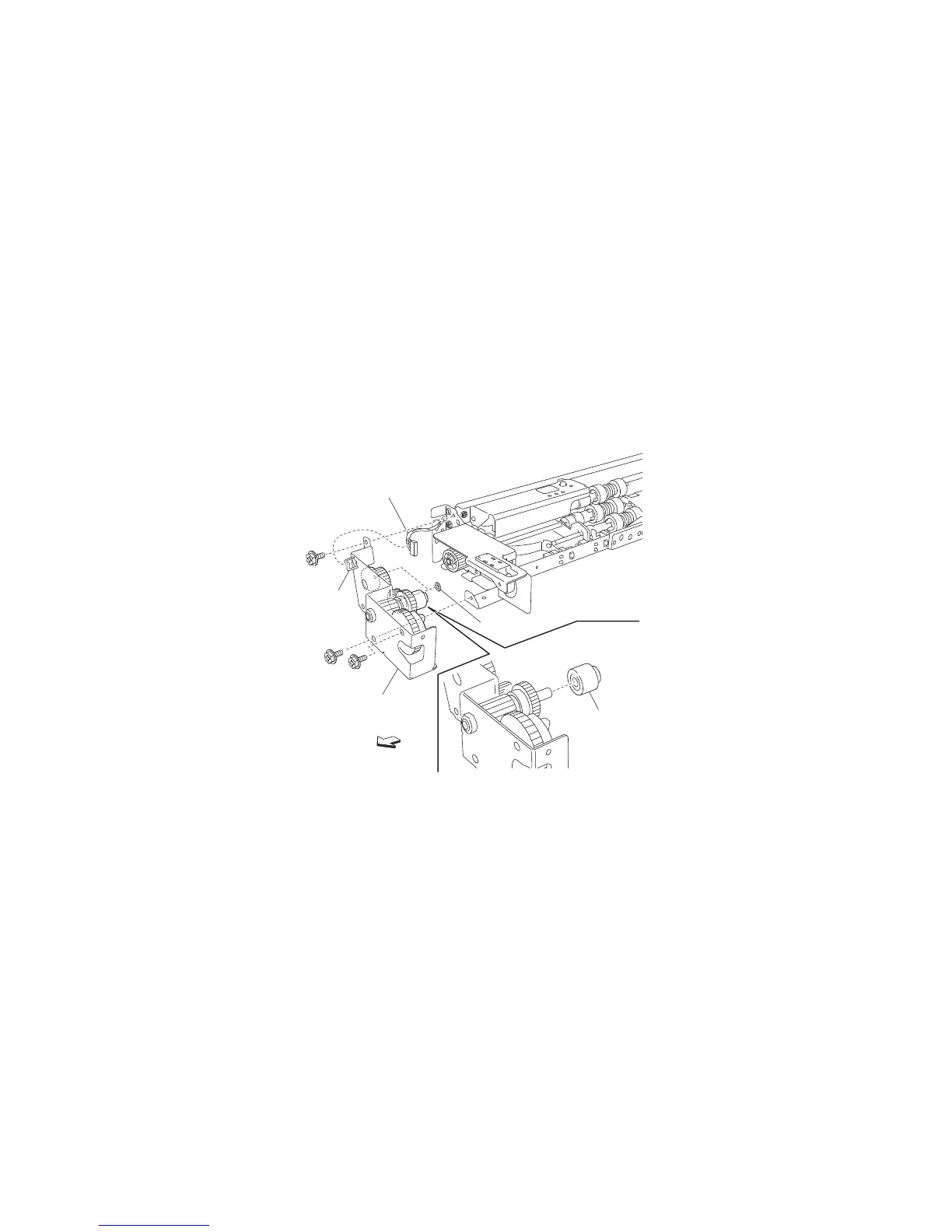

6. Remove the harness from the bracket (A).

7. Remove the three screws securing the bracket (A) to the media feed unit assembly.

8. Remove the bracket (A).

Note: The gears may become detached from the bracket (A).

9. Remove the tray lift one-way clutch (B).

Harness

Washer

Clamp

Rear
