Repair information
4-5
7510

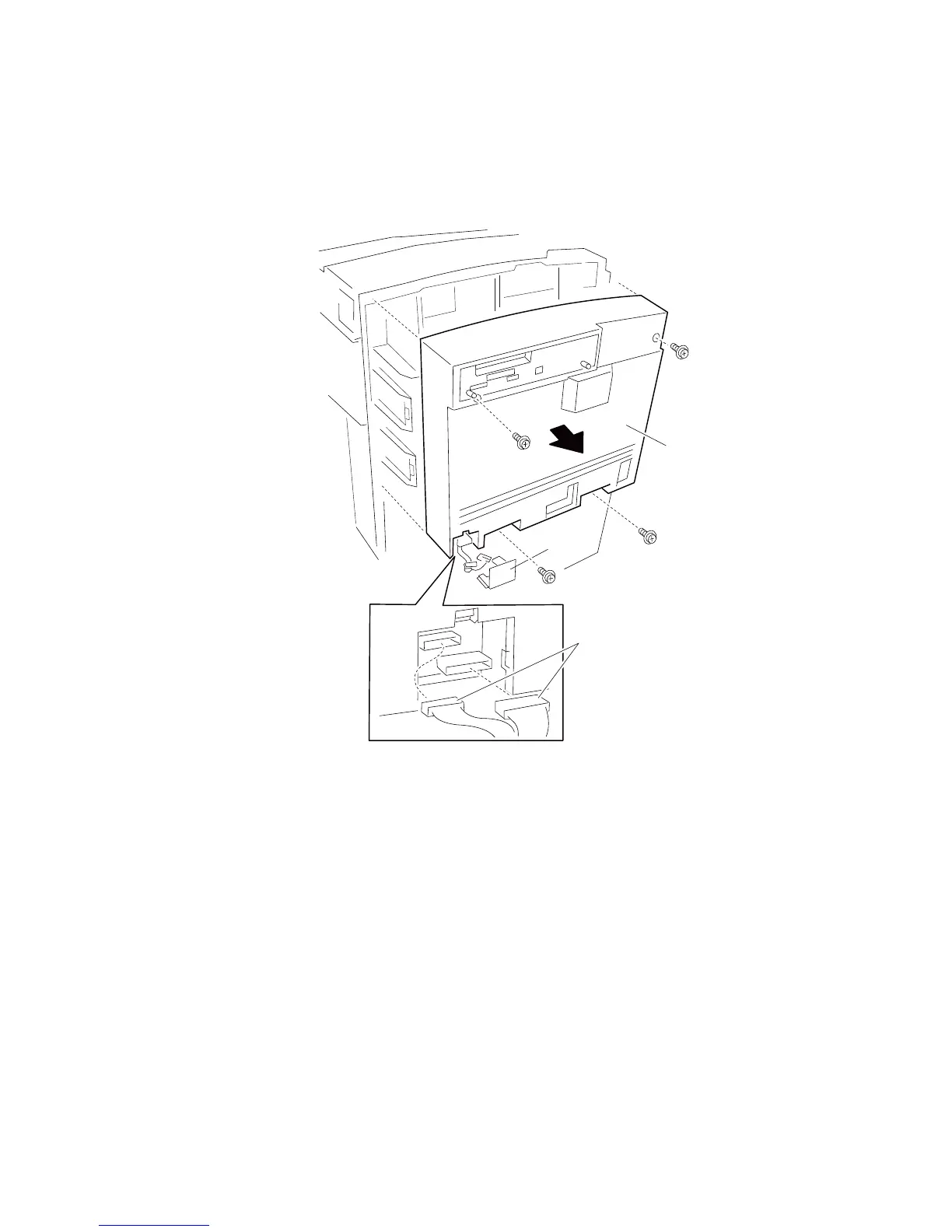

Rear cover assembly removal
1. Remove the blind cover (A).
2. Remove all connectors and power cords from the rear of the machine.
3. Remove the four screws securing the rear cover assembly (B) to th
e machine.
4. Remove the rear cover assembly (B).
B
A
Connectors
412
414
