4-158
Service Manual
7510

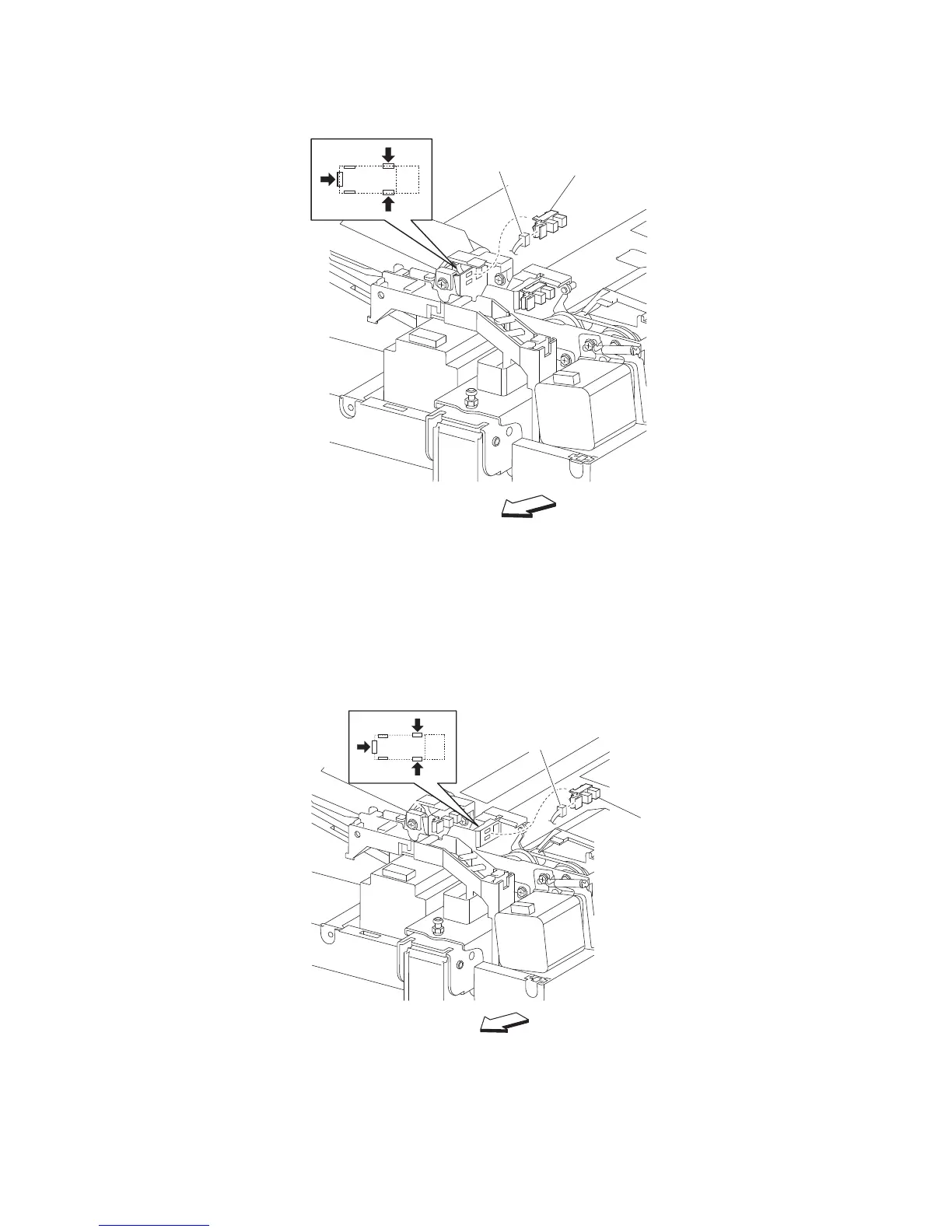

6. Remove the sensor (document set) (A).
Sensor (sheet through) removal
1. Open the ADF le
ft cover assembly
.
2. Lift the document tray assembly
.
3. Remove the ADF rear cover
. See
“ADF rear cover removal” on page
4-131
.
4. Disconnect the connector from
the sensor (sheet throu
gh) (A).
5. Release the hooks securing
the sensor (sheet through)
(A).
6. Remove the sensor (sheet through) (A).
A
Connector
Rear
A
Rear
Connector
565
567
