Repair informa
tion
4-215
7510

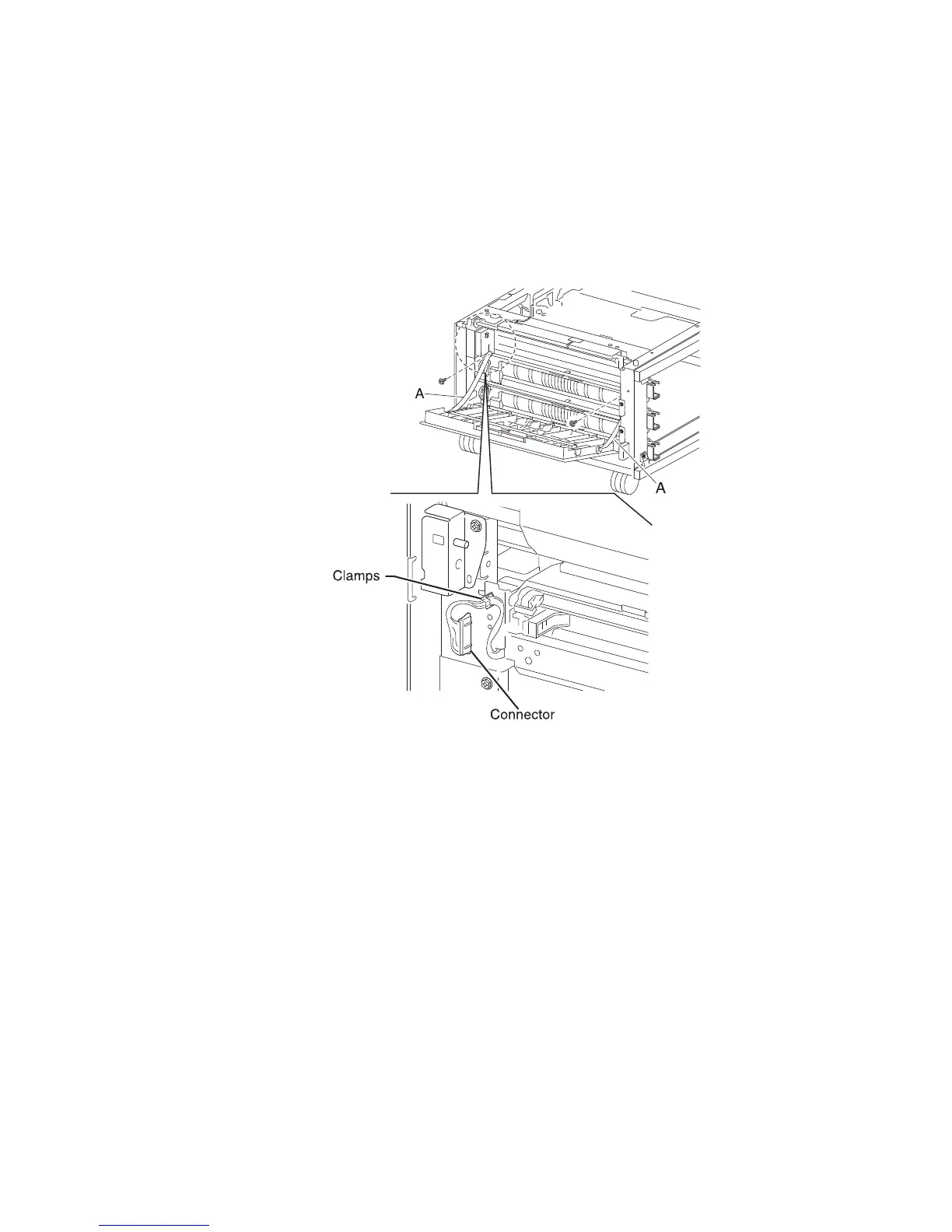

3X 500-sheet drawer (3TM)—media feed
unit assembly removal (tray 2)
1. Remove the media tray 2 assembly
.
2. Open the 3TM le
ft door assembly
.
3. Remove the two screws securing the two support straps (A) to the machine.
4. Release the harness from the clamp.
5. Disconnect the connector from the media feed unit assembly (B).
6. Remove the two screws securing the media feed unit asse
mbly (B) to the machine.
7. Remove the media feed unit assembly (B).
