4-166 Service Manual

7510

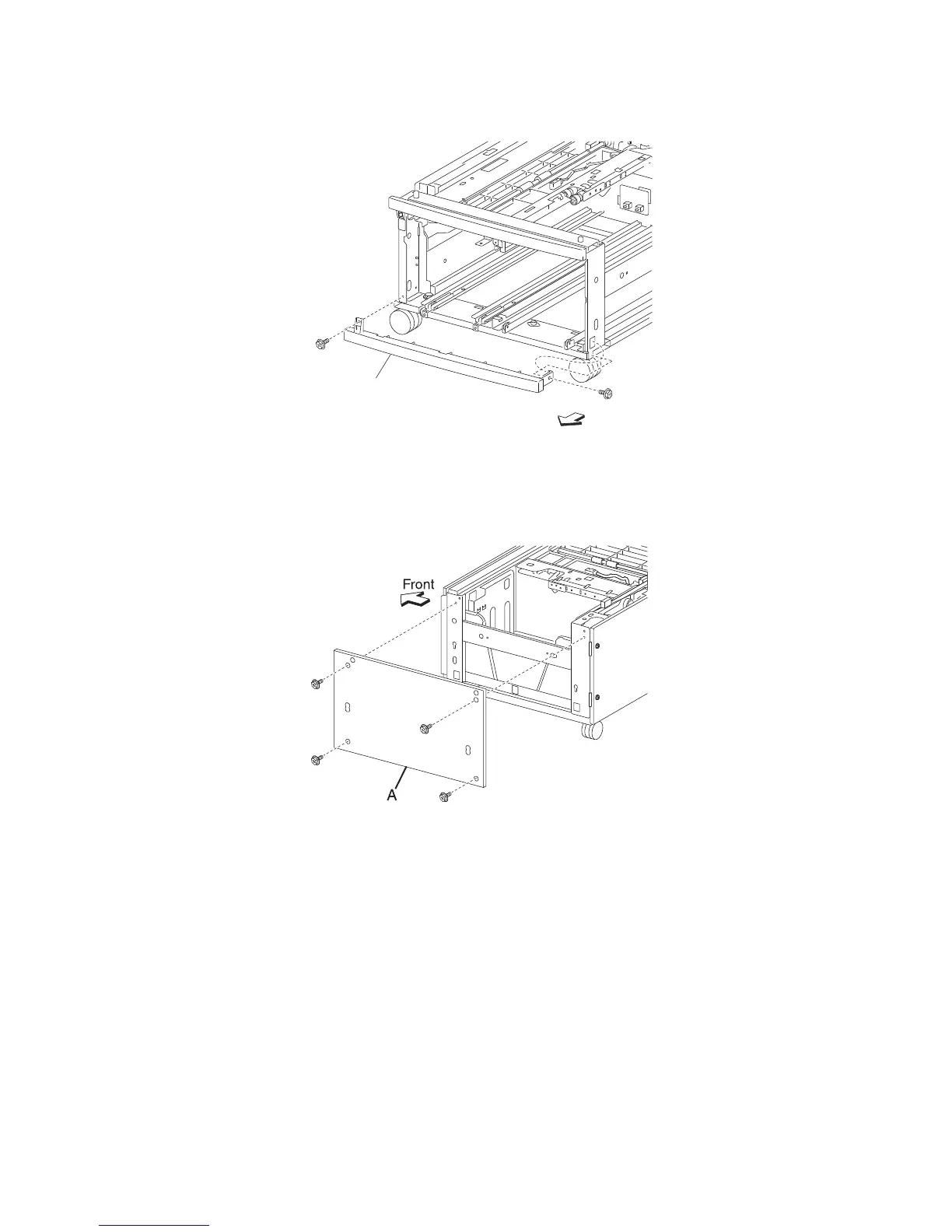

4. Remove the foot cover (A).

2000-sheet dual input (TTM)—right cover removal

1. Remove the four screws securing the right cover (A).

2. Remove the right cover (A) by lifting up and out.

Front
