Lexmark X945 - Assembly 33: ADF Assembly

To Next Page

To Previous Page

7-38 MFP Service Manual

7510

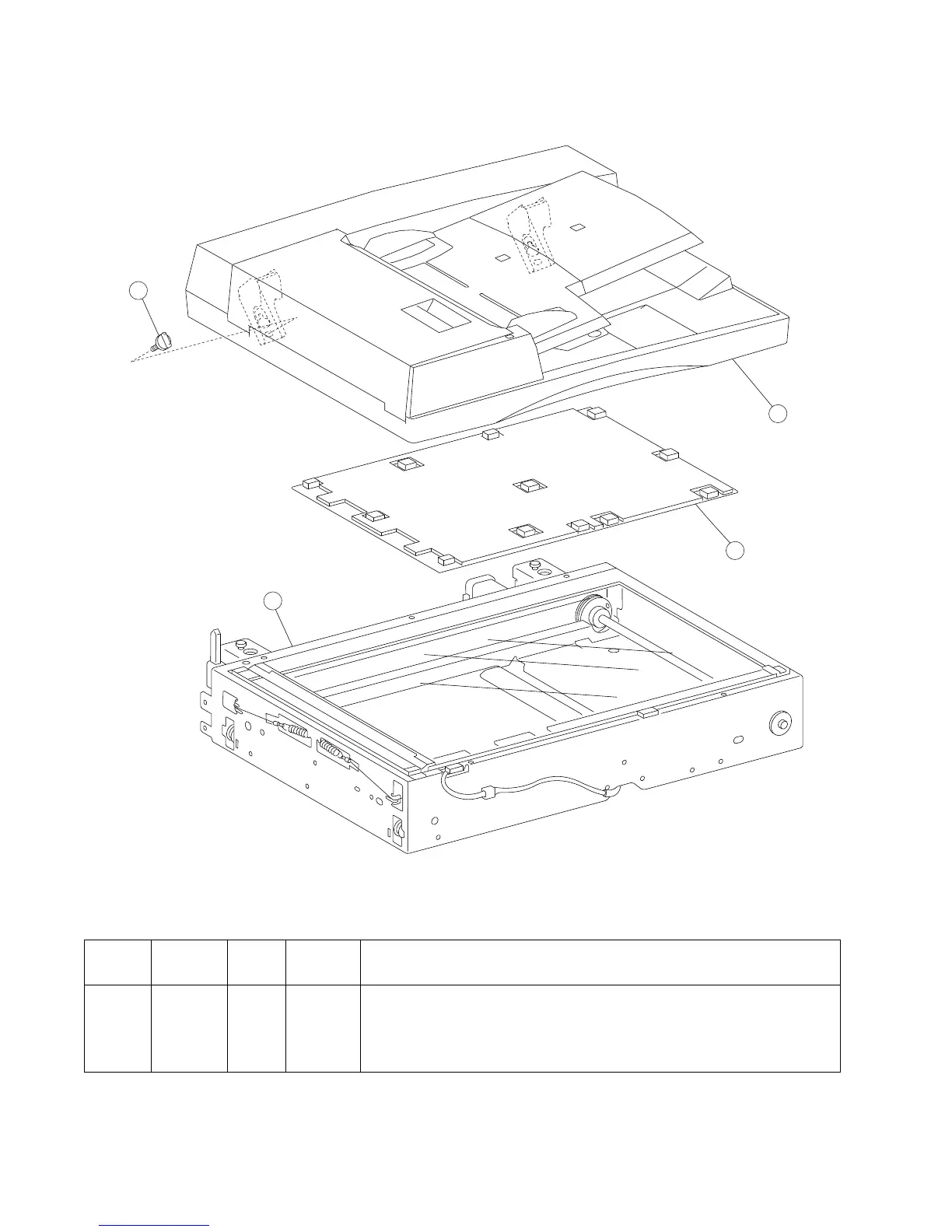

Assembly 33: ADF assembly

Asm

Index

Part

number

Units/

mach

Units/ kit

or pkg

Description

1 40X3879 1 1 ADF unit assembly (this comes assembled)

2 40X2239 1 1 Platen cushion

3 40X4094 1 1 Scanner unit assembly (this comes assembled)

4 40X2238 2 1 ADF mounting screw
