General information
1-21
7510

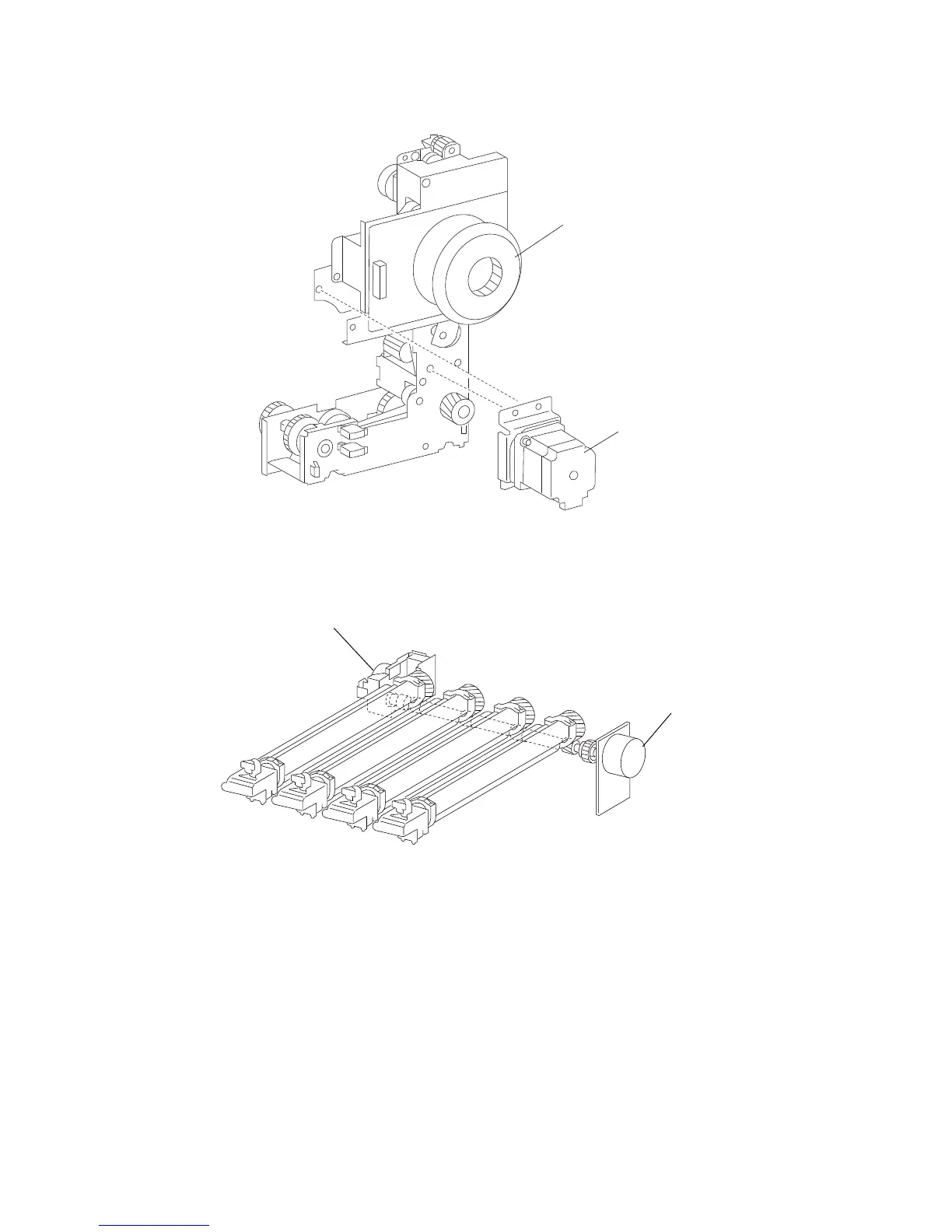

The MPF/transport drive motor is a stepper motor that
drives the MPF unit assembly and media
transport roll.
CMYK PC
cartridge drive motor assembly
The CMYK PC cartridge drive motor assembly uses dual
DC brushless motors that drive the four drums in the
four PC cartridges.
K
developer/transport
drive
motor
assembly
MPF/transport
drive
motor
K drive motor
CMY drive motor
50
52
