4-246
Service Manual
7510
1X 500-sheet drawer (1TM)—one-way 22 tooth removal
1. Remove the media tray assembly
.
2. Remove the feed roll. See
“1X 500-sheet drawer (1TM)–fee
d roll removal” on page
4-244
.
3. Remove the feed roll one-way clutch. See
“1X 500-sheet drawer (1TM)–feed ro
ll one-way clutch removal” on
page
4-245
.

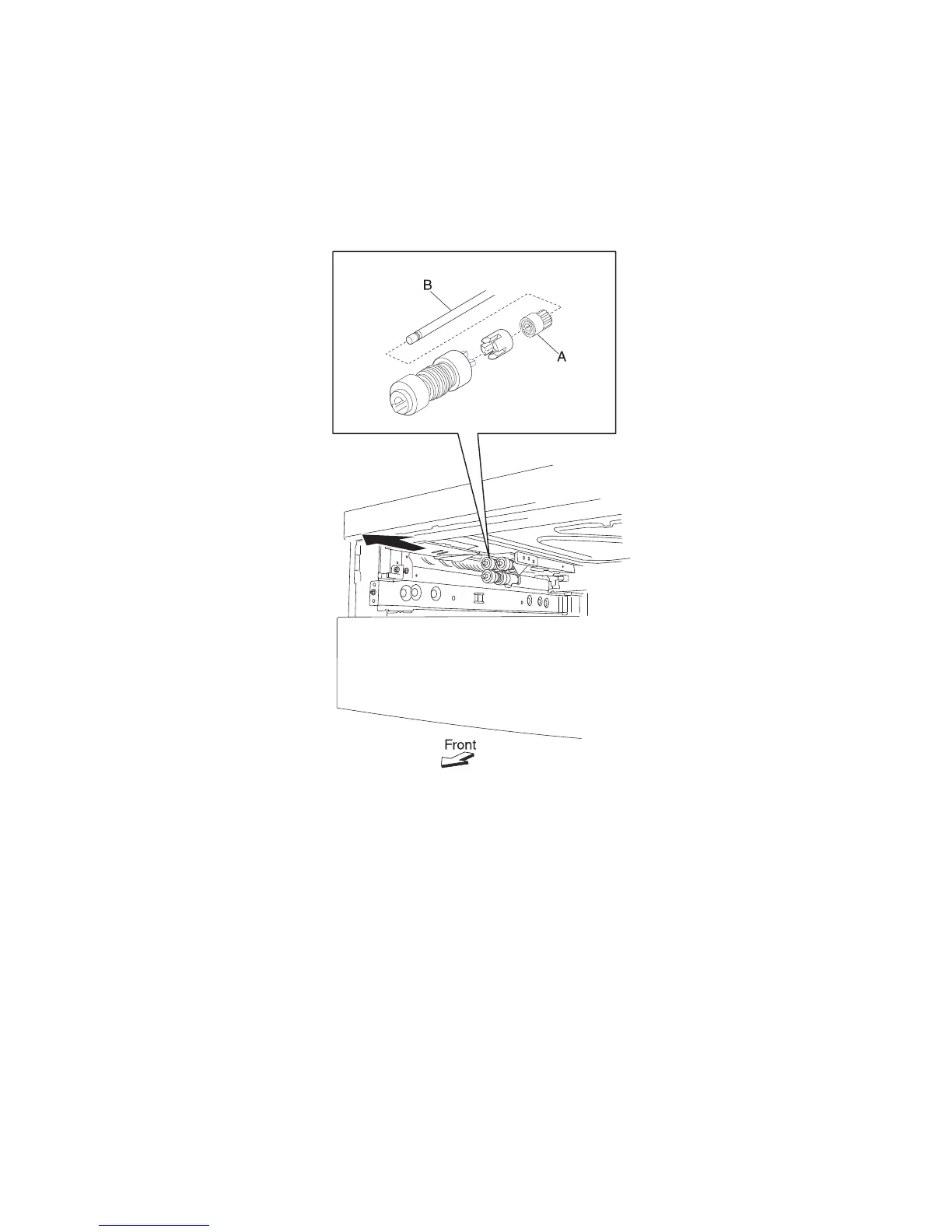

4. Remove the feed roll one-way gear 22 tooth (A).
653
655
