LSIS sv-ig5a User Manual

7-14

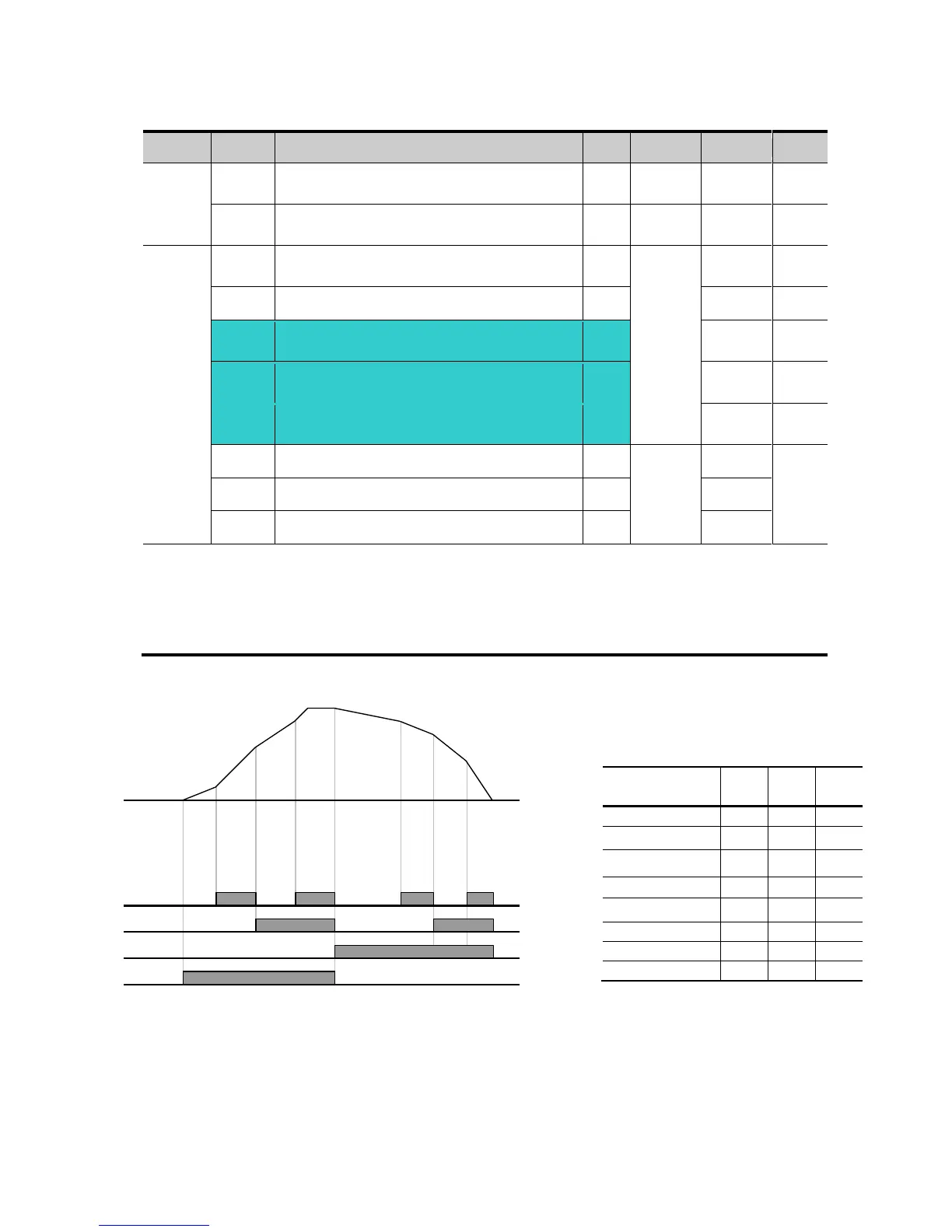

 Multi-Accel/Decel time setting via Multi-function terminals
Group
Code
Parameter Name
Set
Range
Initial
Unit
Drive
group
ACC
[Accel time]
-
0 ~
6000
5.0
Sec
dEC
[Decel time]
-
0 ~
6000
10.0
Sec
I/O
group
I17
[Multi-function input terminal P1 define]
0
0 ~ 27
0
I18
[Multi-function input terminal P12 define]
1
1
I19
[Multi-function input terminal P3
define]
8
2
I20
[Multi-function input terminal P4
define]
9
3
I21
[Multi-function input terminal P5
define]
10
4
I34
[Multi-Accel time 1]
-
0 ~
6000
3.0
Sec
~
~
I47
[Multi-Decel time 7]
-
9.0
 Set I19, I20, I21 to 8, 9, 10 if you want to set Multi - Accel/Decel time via P3-P5 terminals.
 Multi-Accel/Decel time 0 is settable at ACC and dEC.
 Multi-Accel/Decel time 1-7 is settable at I34-I47.
Accel/Decel
time
P5
P4
P3
0
-
-
-
1
-
-

2
-

-
3
-


4

-
-
5

-

6


-
7



Frequency
P3
P4
P5
FX
Accel
Time 0
Accel
time 1
Accel
time 2
Accel
time 3
Decel
time 4
Decel
time 5
Decel
time 6
Decel
time 7
