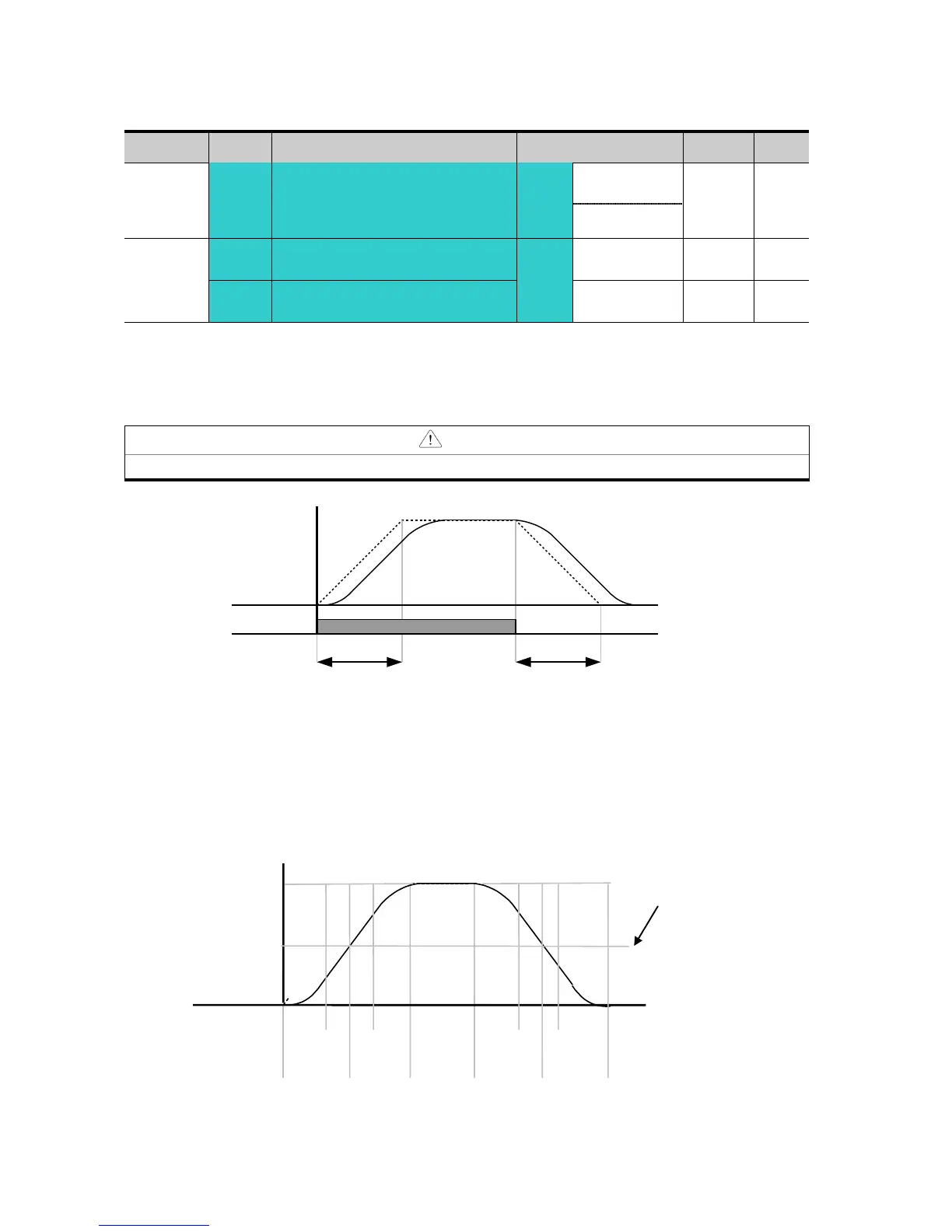

 Accel/Decel pattern setting
Group
Code
Parameter Name
Setting range
Initial
Unit
Function
group 1
F 2
[Accel pattern]
0
Linear
0
F 3
[Decel pattern]
1
S-curve
Function
group 2
H17
[S-Curve Accel/Decel start
side]
0~
100
40
%
H18
[S-Curve Accel/Decel end
side]
40
%
 Accel/Decel pattern is settable at F2 and F3.
 Linear: This is a general pattern for constant torque applications.
 S-curve: This curve allows the motor to accelerate and decelerate smoothly.
CAUTION
For S-curve, the actual Accel/Decel time takes longer than the time set by user.
 H17 sets the starting ratio between S-curve and Linear in 1/2 of Accel/Decel Ref. Frequency. For
smooth Accel/Decel starting, increase H17 to extend S-curve ratio.
 H18 sets the ending ratio between S-curve and Linear in 1/2 of Accel/Decel Ref. Frequency. For
smooth and accurate speed arrival and stopping, increase H18 to extend S-curve ratio.
Operating
command
Freq.
Accel
time
Decel
time
Freq
H17
H17
H18
H18
Accel/Decel
Ref. Freq.
Accel
Start
Accel
End
Decel
Start
Decel
End
1/2 of
Accel/Decel
Ref. Freq
