LSIS XBF-AD04A User Manual

XGB Analog edition manual

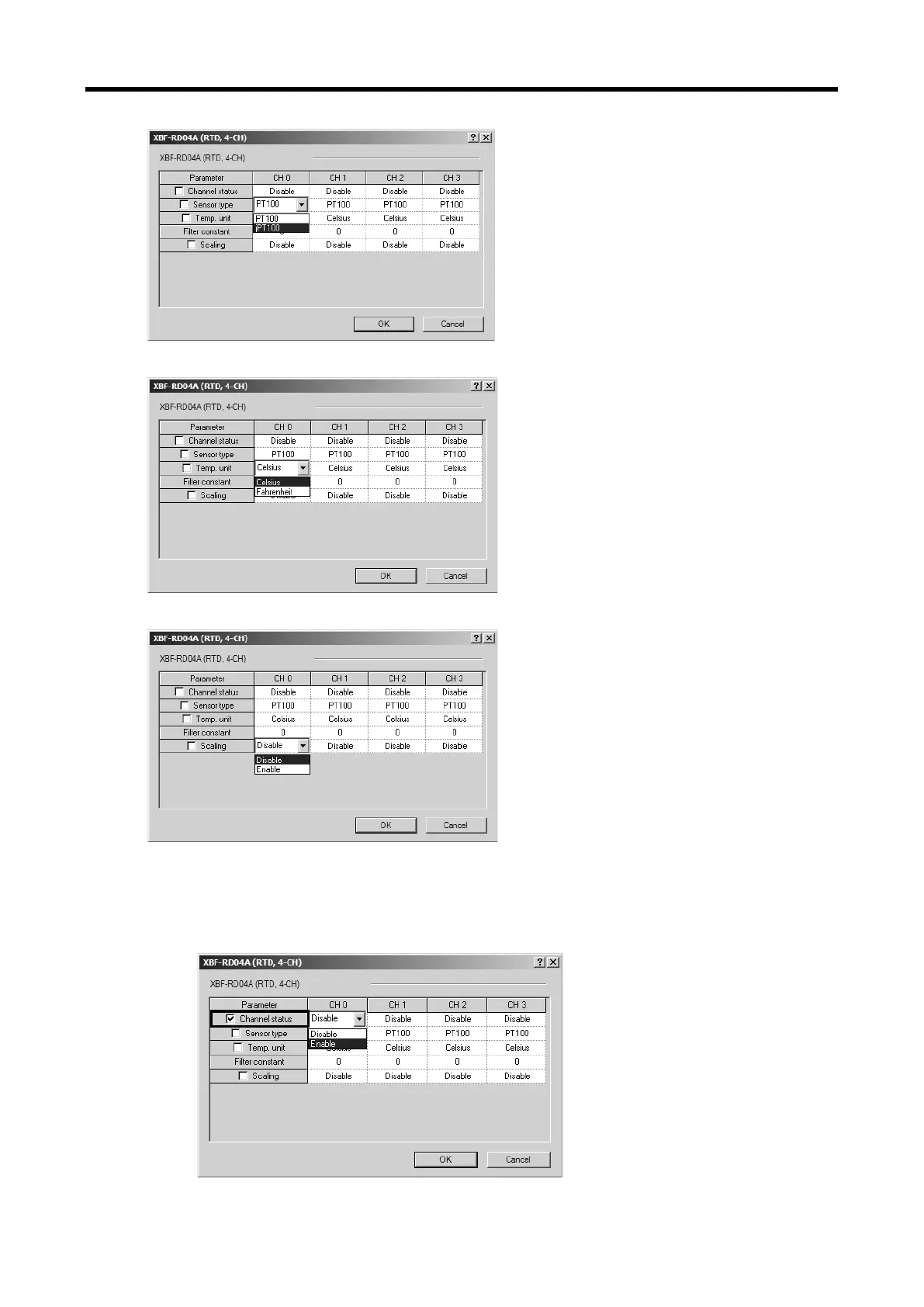

(b) Input sensor type setting screen
(c) Temp. unit setting screen
(d) Scaling setting screen
(9) If necessary setting is complete, press OK.
(10) Check the check box on the parameter menu to select and change setting of a channel then the
setting value of all the channels will be identical to changed setting value. The figure below shows
an example with this function that channel status is changed to ‘Enable’ of all the channels.
4 - 14
