Chapter 8 Analog Input Option Board (XBO-AD02A)
8.5 Accuracy

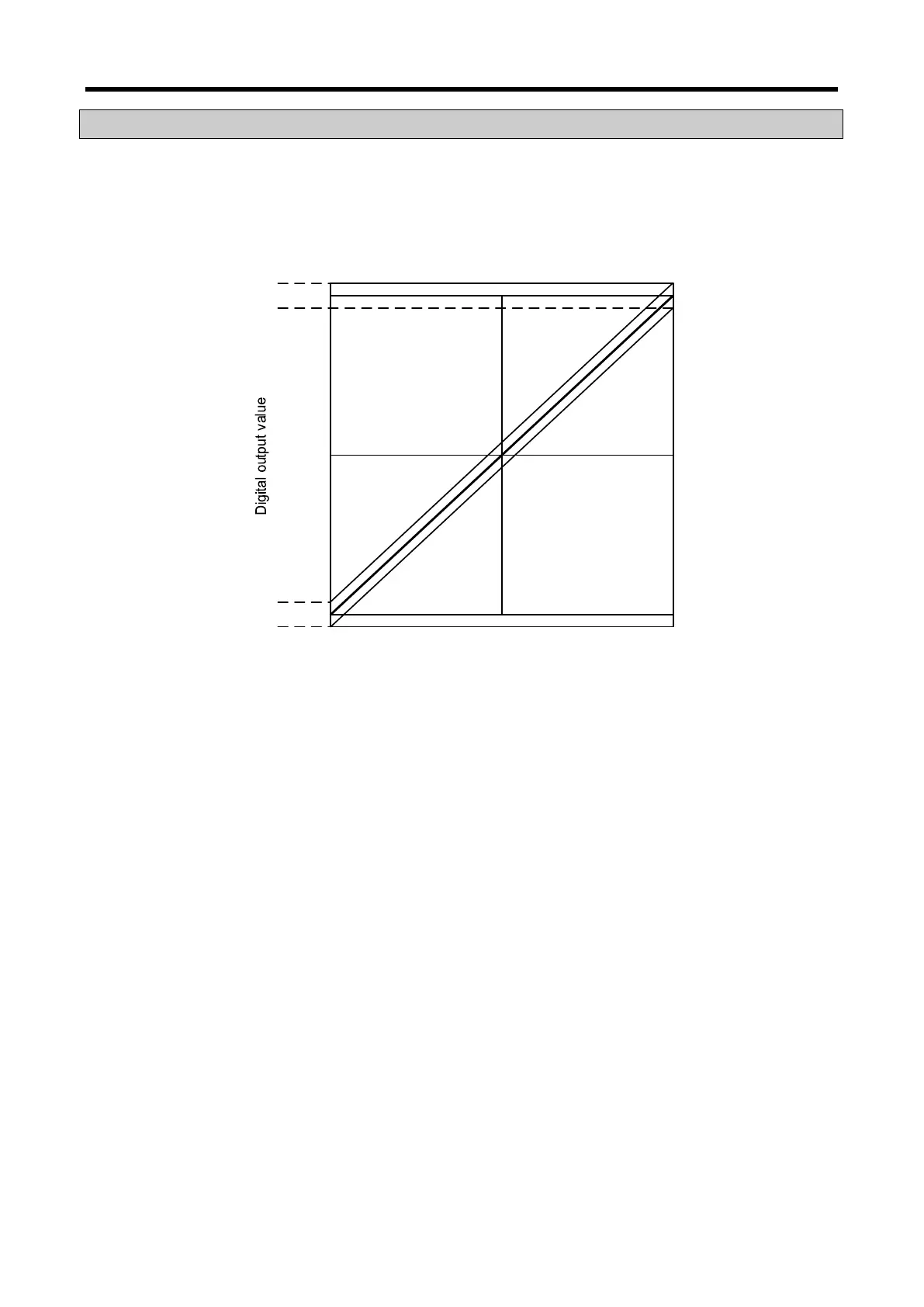

Accuracy of digital output value does not changed even if input range is changed. Figure below shows
the range of the accuracy with analog input range of 0 ~ 10 V and digital output type of unsigned value
selected.
Accuracy of XBO-AD02A is ±1.0%.
0
0V 5V
2000
10 V
4000
Analog input voltage
3980
4020
-20
20
[ Accuracy ]
(1) Accuracy when using 5V input
4000 × 1.0% = 40
Therefore the range of the accuracy will become (2000-40) ~ (2000+40) = 1960 ~ 2040
when using 5V input.
(2) Accuracy when using 10V input
4000 × 1.0% = 40
Therefore the range of the accuracy will become (4000-40) ~ (4000+40) = 3960 ~ 4040
when using 10V input.
