6.8 Operation Parameter Setting
The operation parameters of analog I/O module can be set up with XG5000 [I/O Parameter].
(1) Setting Items
For user convenience, XG5000 provides GUI (graphic user interface) for analog I/O module
parameter setting. The items which can be set up in the [I/O Parameter] in the XG5000 project
window are as follows.
Item
Description
[I/O
Parameter]
(a) Input parameter setting
Sets up following items required for module operation.
1) Operation channel (Stop/Run)
2) Input voltage (current) range
3) Output data type
4) Filter constant
5) averaging process
6) Average value
(b) Output parameter setting
Sets up following items required for module operation.
1) Operation channel (Stop/Run)
2) Output voltage (current) range
3) Input data type
4) Channel output status
(c) The parameters set up in XG5000, when downloaded, are stored in the flash
memory of the XGB base unit.

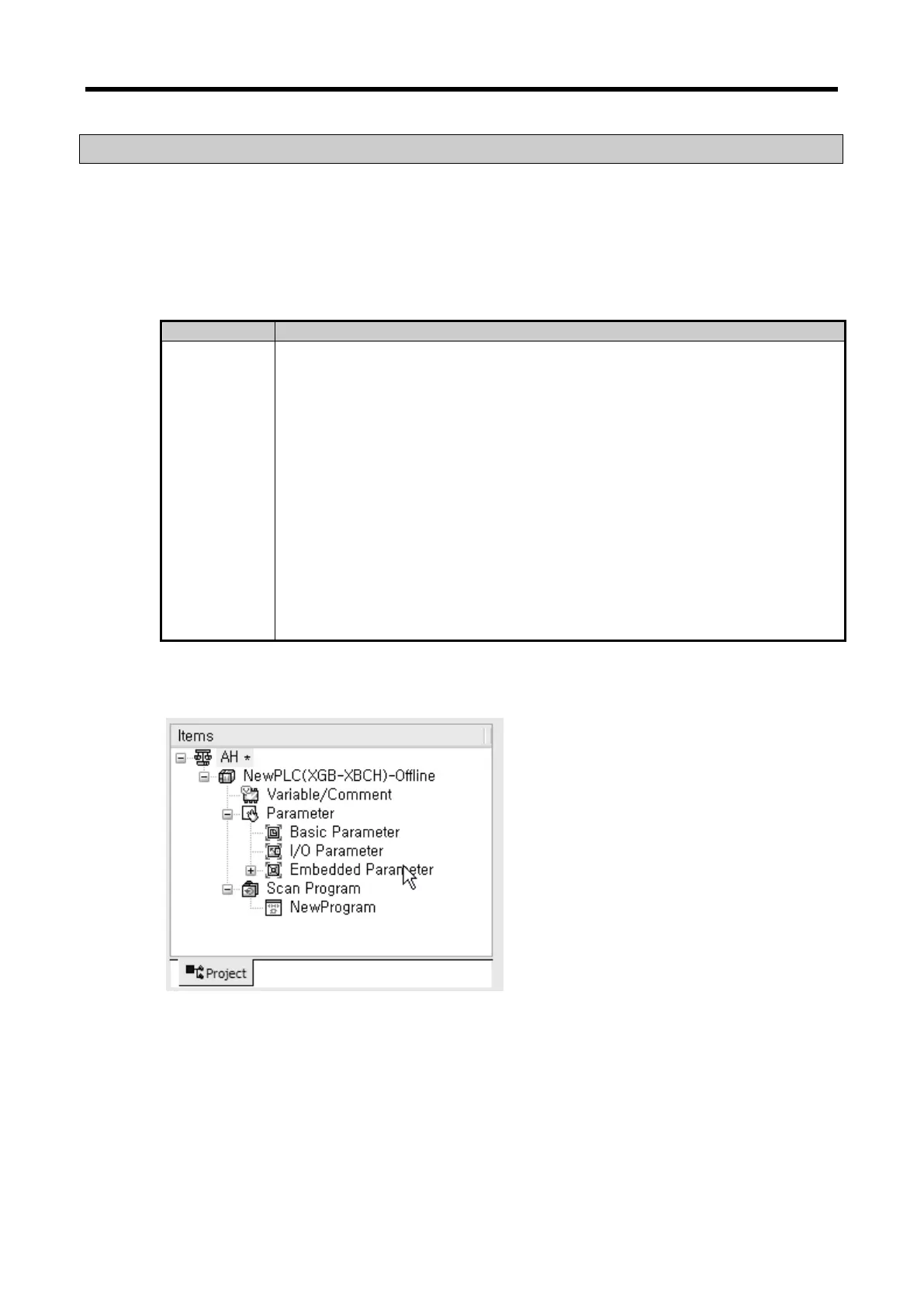

(2) Usage of [I/O Parameter]
(a) Create a project with XG5000. See XG5000 Program Manual for project creation.
(b) In the Project window, double-click [I/O Parameter].
6 - 22
