Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)

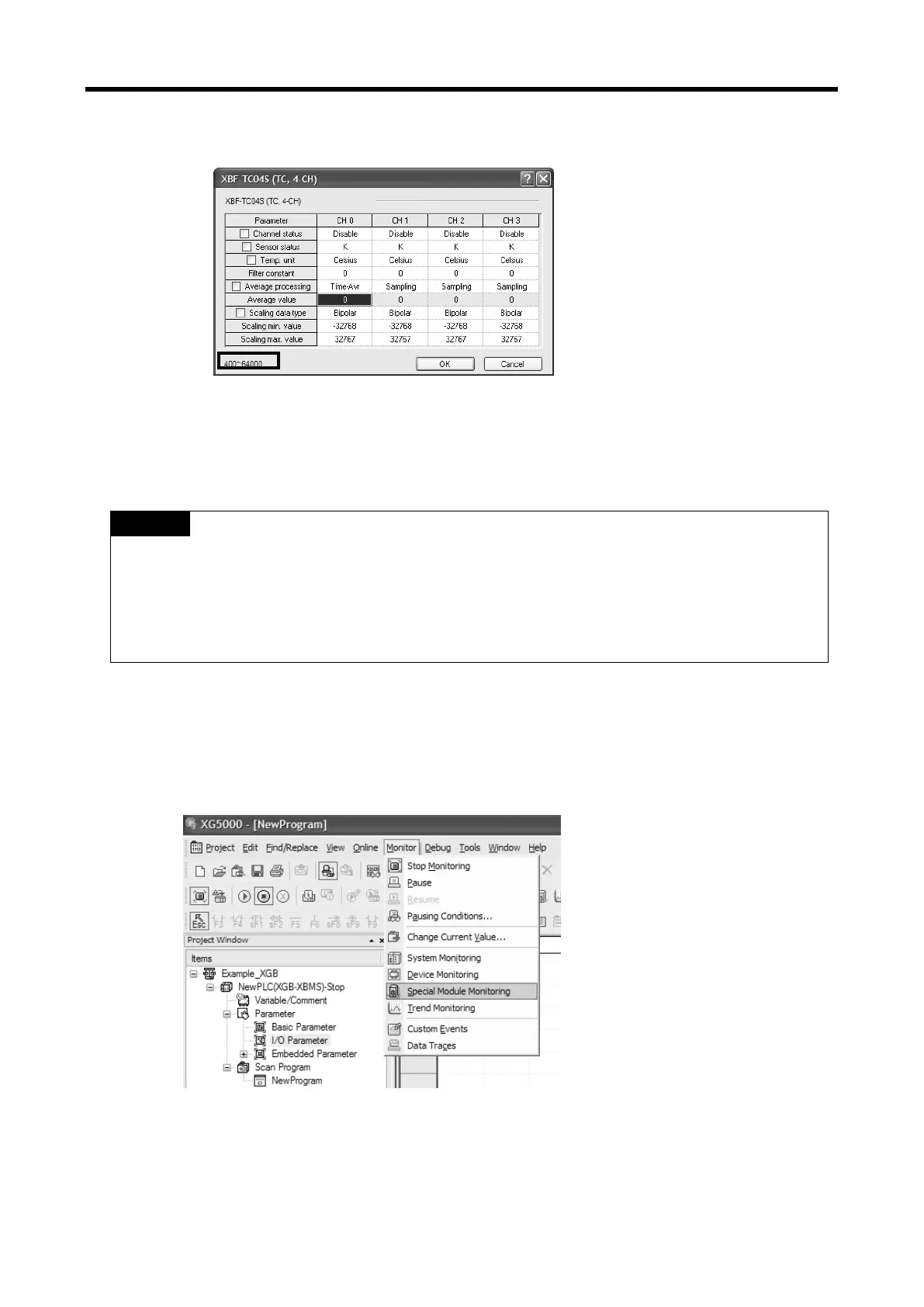

3) If the wrong number is specified, it is displayed with red color.
(When Average value or scaling min./max. value is out of range.)
5.5.2 Special module monitoring function
While XG5000 is connected with PLC, through [Monitor] -> [Special Module Monitoring], the user can
test the operation of the analog output module.
Remark
1) If system resource is short, the screen may not be displayed properly. In case of this, shut down
other application program and restart the XG5000.
2) On the [Special Module Monitoring] status, I/O parameter is set temporarily to execute the test. So
if [Special Module Monitoring] status ends, I/O parameter is not saved.
3) By test function of [Special Module Monitoring], the user can check if analog module operates
properly or not without any sequence program.
(1) How to use special module monitoring
(a) Start of [Special Module Monitoring]
While XG5000 is connected with PLC, start [Monitor] -> [Special Module Monitoring]. If that is
not online status, [Special Module Monitoring] is not activated.
5 - 27
