13.8 Operation Parameter Setting
A/D conversion module’s operation parameters can be specified through XG5000’s [I/O parameters].
(1) Settings
For the user’s convenience of A/D conversion module, XG5000 provides GUI (Graphical User
Interface) for parameters setting of A/D conversion module. Setting items available through [I/O
parameters] on the XG5000 project window are as described below in the table.
[I/O parameter]
(a) Parameter setting
Specify the following setting items necessary for the module operation.
1) Channel Enable/Disable setting
2) Input voltage(current) range
3) Output data format setting
4) Filter constant setting
5) Average processing method setting
6) Average value setting
(b) When the parameters set by user in XG5000 is downloaded, that data is
saved in flash memory of XGB basic unit.
2) [I/O Parameter] Using method
(1) Run XG5000 to create a project.
(Refer to XG5000 program manual for details on how to create the project)

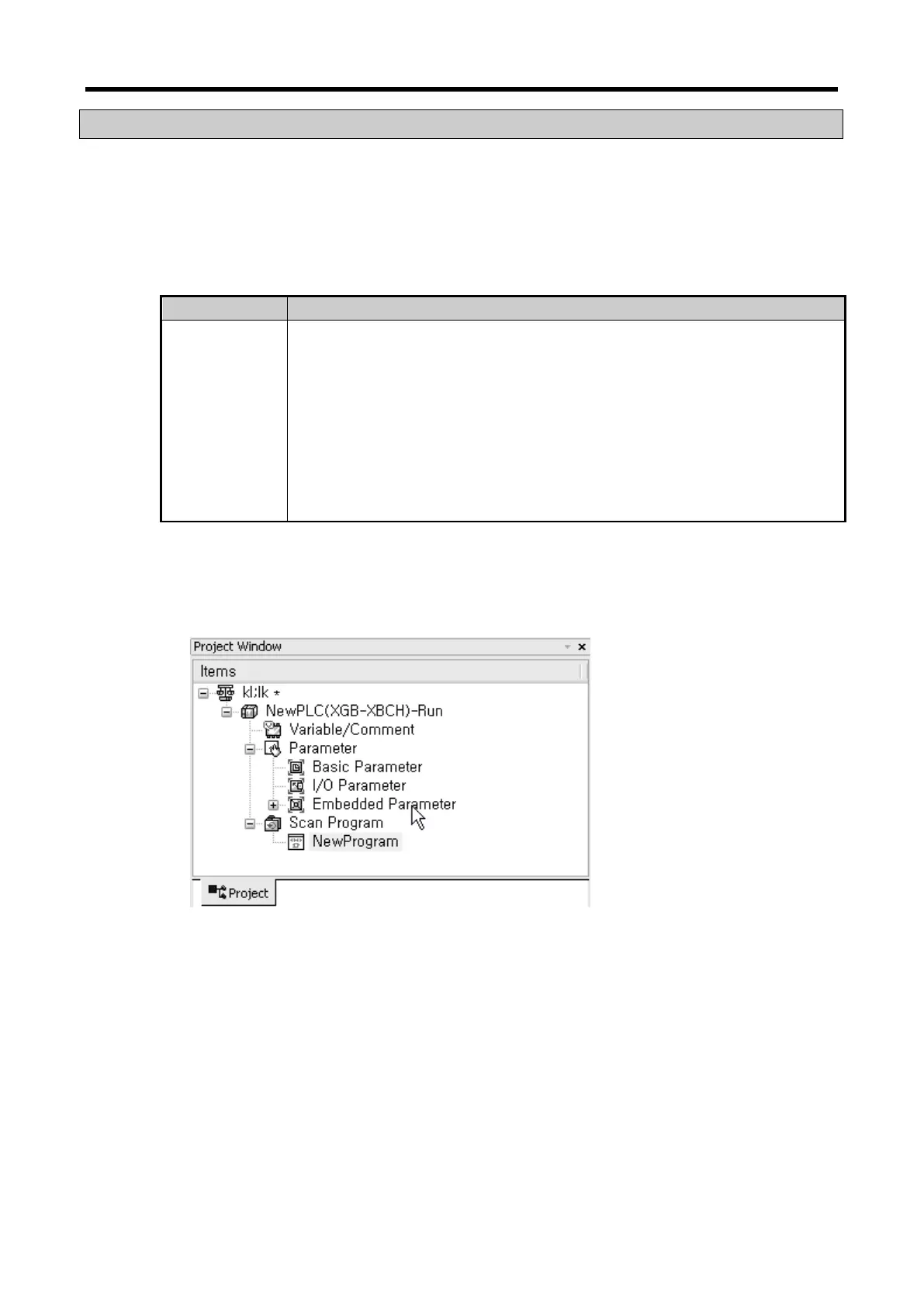

(2) Double-click [I/O parameters] on the project window.
