2 - 6

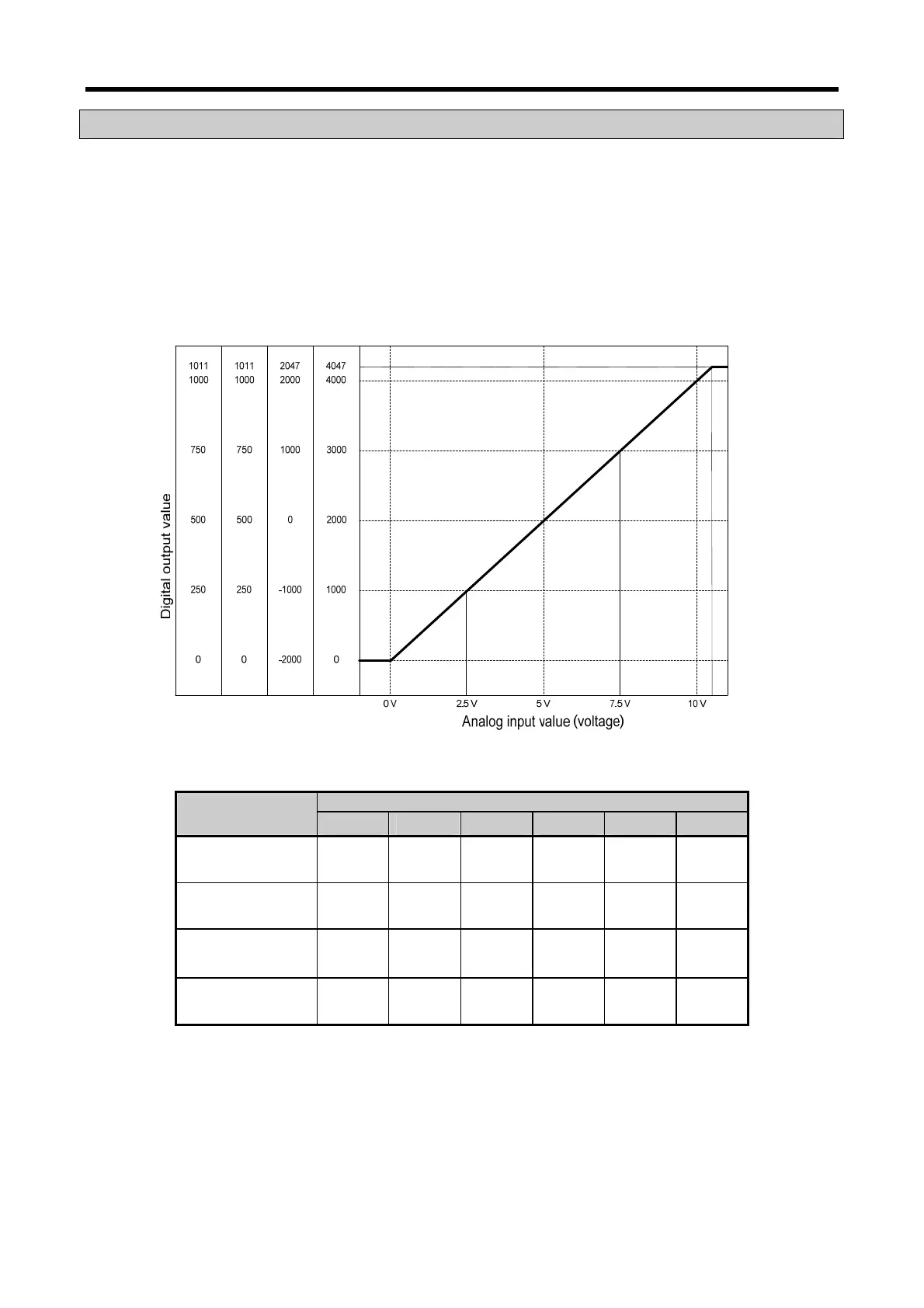

2.5 Conversion Characteristic according to Input Range
Voltage input range can be set through user program or special module package for respective
channels. Output formats of digital data are as specified below;
A. Unsigned Value
B. Signed Value
C. Precise Value
D. Percentile Value
2.5.1 If the range is DC 0 ~ 10V
Digital output value for voltage input characteristic is as specified below.
(Resolution (based on 1/4000): 2.5 mV)
Digital output
range
Analog input voltage (V)
0 2.5 5 7.5 10 10.11
Unsigned value
(0 ~ 4047)
0 1000 2000 3000 4000 4047
Signed value
(-2000 ~ 2047)
-2000 -1000 0 1000 2000 2047
Precise value
(0 ~ 1011)
0 250 500 750 1000 1011
Percentile value
(0 ~ 1011)
0 250 500 750 1000 1011
