Chapter 4 RTD Input Module (XBF-RD04A, XBF-RD01A)
4.13 Special Module Monitoring
Run Special Module Monitoring by selecting [On-Line] -> [Connect] and [Monitor] -> [Special Module
Monitoring]. If the status is not [On-Line], [Special Module Monitoring] menu will not be activated.
Remark
1) If the program is not displayed normally because of insufficient system resource, you may start
XG5000 again after close the program and other applications.
2) I/O parameters those are specified in the state of [Special Module Monitoring] menu are temporarily
set up for the test. They will be disappeared when the [Special Module Monitoring] is finished.
3) Testing of [Special Module Monitoring] is the way to test the analog output module. It can test the
module without a sequence program.
4.13.1 How to use special module monitoring
(1) Start of [Special Module Monitoring]

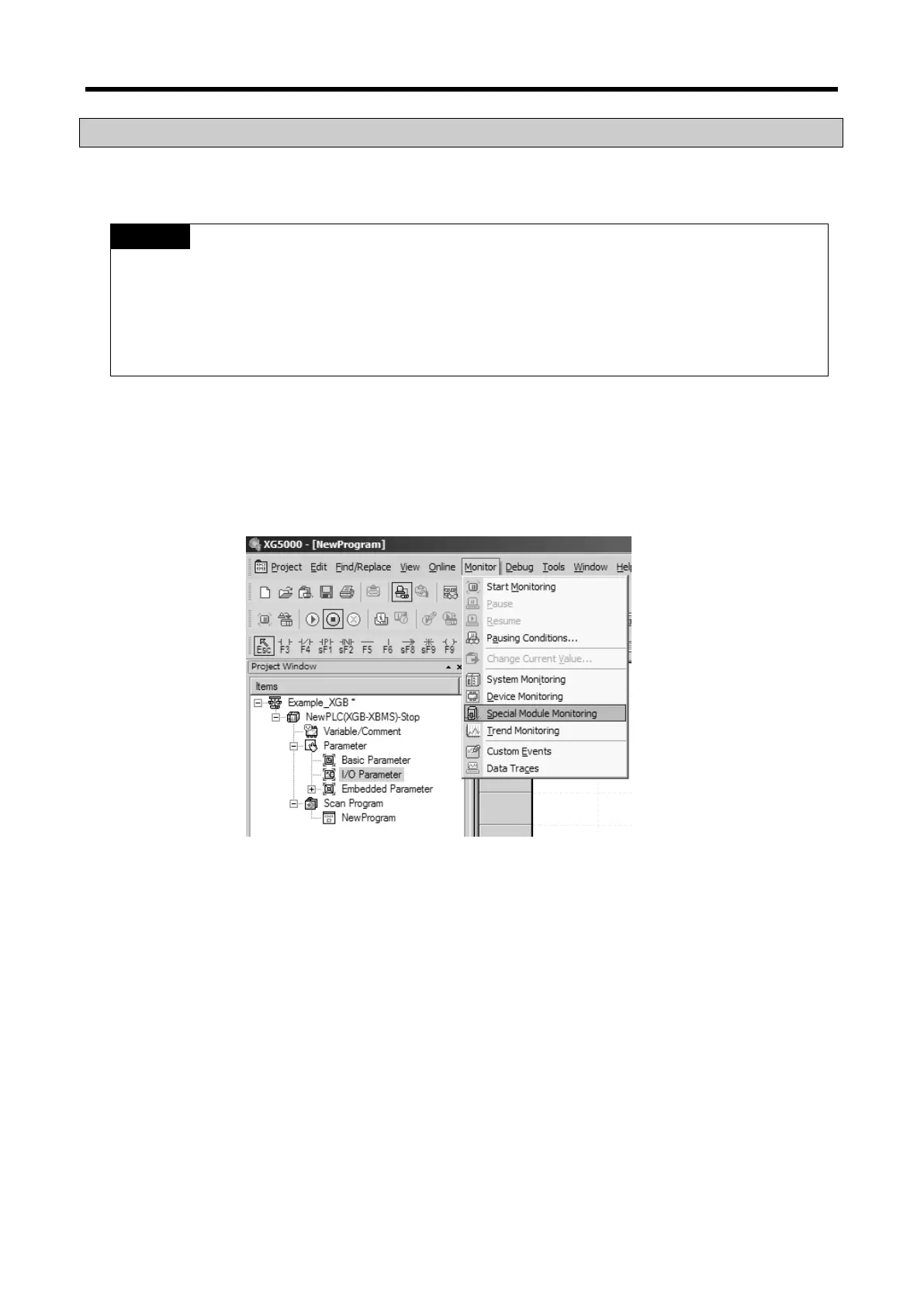

Go through [Online]  [Connect] and [Monitor]  [Special module Monitoring] to start. If the
status is not online, [Special Module Monitoring] menu will not be activated.
