Chapter 3 Analog Output Module (XBF-DV04A, XBF-DC04A, XBF-DC04B)
3 - 11

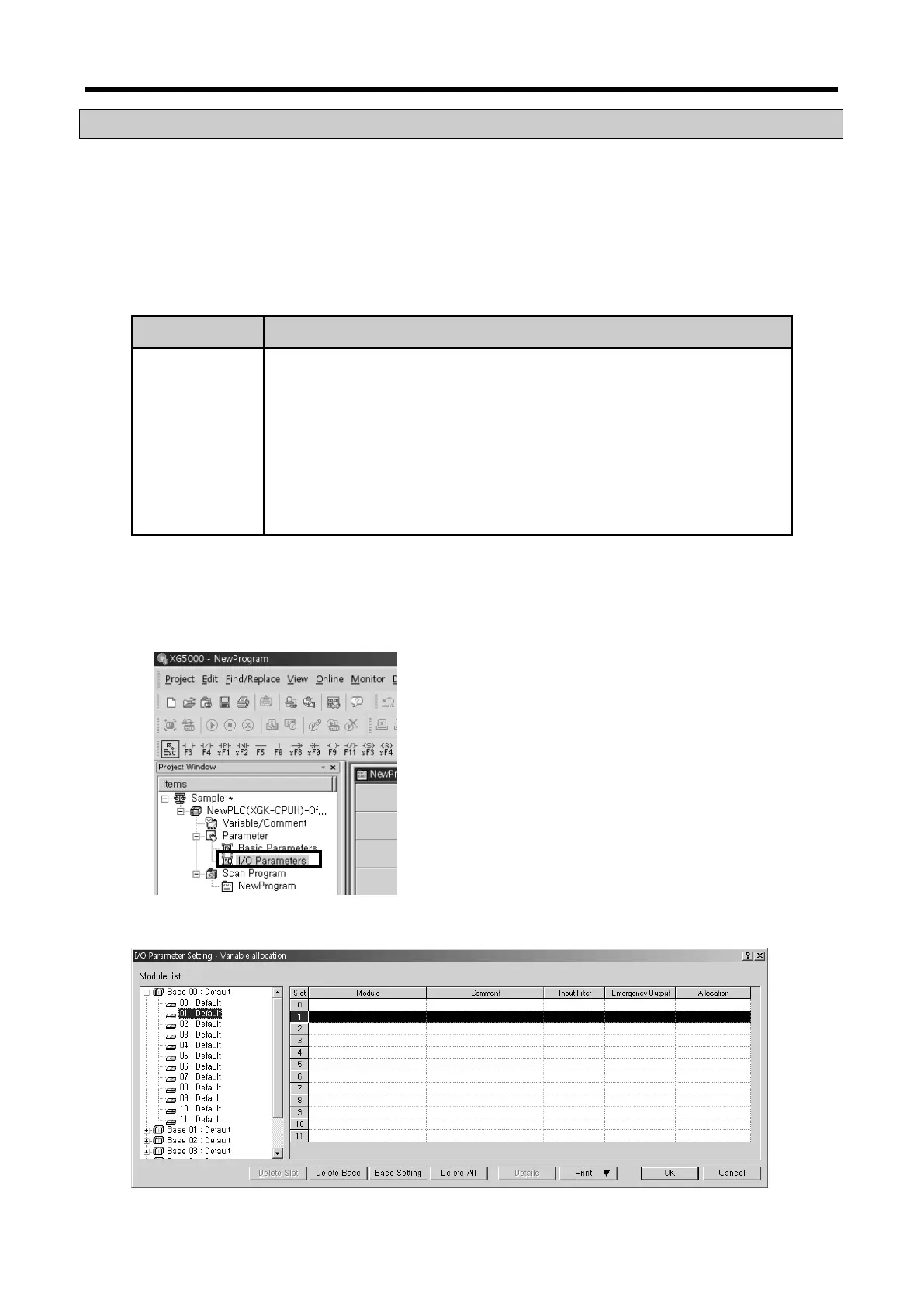

3.9 Operation Parameter Setting
You can specify operation parameters of the analog output module through [I/O parameters] menu in
XG5000.
(1) Setting items
For the user’s convenience, XG5000 provides GUI (Graphical User Interface) for parameters setting of
analog voltage/current output module.
Followings are available through [I/O parameters] on the XG5000 project window.
Item
Details
[I/O Parameters]
(1) It specifies the following items for the module operation.
- Channel Enable/Disable
- Analog output range
- Input type
- Channel output type
(2) After the parameters that user specified in XG5000 are downloaded,
they will be saved to a flash memory in the CPU unit..
(2) How to use [I/O Parameters] menu
(a) Run XG5000 to create a project. (Refer to XG5000 program manual for details on how to create
the project)
(b) Double-click [I/O Parameters] on the project window.
(c) Click the slot of the base that contains analog output module in the [I/O Parameter Setting] window.
In the example, the analog output module is contained in the slot 1.
