LSIS XBF-AD04A User Manual

XGB Analog edition manual
2 - 4

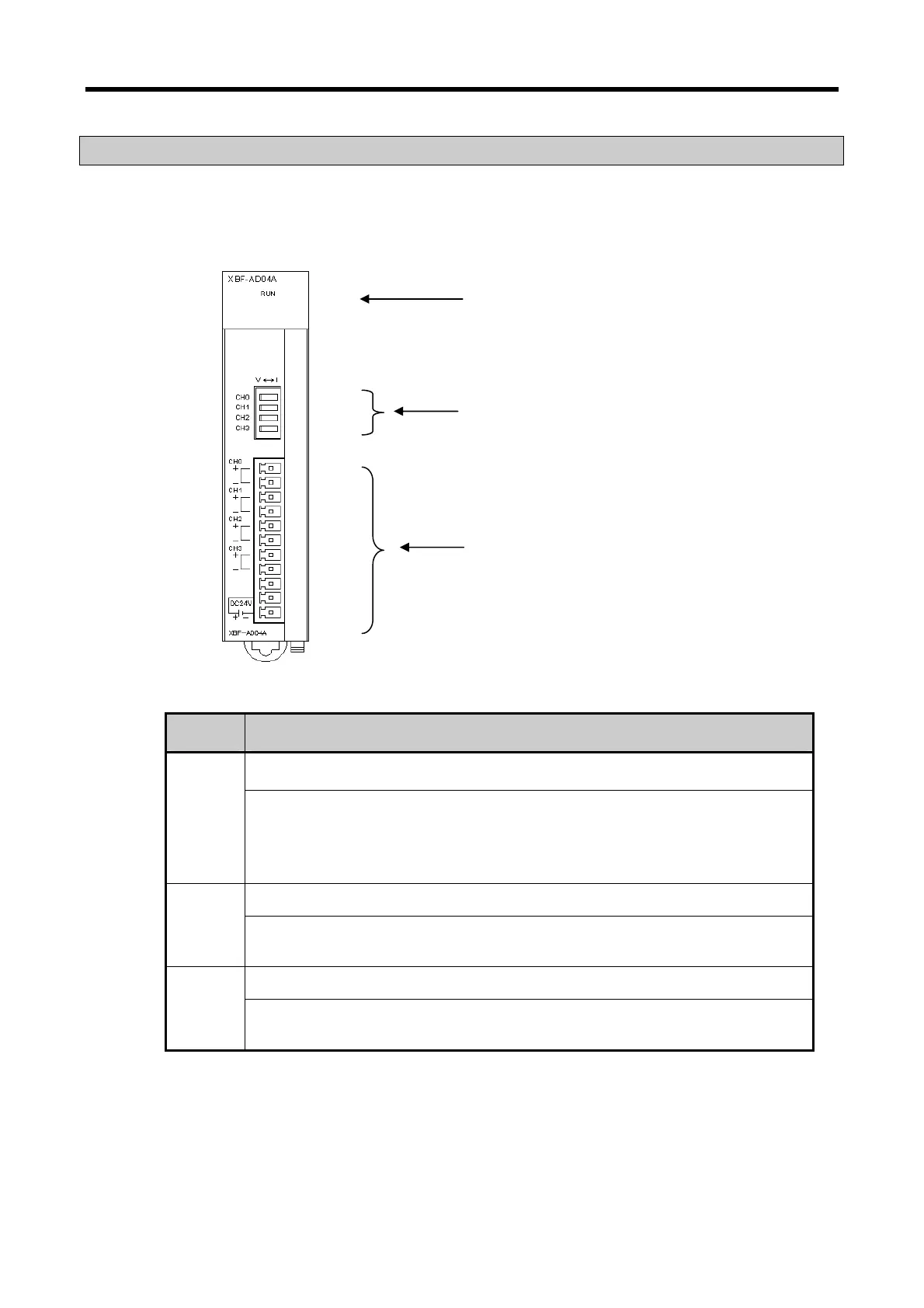

2.3 Name of part and function
Respective designations of the parts are as described below.
No. Description
①
RUN LED
▪ Displays the operation status of XBF-AD04A
On: Operation normal
Flickering: Error occurs (page 12-30)
Off: Module error
②
Terminal block
▪ Analog input terminal, whose respective channels can be connected with
external devices.
③
Voltage/Current selection switch
▪ Switch for voltage and current selection of analog input
①
②
③
