Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)
5.3.4 Average function
(1) Time average
It accumulates temperature conversion values of a selected channel and displays the average
of the total sum in digital data.
Setting range of average time = 400 ~ 64000 [ms]
Frequency of average process for a preset time can be calculated as follows.
ms
ms
50 ×
=
used channel of No.
time Average
[times]Frequency Process Average
(2) Averaged frequency
It accumulates temperature conversion values of a selected channel as many as frequency and
displays the average of the total sum in digital data.
Setting range of average frequency = 2 ~ 64000 [times]
Average process interval of channel used can be calculated as follows
][50][ msms ××= used channel or No.frequency Averageinterval process Average

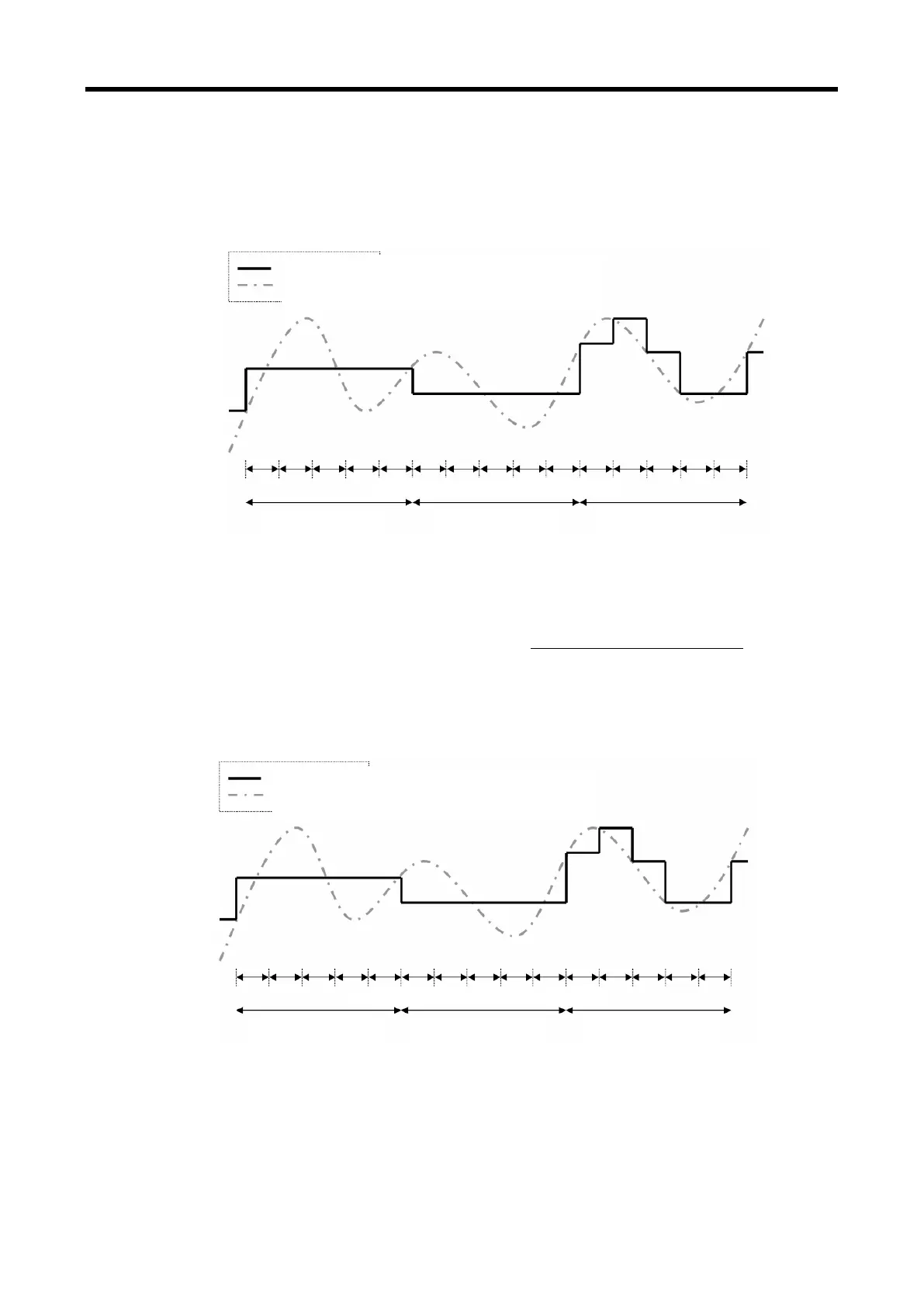

Temperature change after averaging process
Actual temperature change
Temperature change after averaging process
Actual temperature change
5 - 17
