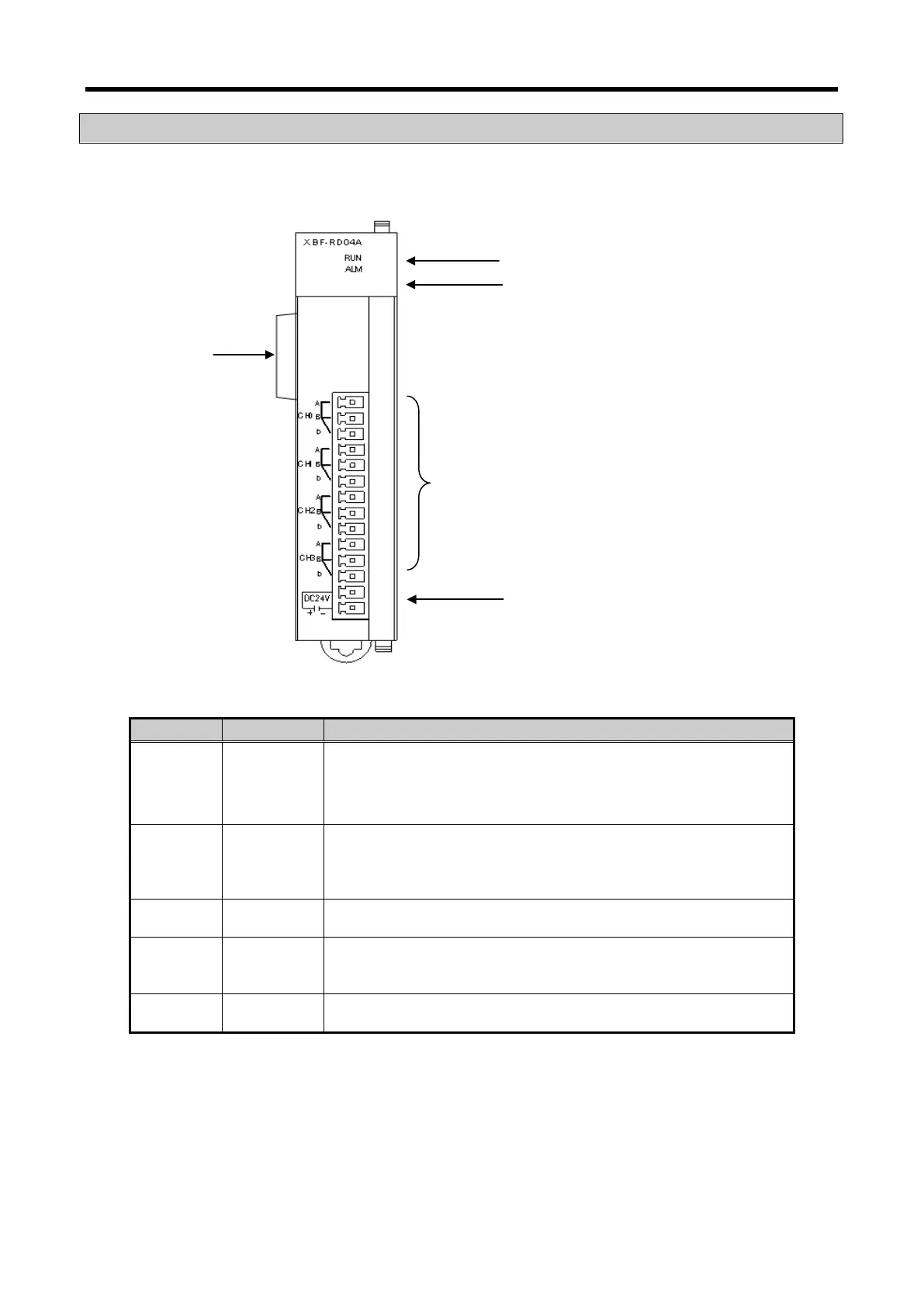

4.3 Part Names and Functions
Here describes part names and functions.
No.
Name
Descriptions
① RUN LED
▶
Displays the hardware operation status of
XBF-RD04A
On: Normal
Flickering: Error (0.2s intervals)
Off: power disconnected, hardware error
② ALM LED
▶
Displays the disconnection status of XBF-RD04A
(Alarm indication LED)
Flickering: Disconnection is detected (1s intervals)
Off: normal operation
③
Terminal
block
▶Terminal block for connecting external RTD temperature sensor
④
External
power supply
terminal
▶Terminal for supplying external DC24V
⑤
Connector for
extension
▶Connection connector for connecting extension module
②
①
④
③
⑤
4 - 4
