Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)

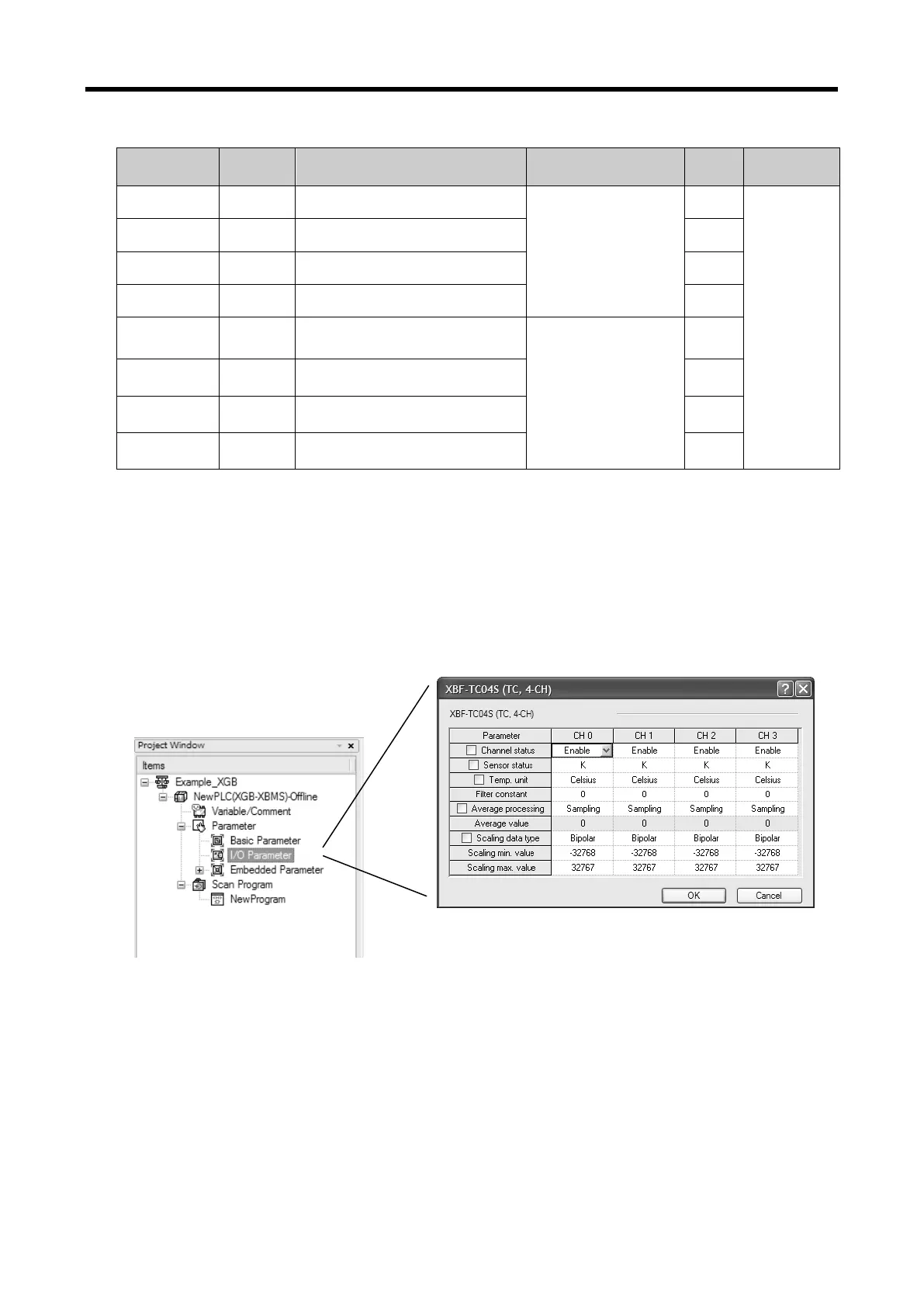

(4) Command sent from XGB main unit (IEC type) to module
(XGB PLC output area, read/write available)
Device
assignment
Type Comment Content R/W
Signal
direction
%UX0.x.464
BIT
CH 0 max./min. searching
Enable/Disable
Min./max. search
On: enable
Off: disable
R/W
CPU↔TC
%UX0.x.465 BIT
CH 1 max./min. searching
Enable/Disable
R/W
%UX0.x.466
BIT
CH 2 max./min. searching
Enable/Disable
R/W
%UX0.x.467
BIT
CH 3 max./min. searching
Enable/Disable
R/W
%UX0.x.472 BIT
CH 0 cold junction
compensation
Enable/Disable
Cold junction
compensation
On: enable
Off: disable
R/W
%UX0.x.473 BIT
CH 1 cold junction
compensation Enable/Disable
R/W
%UX0.x.474
BIT
CH 2 cold junction
compensation Enable/Disable
R/W
%UX0.x.475
BIT
CH 3 cold junction
compensation Enable/Disable
R/W
※ ‘x’ means slot no. where module is installed.
Ex.) %UX0.3.466: no.3 slot,
CH 2 max./min. searching Enable/Disable (bit)
5.6.2 How to set operation parameter
Operation parameter of thermocouple input module can be set by two methods.
(1) Setting operation parameters through [I/O parameter setting] window.
5 - 39
