XGB Analog edition manual

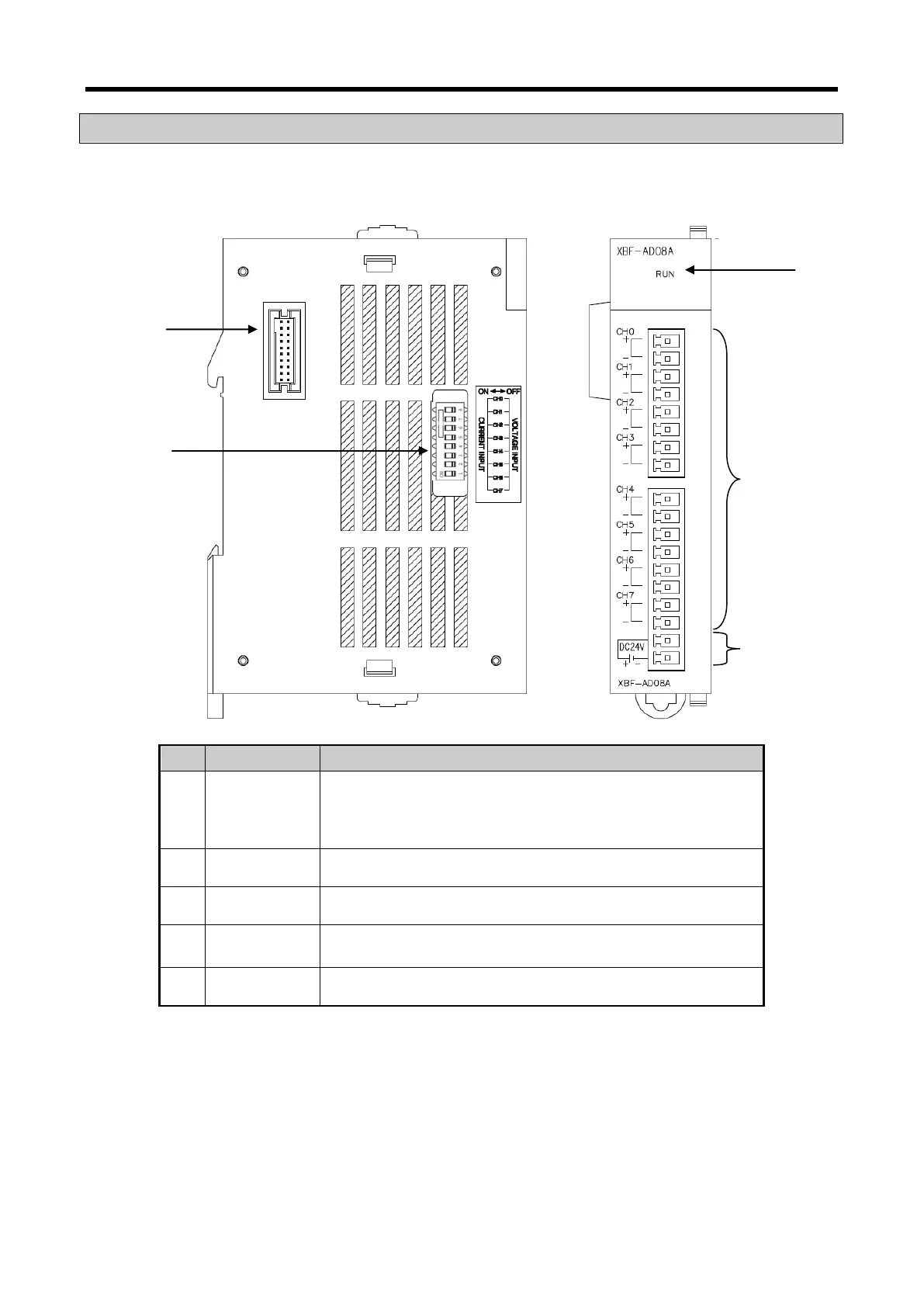

7.3 Name of part and function
Respective designations of the parts are as described below.
No. Name Description
① LED
▶
Displays the operation status of XBF-AD08A
On: Operation normal
Flickering: Error occurs (1s intervals)
Off: power off or module error
②
Voltage/current
selector switch
▶ switch to select voltage/current input of analog input CH0~CH7
③ Terminal block
▶
Wiring terminal block to connect with external device
(Analog input)
④
External power
supply terminal
▶ Terminal for DC24V external power supply
⑤
Connector for
expansion
▶ Connection connector for expansion module
①
③
④
⑤
②
7 - 4
