LSIS XBF-AD04A User Manual

Chapter14 Analog Output Module (XBF-DV04C/XBF-DC04C)

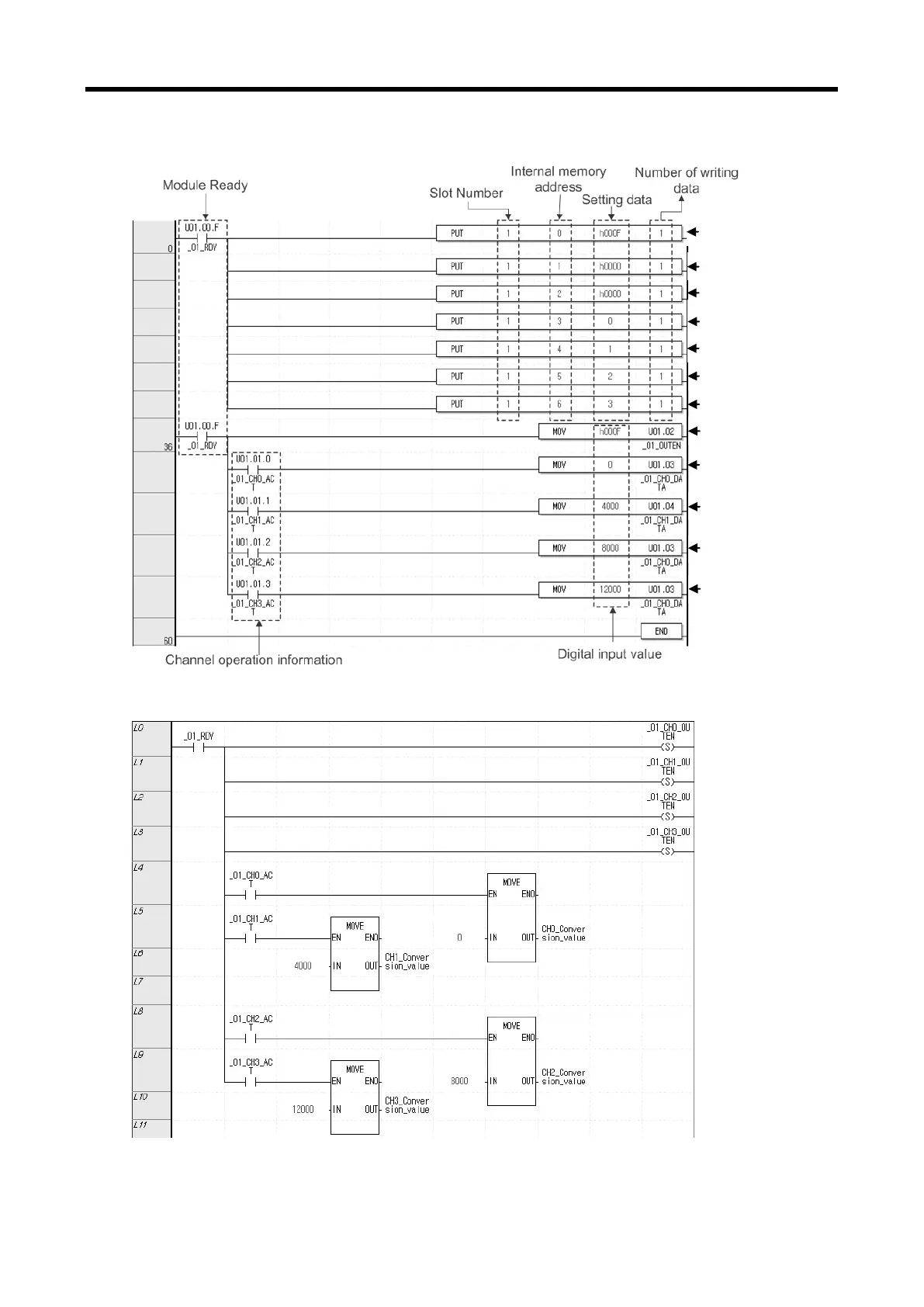

(2) Program example with PUT/GET instruction
(3) Program example using parameter in case of IEC type
Operating CH(0,1,2,3)
Output Voltage range(1~5)
Input data type(0~16000)
CH0 Output status
(Previous value)
CH1 Output status (Min value)
CH2 Output status (Mid value)
CH3 Output status (Max value)
Output Voltage range(1~5)
Output Voltage range(1~5)
Output Voltage range(1~5)
Output Voltage range(1~5)
Output Voltage range(1~5)
14 - 37

LSIS XBF-AD04A Specifications

General

Input Points	4
Type	Analog Input Module
Input Voltage	24V DC
Number of Digital Inputs	0
Number of Digital Outputs	0
Protection Class	IP20
Resolution	12 bit
Operating Temperature	0 to 55°C
Storage Temperature	-25 to 70°C
Humidity	5 to 95% RH
