Chapter 2 Analog Input Module (XBF-AD04A)
2 - 21

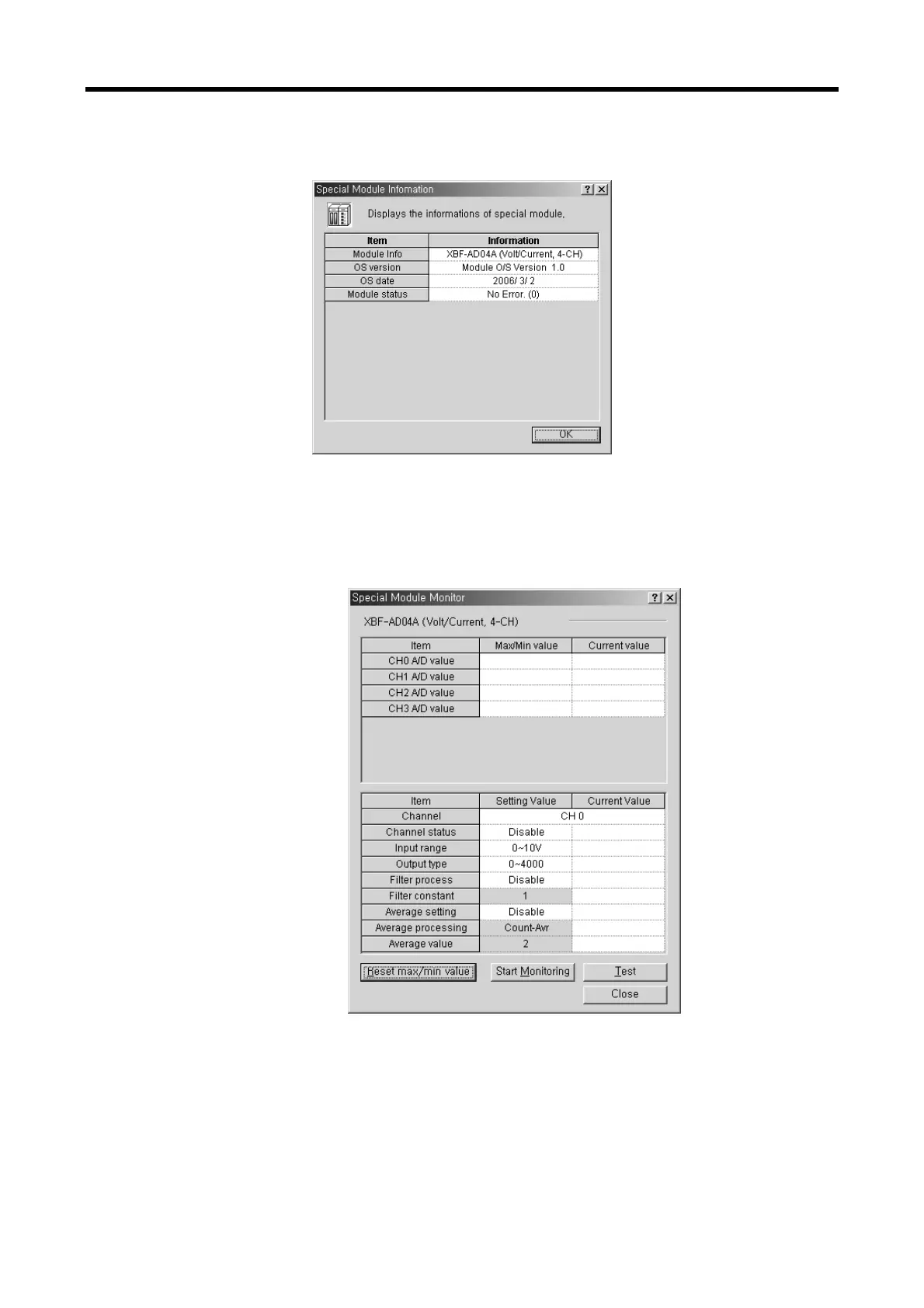

(b) Select Special module and click [Module information] to display the information as below.
(c) Click [Monitor] on the “Special Module” screen in [Special Module List] to display [Special Module
Monitoring] screen as below, where 4 options are available such as [Reset max./min. value], [start
Monitoring], [Test] and [Close]. A/D conversion module’s output value and max./ min. value are
displayed on the monitoring screen at the top of the screen, and parameters items of respective
modules are displayed for individual setting on the test screen at the bottom of the screen.
To Next Page
