Beta Draft Confidential
4-28 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM Logical Ports on Frame-based Modules
Defining ATM UNI DCE/DTE Logical Ports
Congestion Control Attributes
When configuring frame-based cards, select the Congestion Control tab in the Add
Logical Port dialog box (Figure 4-5) and complete the fields as described in
Table 4-11.

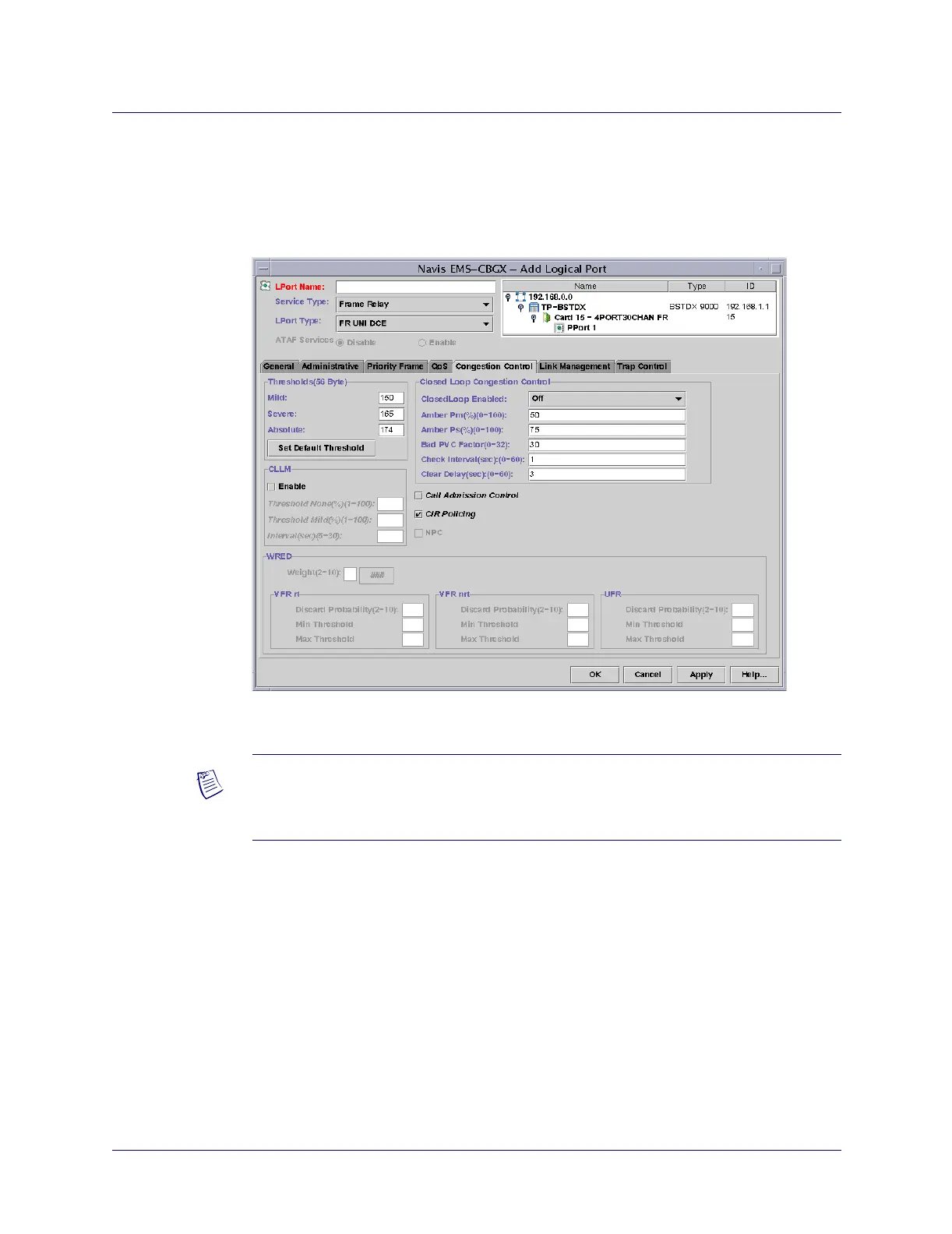

Figure 4-5. Add Logical Port: Congestion Control Tab
Note – Do not exceed the maximum threshold value for each card type. The absolute
congestion threshold cannot be greater than the maximum value allowed for each
logical port.
