Defining a Node Prefix
To define a node prefix:
1. In the Navigation panel, expand the instance node for the switch for which you
want to add an SVC node prefix. The SVC class node appears under the switch
instance node.
2. Expand the SVC class node. The Node Prefixes class node appears under the SVC
node.
3. Right-click on the Node Prefixes class node and select Add from the pop-up
menu. The Add SVC Node Prefix dialog box appears (Figure 17-14).

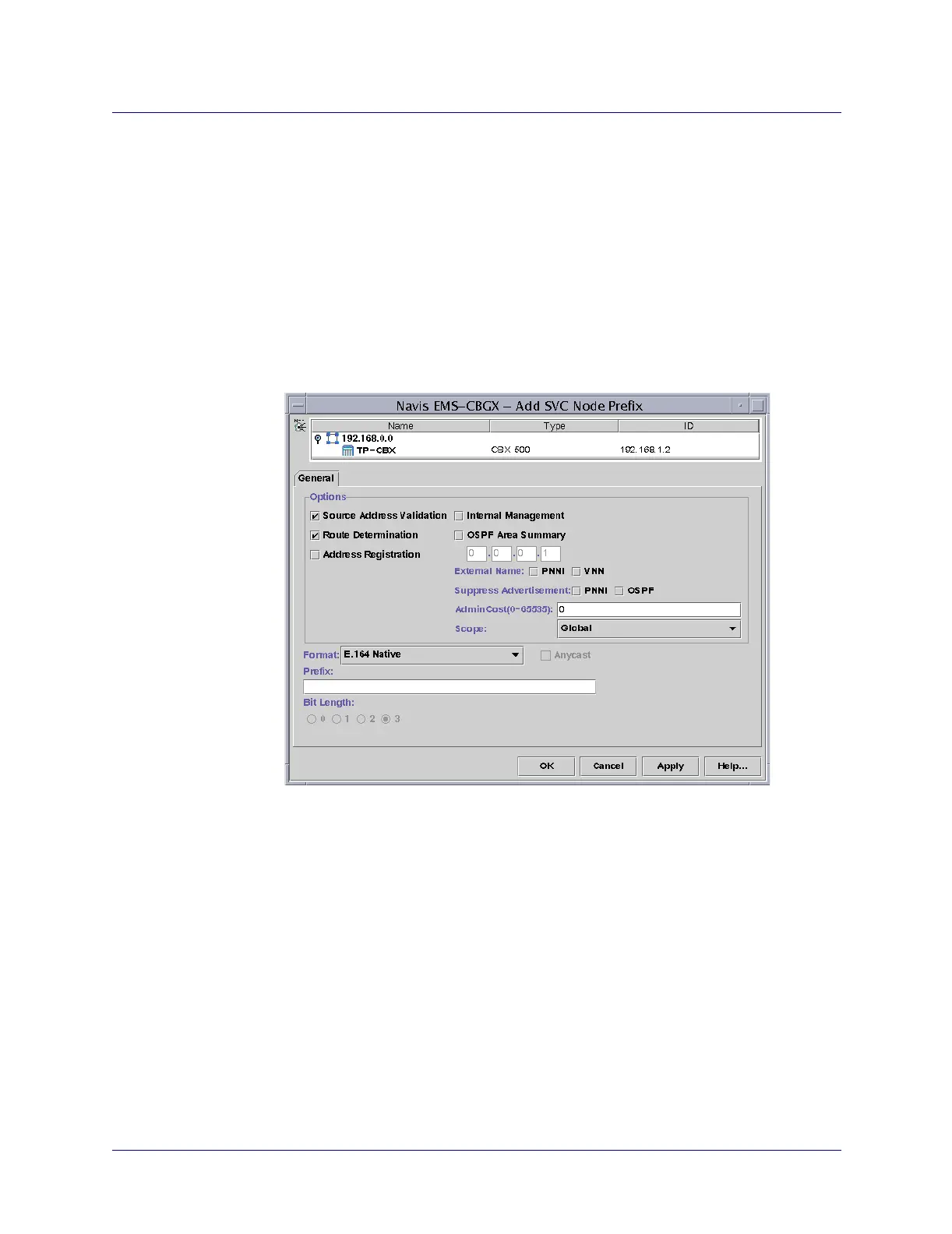

Figure 17-14. Add SVC Node Prefix Dialog Box
4. To define a node prefix for a specific format:
a. See Table 17-9 to select the address format.
b. Select the scope. Organizational scope defines how far into a hierarchical
PNNI domain the switch should advertise this prefix or address. For more
information about PNNI, see Chapter 21, “Configuring PNNI Routing.”
c. Continue with the section that corresponds to the address format you select
(see Table 17-9).
