Beta Draft Confidential
Configuring SPVCs
Defining a PMP SPVC (Offnet Circuit)
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0518-41
2. Choose OK to configure the Offnet PMP PVC leaf and close the Add
Point-to-Multipoint PVC Leaf dialog box.
Modifying an Offnet PMP Leaf
To modify an Offnet PMP Leaf object:
1. In the Navigational Panel, expand the Circuits node.
2. Expand the Offnet PMP Roots node.
3. Expand the desired Offnet PMP Root node.
4. Expand the Offnet PMP Leaves node and select the desired Offnet PMP Leaf.
5. Perform one of the following:
• Select Modify from the Actions menu.
• Choose the Modify button from the toolbar.
• Right-click on the PMP Soft Leaf node and select Modify from the pop-up
menu.
The Modify Point-to-Multipoint PVC Leaf dialog box appears.

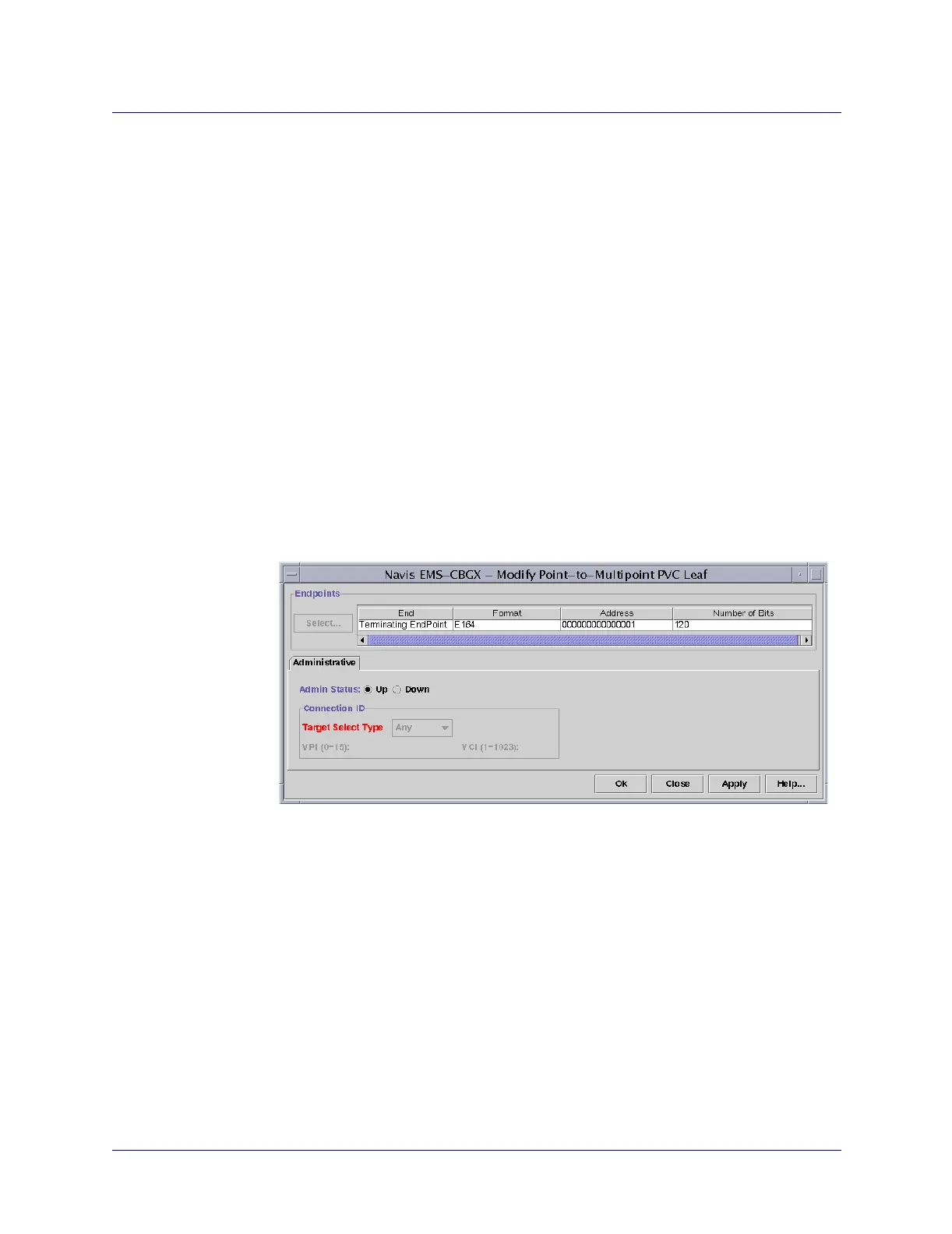

Figure 18-19. Modify Point-to-Multipoint PVC Leaf Dialog Box
6. Modify the desired parameters. See Table 18-11 on page 18-40 for descriptions of
the fields.
7. Choose OK to save the changes and close the Modify Point-to-Multipoint PVC
Leaf dialog box.
Deleting an Offnet PMP Leaf
To delete an Offnet PMP leaf:
1. In the Navigational Panel, expand the Circuits node.
2. Expand the Offnet PMP Roots node.
3. Expand the desired Offnet PMP Root node.
