Lucent Technologies CBX 500 - Figure 18-15. Add Offnet Point-To-Multipoint PVC Root: Traffic Type Tab

Beta Draft Confidential
Configuring SPVCs
Defining a PMP SPVC (Offnet Circuit)
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0518-35
3. When the Administrative attributes have been configured, continue with the
Traffic Type attributes.
Traffic Type Attributes
To configure offnet PMP PVC root traffic type attributes:
1. In the Add Offnet Point-to-Multipoint PVC Root dialog box, select the Traffic
Type tab (Figure 18-15).

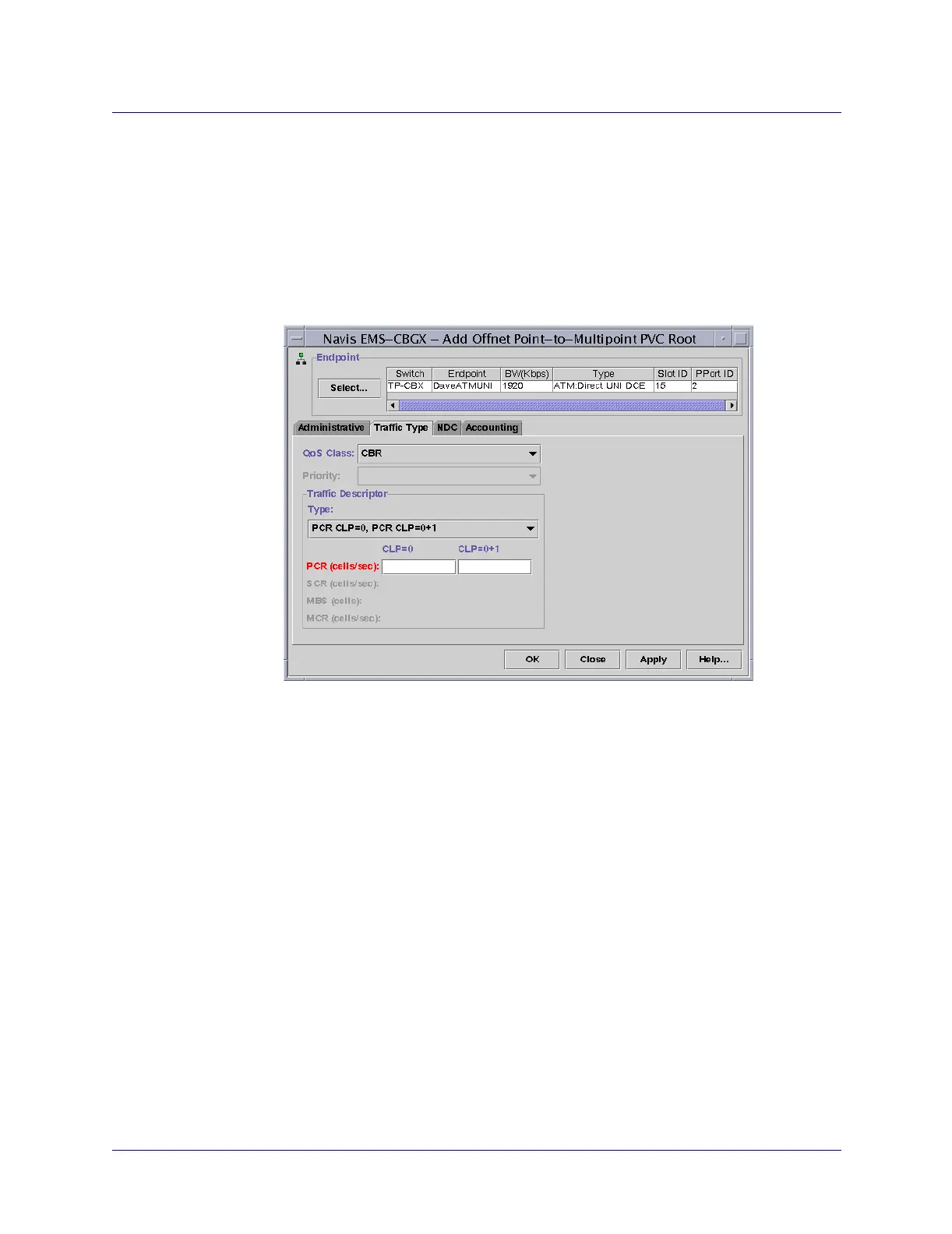

Figure 18-15. Add Offnet Point-to-Multipoint PVC Root: Traffic Type Tab
2. Complete the Traffic Type tab fields in the Add Offnet Point-to-Multipoint PVC
Root dialog box as described in Table 18-10.
