Beta Draft Confidential
Configuring Management Paths
Using MPVCs
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0511-5

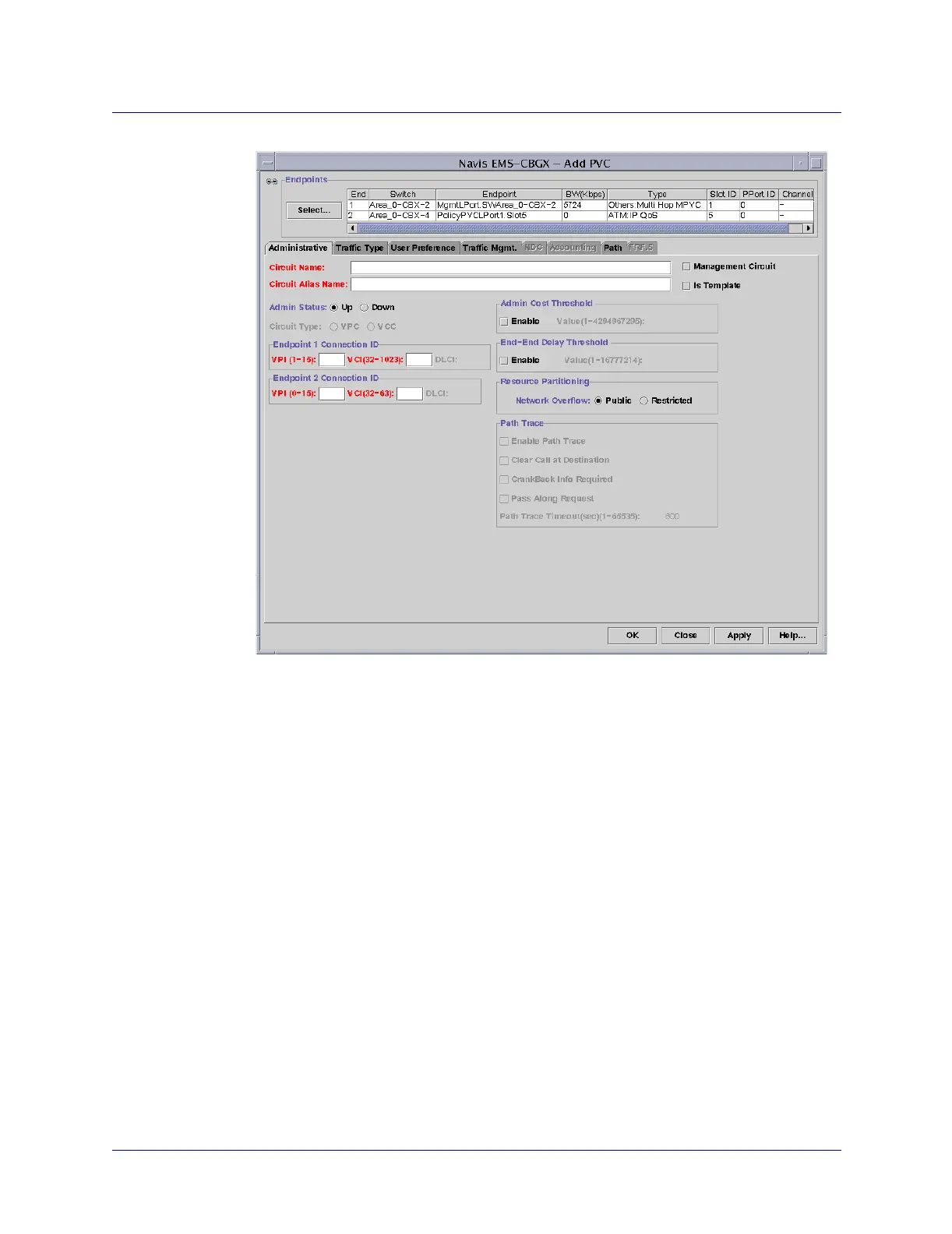

Figure 11-2. Add PVC Dialog Box (MPVC)
6. In the Add PVC dialog box, choose the Select button in the Endpoints field.
The Select Endpoints dialog box will display with the management LPort selected
as Endpoint 1.
7. Select the name of the switch where Endpoint 2 resides.
8. Select the name of the logical port for Endpoint 2.
9. Choose OK to return to the Add PVC dialog box.
