Beta Draft Confidential
9-581/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM Over MPLS Gateway Solution on CBX 3500
Configuring a Layer 2 Tunnel Over MPLS Core Network
Layer 2 Tunnel PNNI Attributes
If this tunnel is being configured for PNNI, select the PNNI tab (Figure 9-28) and
complete the fields as described in Table 9-24.

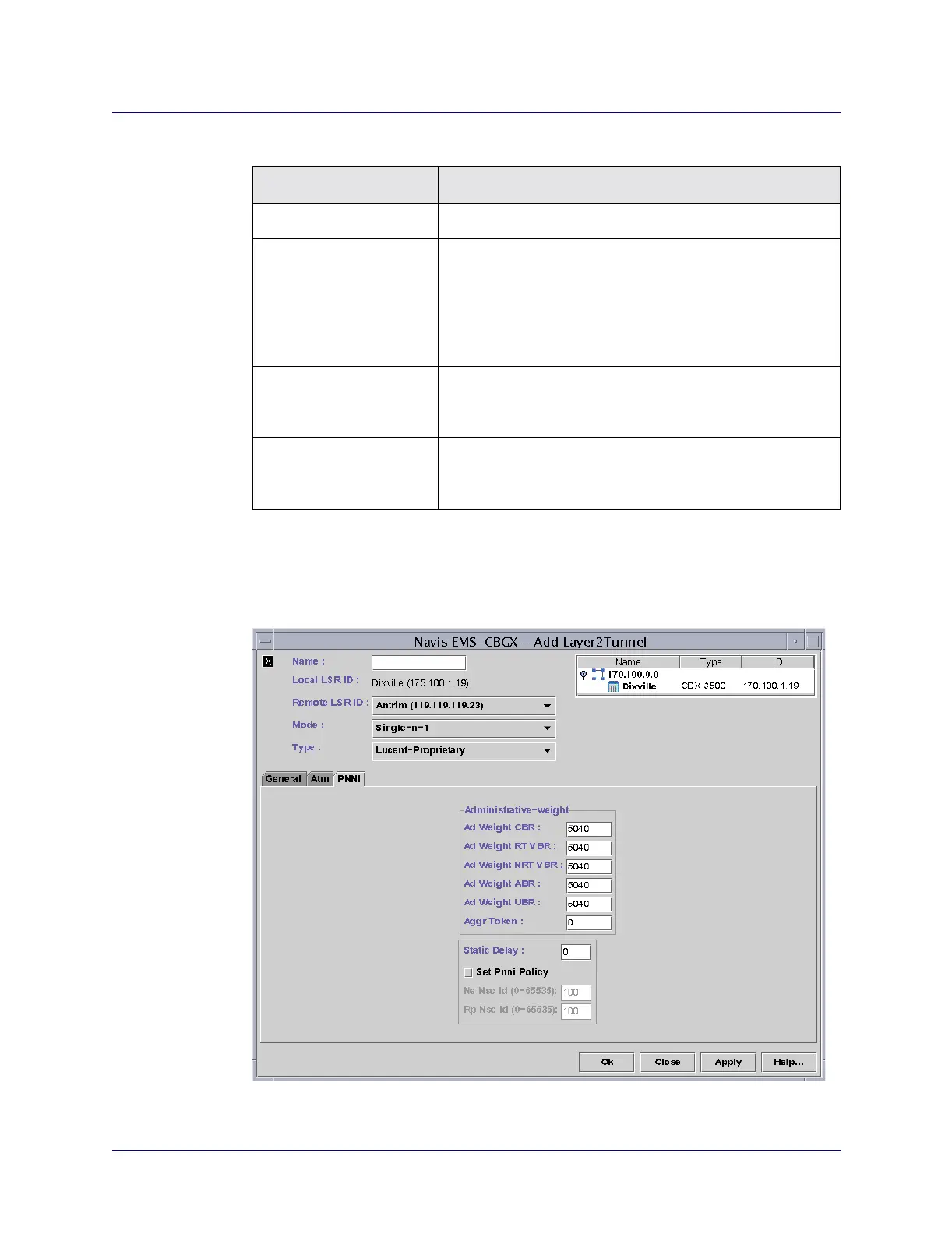

Figure 9-28. Add Layer2 Tunnel: PNNI Tab
State Hold Down Timer Not supported in this release.
Enable IP Routing Enable IP routing for the trunk by selecting the check box. If
disabled (unchecked), the trunk is reserved for use by VNN.
Also activates the Trunk IP Area ID and Type of Service
(ToS) Zero Metric fields. See the IP Services Configuration
Guide for CBX 3500, CBX 500, and B-STDX 9000 for more
information.
IP Area The OSPF Area ID used by IP Services. See the IP Services
Configuration Guide for CBX 3500, CBX 500, and
B-STDX 9000 for more information.
IP Cost (0-max) Enter a value between 0 and 65535 (the default value is 100).
This value specifies the IP cost. The lowest cost has the
highest priority for routing.
Table 9-23. Add Layer 2 Tunnel: VNN Tab Fields (Continued)
Field Description
