Configuring Trunks
Working With Trunks
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/057-21

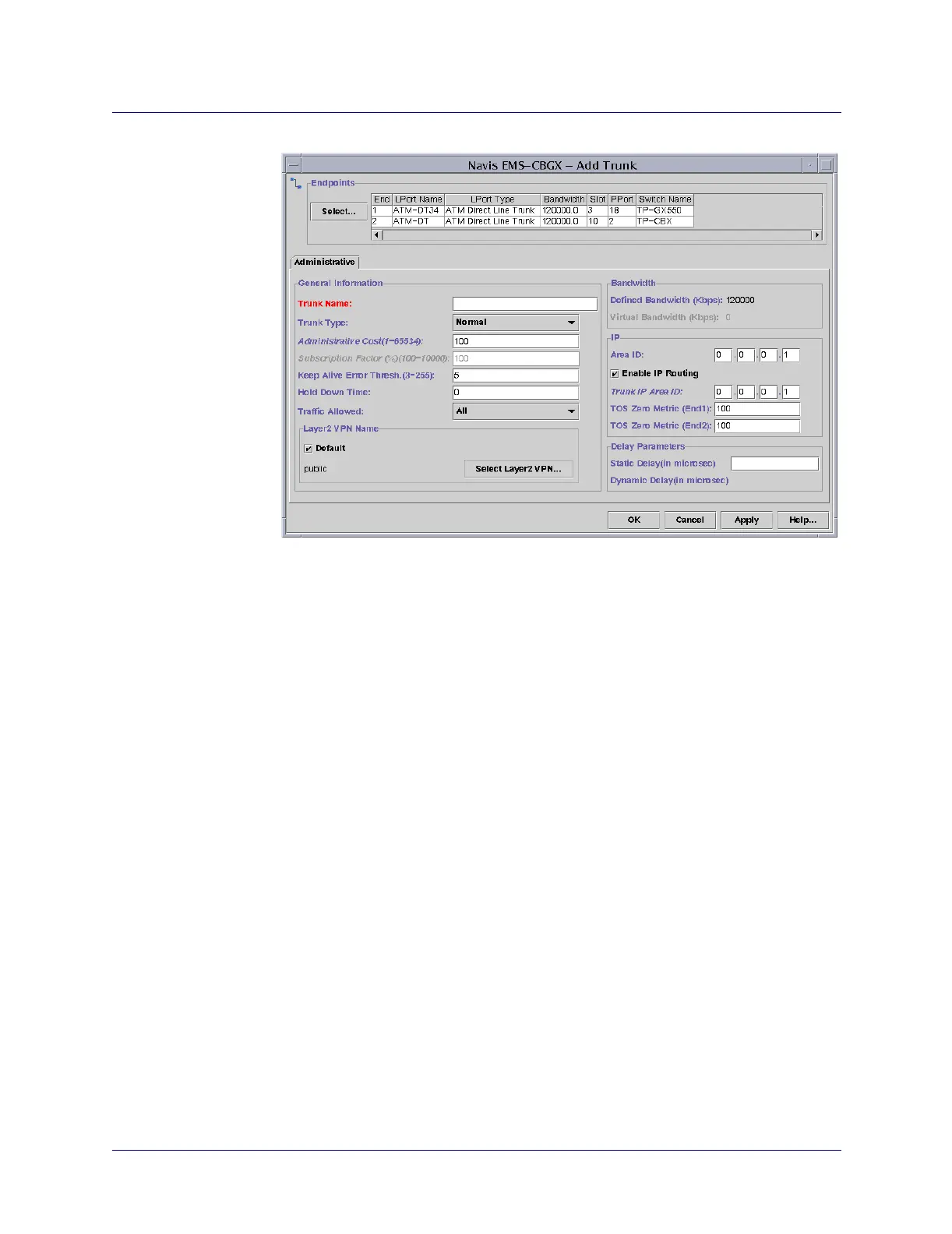

Figure 7-7. Add Trunk Dialog Box with Defined LPort Parameters
9. Complete the fields in the Administrative tab in the Add Trunk dialog box as
described in Table 7-3.
