Configuring ATM Over MPLS Gateway Solution on CBX 3500
Configuring a Layer 2 Tunnel Over MPLS Core Network
4. Right-click on MPLS Tunnels and select Add. The Add Tunnel dialog box
appears (Figure 9-21).

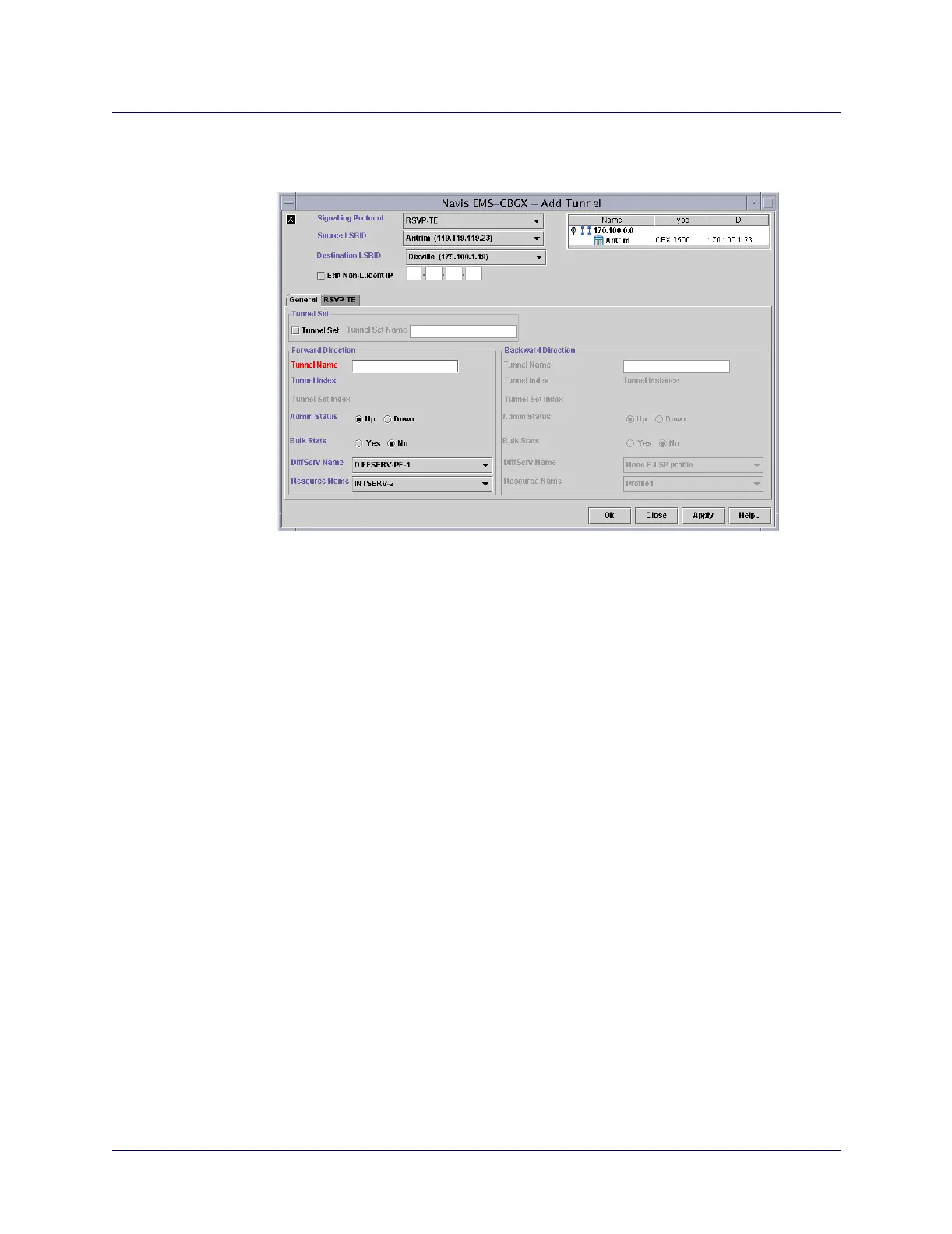

Figure 9-21. Add Tunnel: General Tab
5. In the Signalling Protocol field, select RSVP-TE from the pull-down list.
6. In the Source LSRID field, from the pull-down list, select the Lucent switch that
will be the data source for this tunnel.
7. In the Destination LSRID field, from the pull-down list, select the destination
switch for this tunnel. This destination switch can be a Lucent switch or other
vendor equipment.
8. Leave the Edit Non-Lucent IP checkbox unchecked; it’s not available for this
release.
9. Complete the General attributes as described in “General Tab Attributes” on
page 9-45.
10. When you complete the configuration, choose OK to save the changes and close
the dialog box.
