11-121/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring Management Paths
Using MSPVCs
Defining the MSPVC Connection
To configure the MSPVC connection:
1. Open the object tree for a switch.
2. Expand the Circuits class node.
3. Select the Offnet Circuits class node and perform one of the following:
• Select Add from the Actions menu.
• Choose the Add button from the toolbar.
• Right-click the Offnet Circuits class node and select Add from the pop-up
menu.
The Add Offnet Circuit dialog box appears (Figure 11-4).

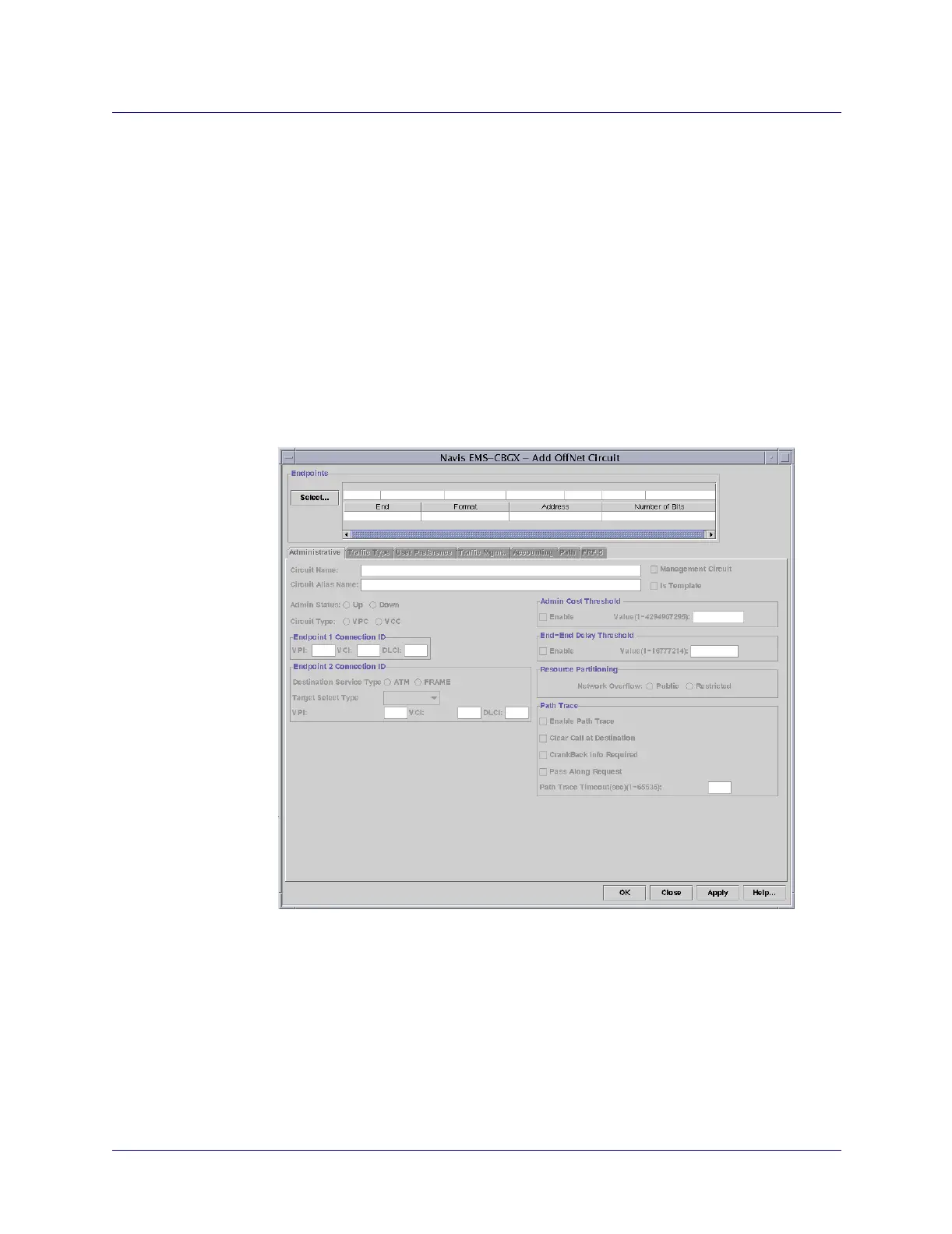

Figure 11-4. Add Offnet Circuit Dialog Box
4. In the Add Offnet Circuit dialog box, choose the Select button in the Endpoints
field.
The Offnet EndPoint Selection dialog box appears (Figure 11-5).
