Configuring ATM PVCs
Configuring Frame Relay-to-ATM Interworking Circuits
Traffic Type Attributes
Select the Traffic Type tab in the Add PVC dialog box to specify TD settings for
forward and reverse traffic. In the example shown in Figure 10-12, configure the fields
beneath Forward (Endpoint 1 –> Endpoint 2); then configure the fields beneath
Reverse (Endpoint 2 –> Endpoint 1). The attributes that appear depend upon the
endpoint type, either Frame Relay or ATM.

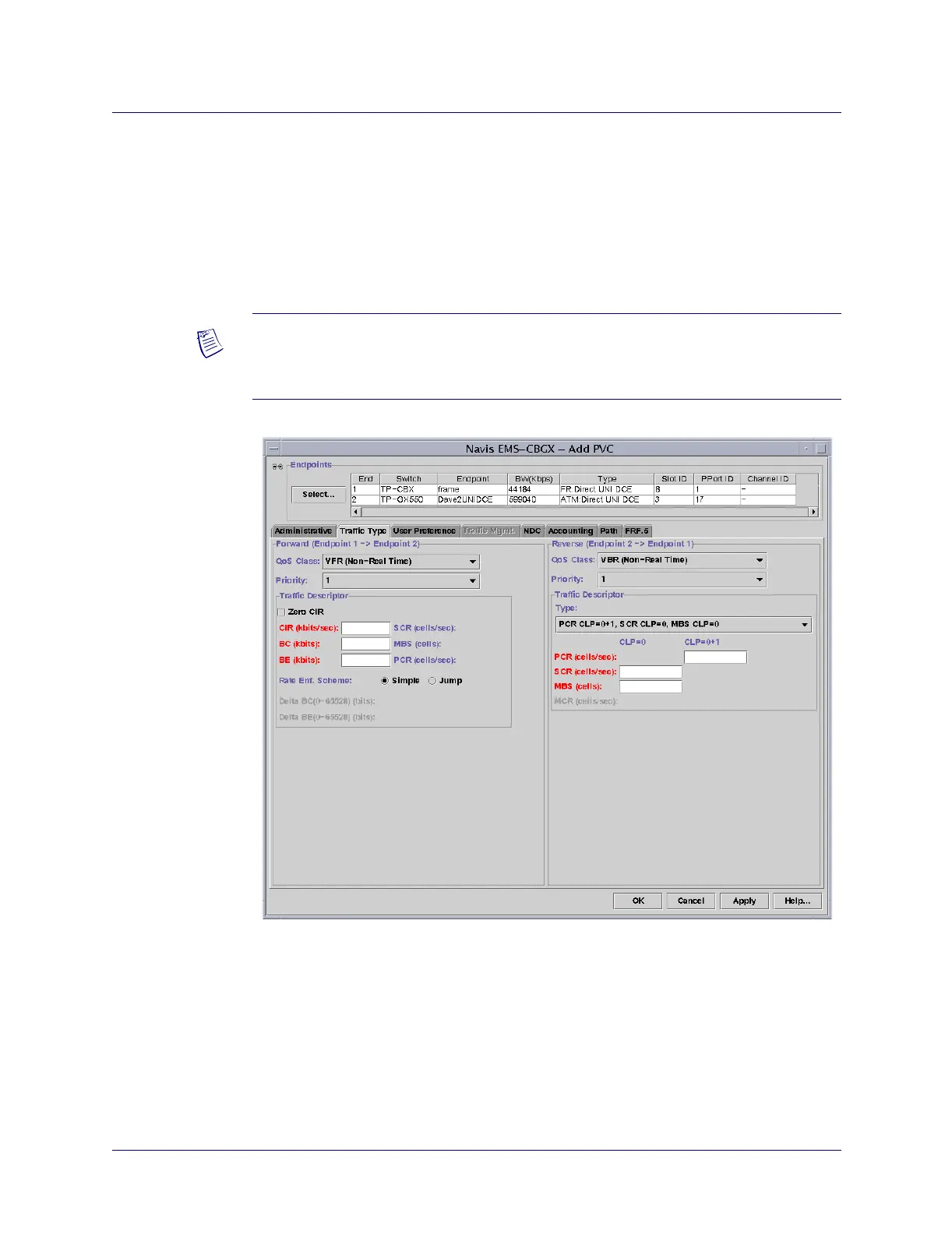

Figure 10-12. Add PVC: Traffic Type Tab (FR-ATM)
Note – You must configure Traffic Type attributes before choosing OK in the Add
PVC dialog box to save the circuit configuration. Otherwise, the default values for
CIR, Bc, and Be will generate an error message.
