Lucent Technologies MAX TNT - Figure B-13 ADSL 50-Pin Telco-To-Quadruple DB-37 Cable; Table B-21 SDSL Cable Pinouts

Cabling and Connector Specifications
SDSL cable specifications
MAX TNT Hardware Installation Guide B-27

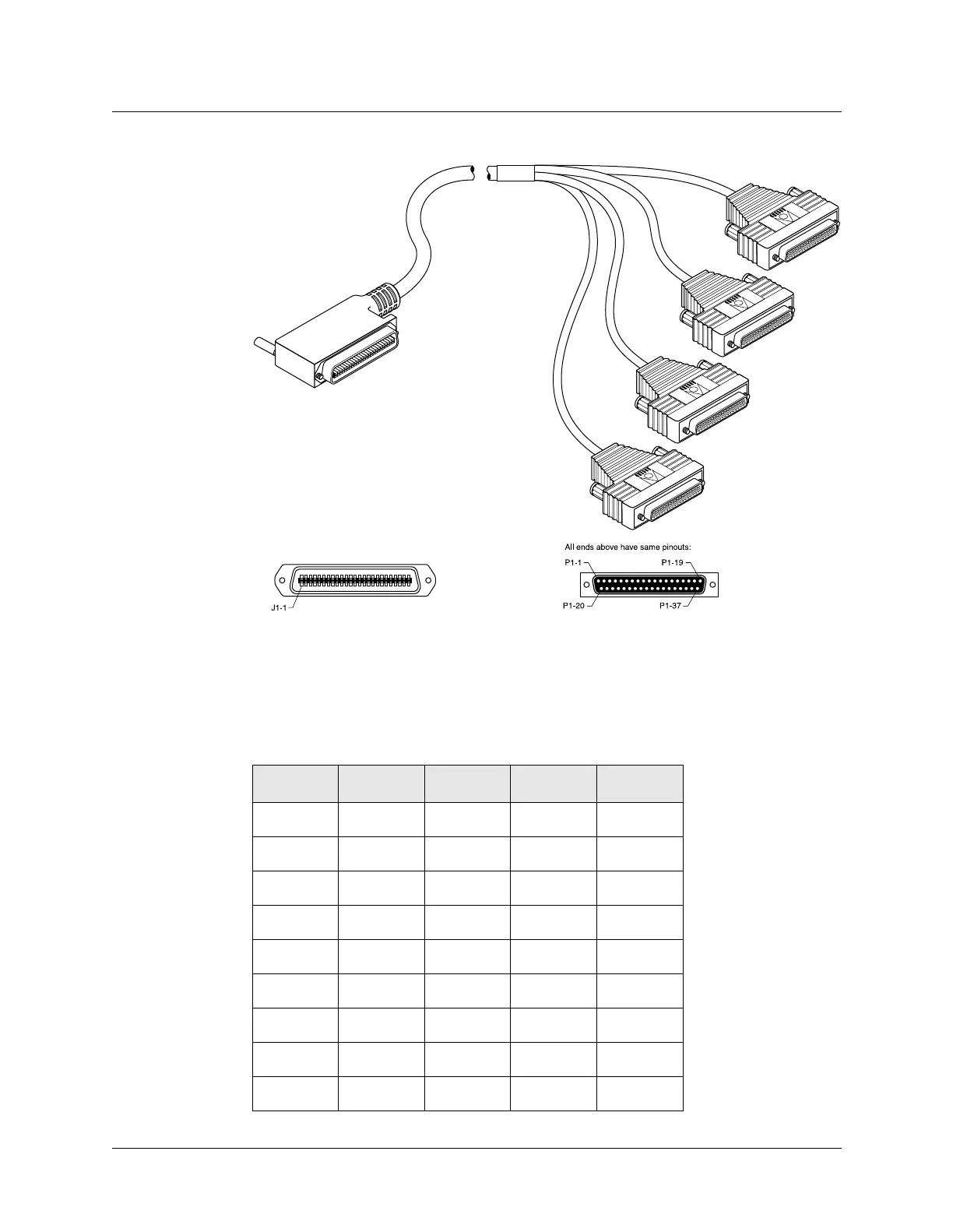

Figure B-13. ADSL 50-pin telco-to-quadruple DB-37 cable
SDSL cable specifications
Figure B-14 and Table B-21 show the pinouts for the 50-pin telco-to-dual-DB-37 SDSL cable.
Table B-21. SDSL cable pinouts
Pair P1 Pin P2 Pin J1 Pin Signal
136 1Tip1
1 37 26 Ring 1
218 2Tip 2
2 19 27 Ring 2
316 3Tip 3
3 17 28 Ring 3
414 4Tip 4
4 15 29 Ring 4
512 5Tip 5
