3-6 MAX TNT Hardware Installation Gulide
Installing a MAX TNT Chassis
Installing a MAX TNT exhaust shield
Installing a MAX TNT exhaust shield
You can install an exhaust shield on a rack-mounted MAX TNT unit. The exhaust shield
redirects hot air from the unit so that it is not being blown into adjacent units. Figure 3-4
illustrates how to install the exhaust shield in a rack.
To order the shield from your Lucent reseller, ask for product code TNT-SP-SHIELD.

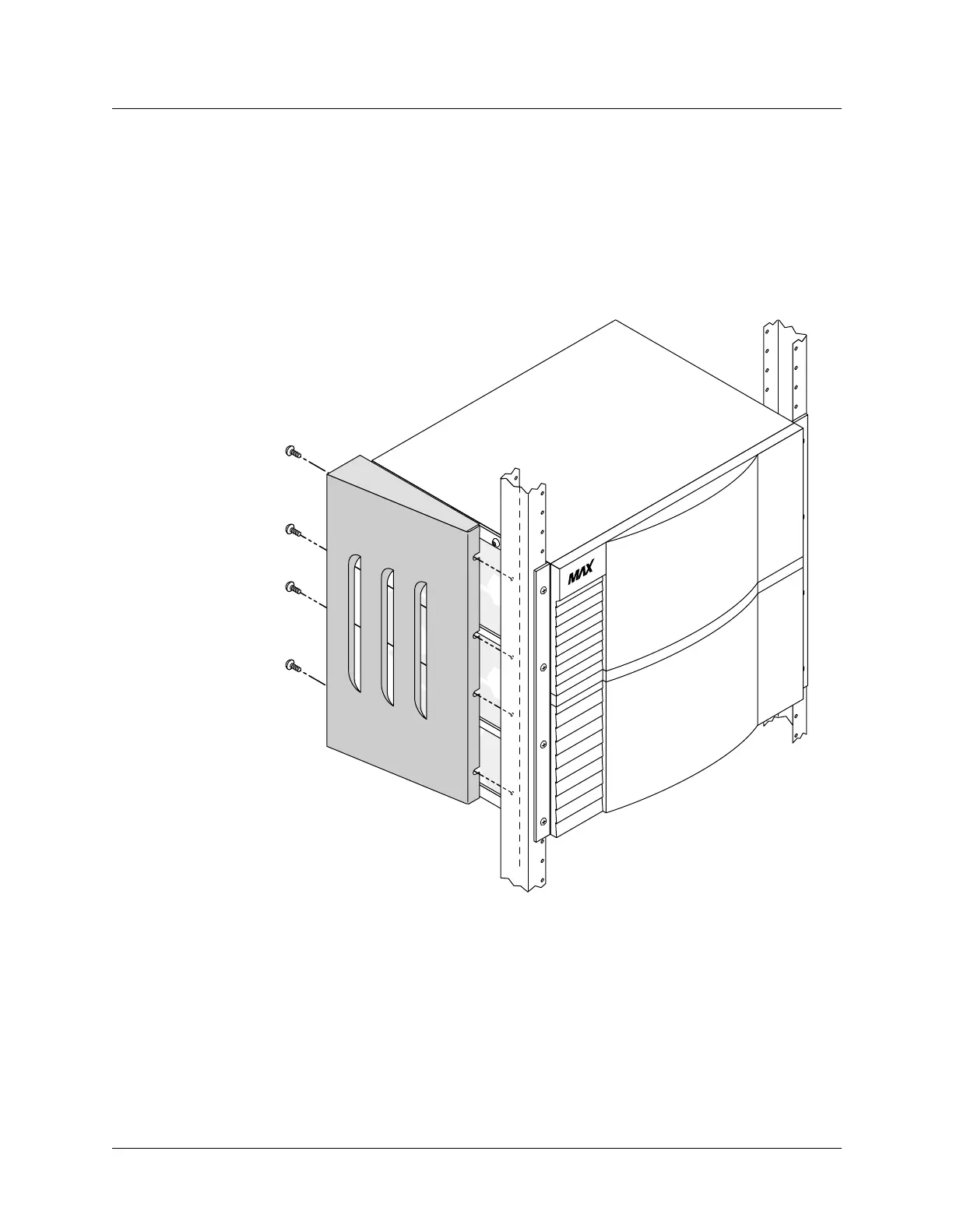

Figure 3-4. Exhaust shield installed in a rack
