Slot Card Specifications and Connection Information
Ethernet 3-ND card
MAX TNT Hardware Installation Guide A-15
Ethernet 3-ND card
Ethernet 3-ND (no dongle) slot cards for APX/MAX TNT units have four full-duplex
10/100 megabit (Mb) Ethernet ports. The Ethernet 3-ND slot card is an enhancement of the
Ethernet-3 slot card.
The Ethernet 3-ND slot card has RJ-45 connections, eliminating the need for a dongle. For
more information about installation and configuration of Ethernet connections, see the
APX 8000/MAX TNT/DSLTNT Physical Interface Guide.

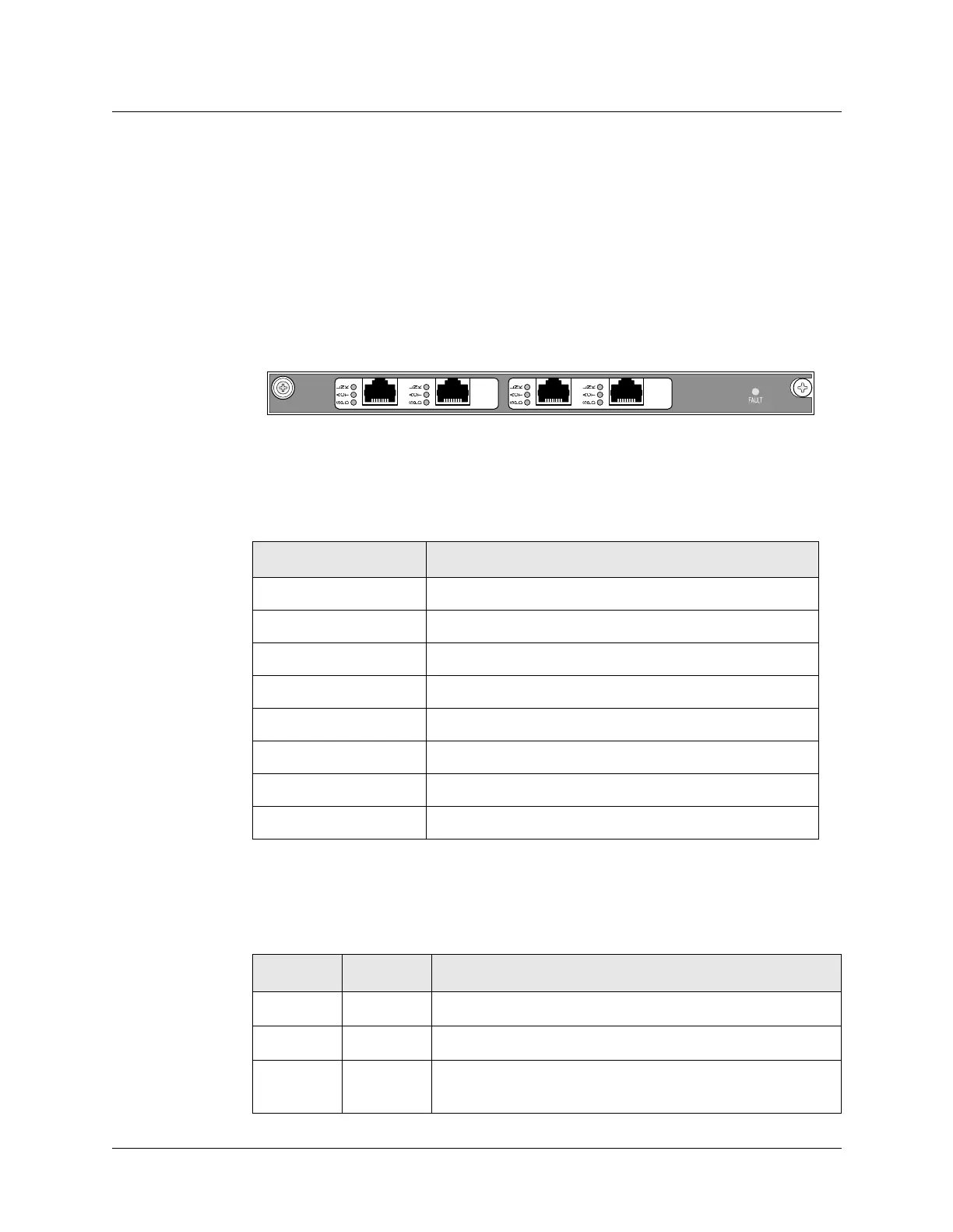

Figure A-11 shows the Ethernet 3-ND card.
Figure A-11. Ethernet 3-ND slot card
Specifications
Table A-11 provides the specifications for the Ethernet 3-ND card.
Status lights
Table A-12 explains the Ethernet 3-ND slot card status lights (LEDs).
Table A-11. Ethernet 3-ND slot card specifications
Category Specification
Power requirements 35W
Interfaces per card Four full-duplex
Connector RJ-45
Connector requirements Must meet JIS C 5973
Card dimensions 5.6 inches high by 10.7 inches long (14.2cm by 27cm)
Card weight ~2 pounds (0.9kg)
Operating humidity 0 to 90 percent, noncondensing
Operating temperature 32 to 104° F (0 to 40° C)
Table A-12. Ethernet 3-ND slot card status lights
Light Color Description
LNK Green On indicates link established.
ACT Green On indicates activity (transmission of packets).
SPD Green On indicates activity on 100Mbps port. Off indicates activity
on 10Mbps port.
