Lucent Technologies MAX TNT - Figure B-9 RJ-48 C;DA Crossover Cable; Table B-13 RJ-48 C;DA Crossover Cable Specifications

Cabling and Connector Specifications
E1/PRI interface specifications
MAX TNT Hardware Installation Guide B-13
E1/PRI crossover cable: RJ-48C/DA
Before installing the RJ-48C/DA cable, verify that the WAN interface transmits on pins 1 and
9 and receives on pins 3 and 11. Figure B-9 and Table B-13 show the pinouts.

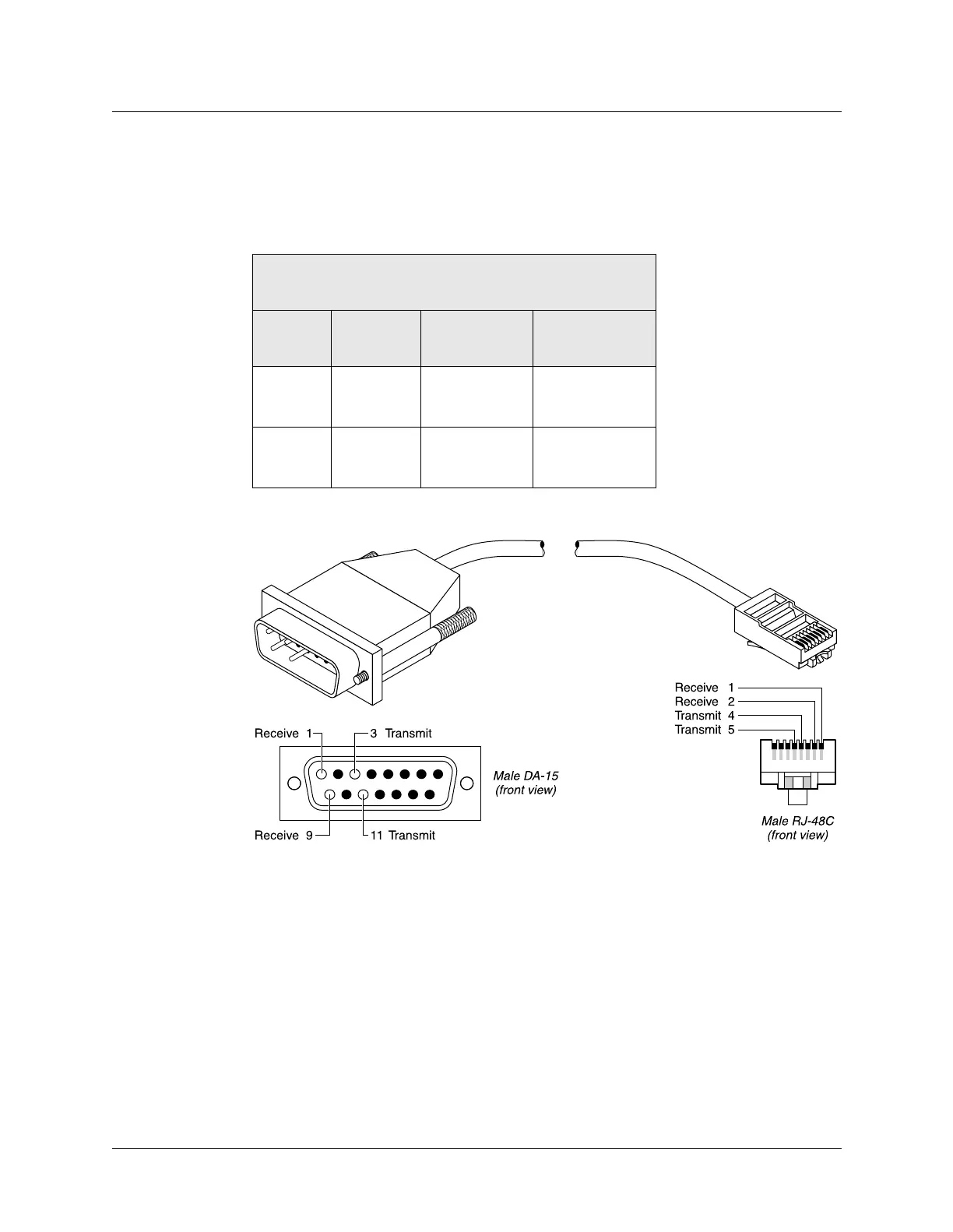

Figure B-9. RJ-48C/DA crossover cable
Table B-13. RJ-48C/DA crossover cable specifications
Model number DA15-S
Part number 2510-0065-001
Pair # Signal Male RJ-48C Male DA-15
(remote)
1 Receive 1
2
1
9
2Transmit5
4
3
11
