B-12 MAX TNT Hardware Installation Guide
Cabling and Connector Specifications
E1/PRI interface specifications
E1/PRI straight-through cable: RJ-48C/DA-15
Before installing the RJ-48C/DA-15 straight-through cable, verify that the WAN interface
transmits on pins 3 and 11 and receives on pins 1 and 9. Figure B-8 and Table B-12 show the
pinouts.

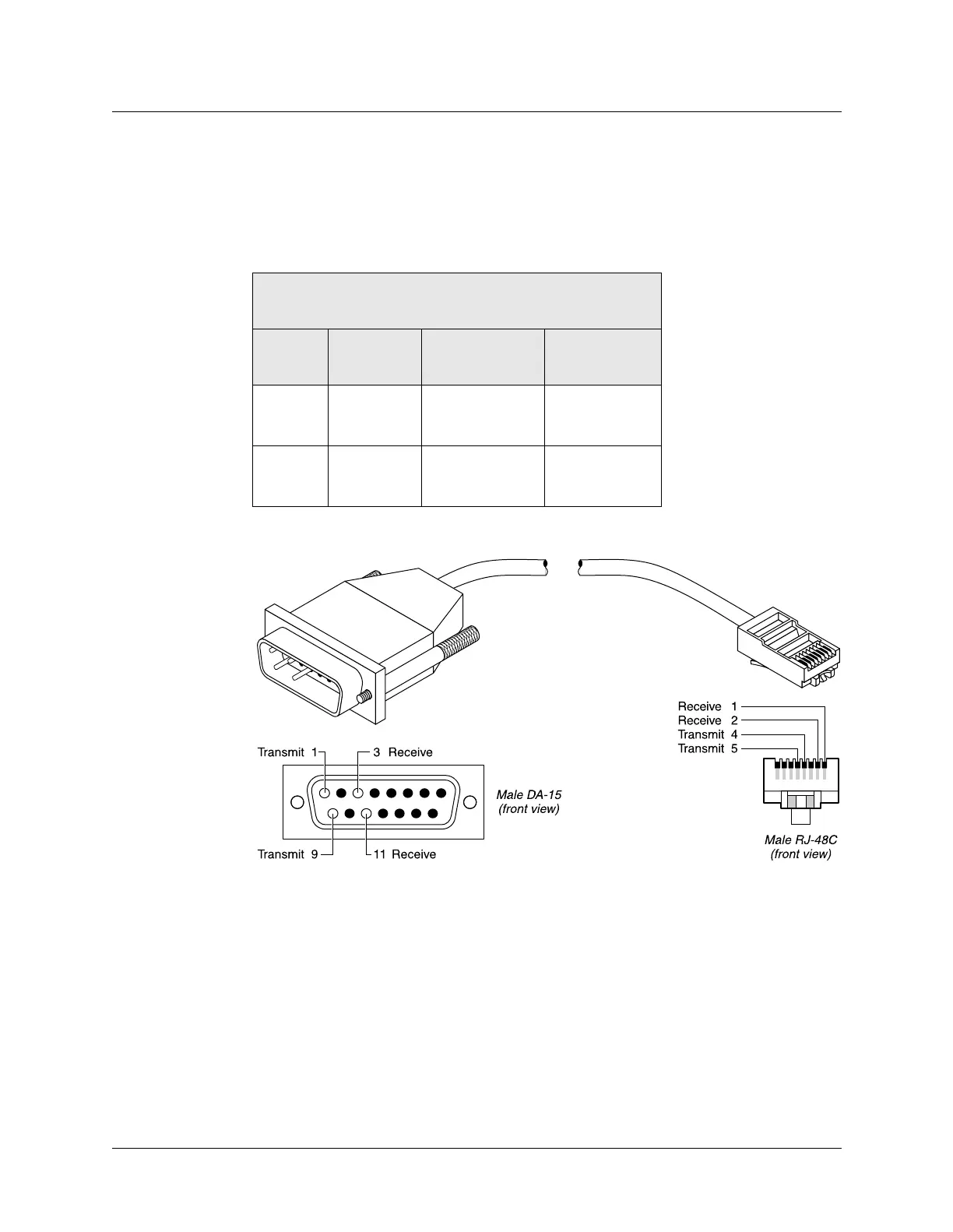

Figure B-8. RJ-48C/DA-15 straight-through cable
Table B-12. RJ-48C/DA-15 straight-through cable specifications
Model number DA15-X
Part number 2510-0082-001
Pair # Signal Male RJ-48C Male DA-15
(remote)
1 Receive 1
2
3
11
2Transmit5
4
1
9
