Cabling and Connector Specifications
E1/PRI interface specifications
MAX TNT Hardware Installation Guide B-11
E1/PRI straight-through cable: RJ-48C/RJ-48C
Before installing the RJ-48C/RJ-48C straight-through cable, verify that the WAN interface
transmits on pins 2 and 1 and receives on pins 5 and 4. Table B-11 and Figure B-7 show the
pinouts.

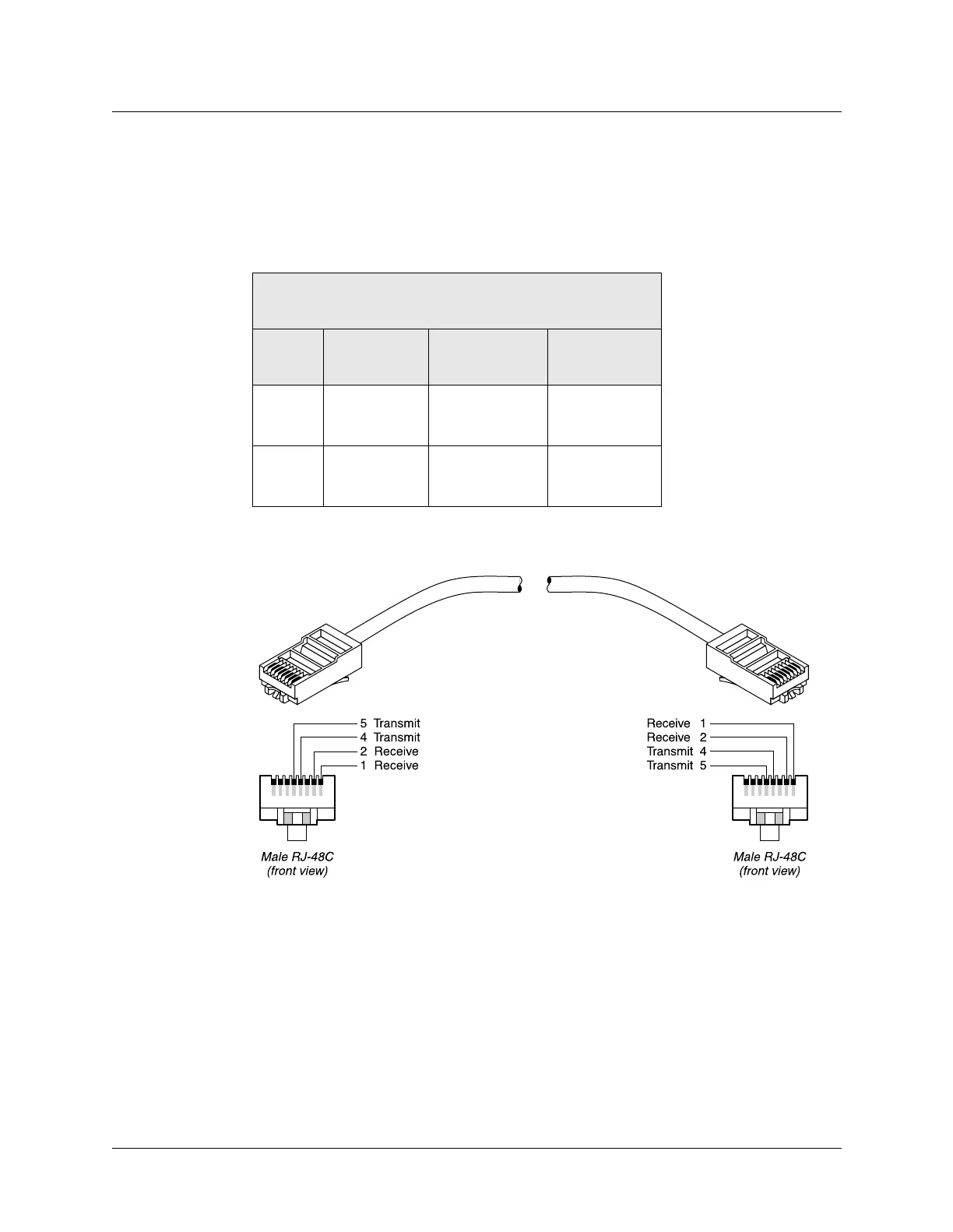

Figure B-7. RJ-48C/RJ-48C straight-through cable
Table B-11. RJ-48C/RJ-48C straight-through cable specifications
Model number RJ-48C-S
Part number 2510-0064-001
Pair # Signal
(MAX TNT)
Male RJ-48C
(MAX TNT)
Male RJ-48C
(remote)
1 Receive 1
2
1
2
2Transmit5
4
5
4
