Lucent Technologies MAX TNT - Figure 3-1 Installing the MAX TNT Rack Ears

Installing a MAX TNT Chassis
Rack-mounting a MAX TNT unit
MAX TNT Hardware Installation Gulide 3-3

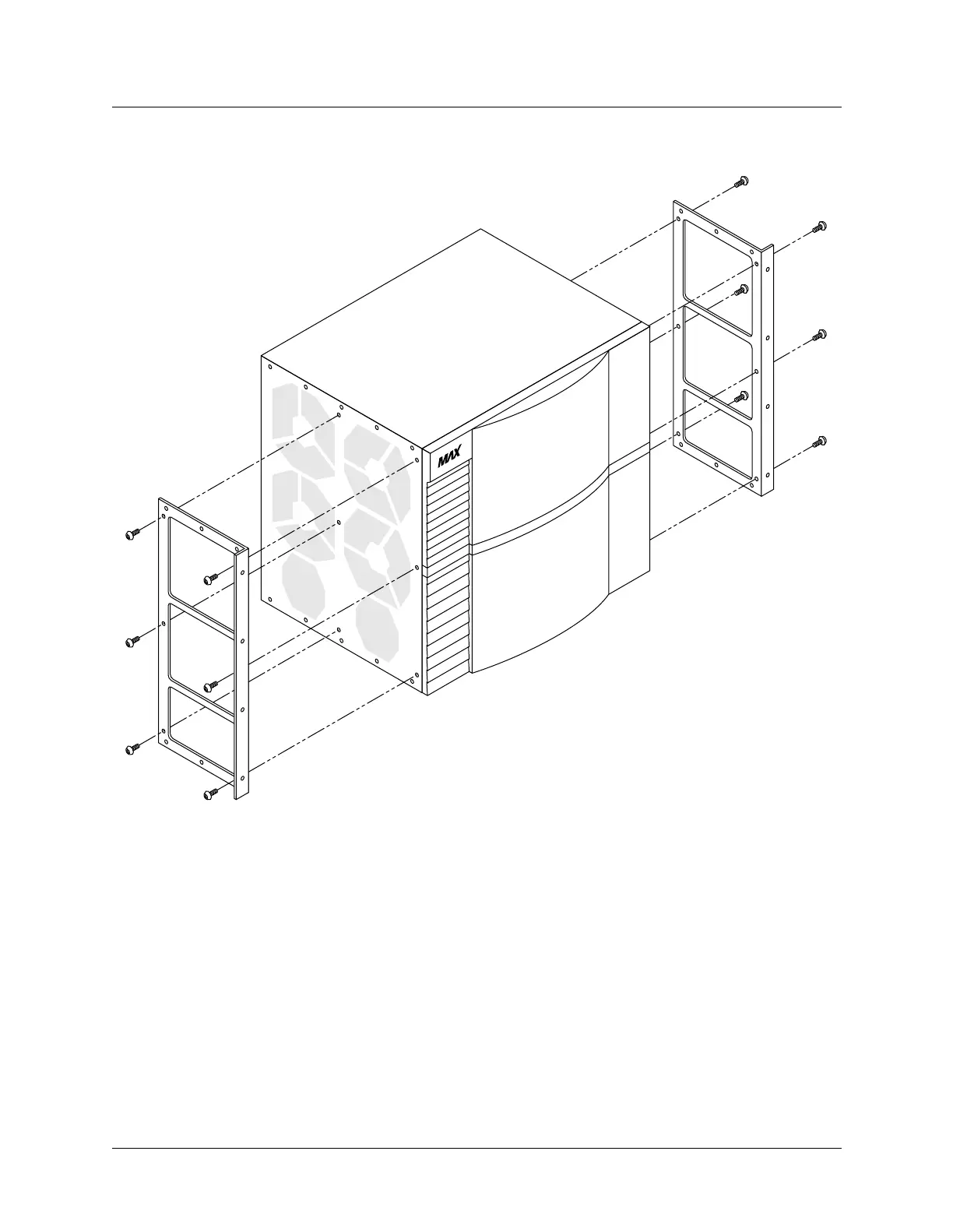

Figure 3-1. Installing the MAX TNT rack ears
You can mount a MAX TNT unit in a 19-inch or 23-inch (48.26cm or 58.42cm) rack. A single
MAX TNT shelf has the dimensions shown in Figure 3-2.
19 Inch kit (shown) Part No. TNT-RM19
23 inch kit (not shown) Part No. TNT-SP-RM23
