A-28 MAX TNT Hardware Installation Guide
Slot Card Specifications and Connection Information
T1 card
T1 card
A T1 line supports 24 64Kbps channels, each of which can transmit and receive data or
digitized voice. The line uses framing and signaling to achieve synchronous and reliable
transmission. The most common configurations for T1 lines are ISDN Primary Rate Interface
(PRI) and dedicated or unchannelized T1, including fractional T1. A T1 card supports up to
eight T1 lines.

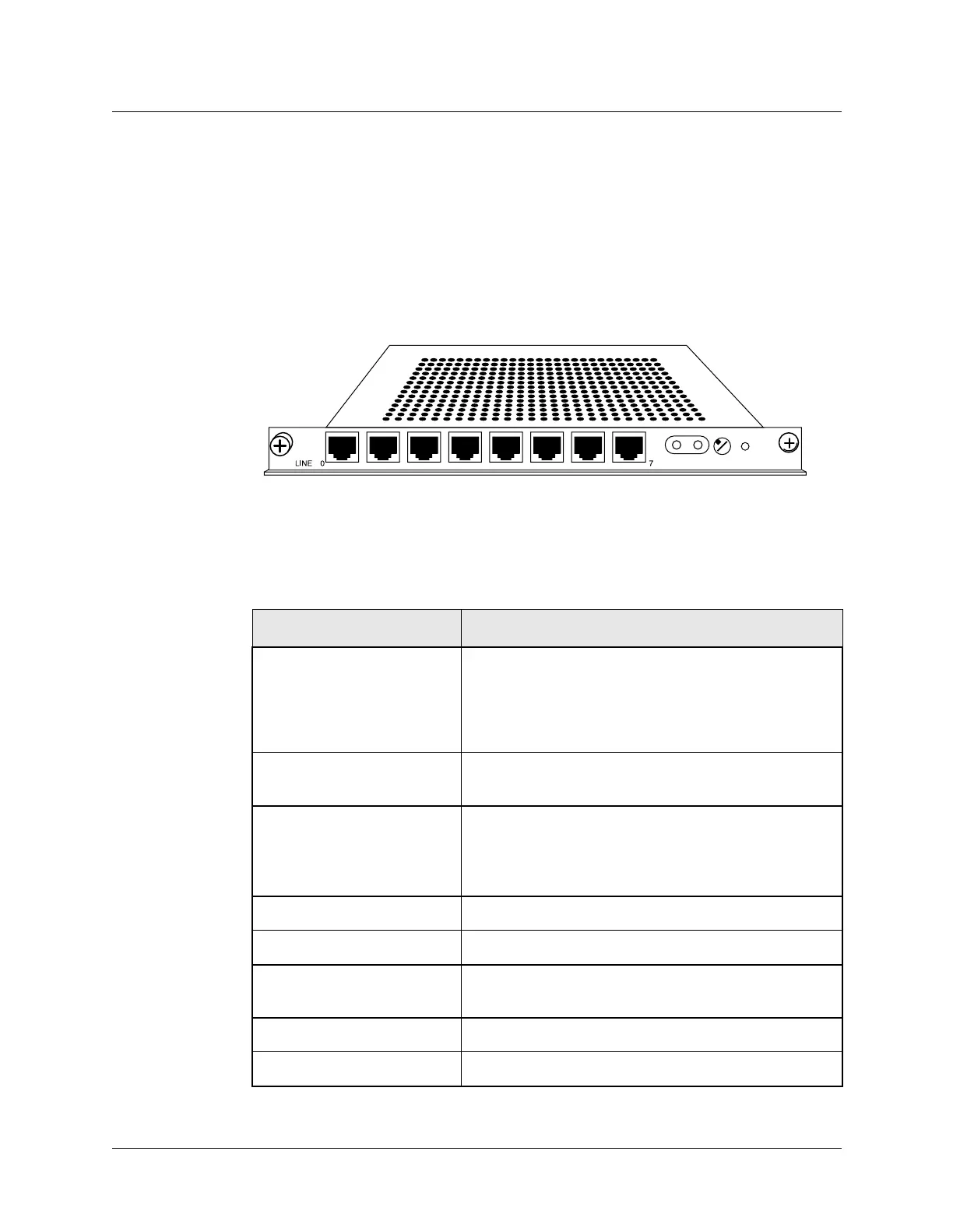

Figure A-17 shows the T1 card.
Figure A-17. T1 card
Specifications
Table A-22 lists the specifications for the T1 card.
RX TX SEL FAULT
MONITOR
Table A-22. T1 card specifications
Category Specification
Interface standards American National Standards Institute (ANSI) T1.403 and
T1.408
ETSI 300-166 and 300-233
AT&T PUB 62411
Electrical standards DSX-1 per ANSI T1.102 (DSX)
DS1 per ANSI T1.403, Pub 62411 (CSU)
Line buildout 0dB, -7.5dB, -15dB or -22.5dB (CSU)
0-133 feet (0-40.54m), 133-266 feet (40.54 -81.1m),
266-399 feet (81.1-121.62m), 399-533 feet
(121.62-162.46m), 533-655 (162.46-199.64m) feet (DSX)
Receive equalization Based on cable length and transmitter
Rx sensitivity 0 to -36dB
Line code Alternate mark inversion (AMI) and bipolar 8-zero
substitution (B8ZS)
Line rate 1.544Mbps ± 32ppm
Frame format Per ANSI T1.107a
