Installing a MAX TNT Chassis
Installing or replacing high-output power supplies
MAX TNT Hardware Installation Gulide 3-9
4 Remove the existing power supplies as shown in Figure 3-8.

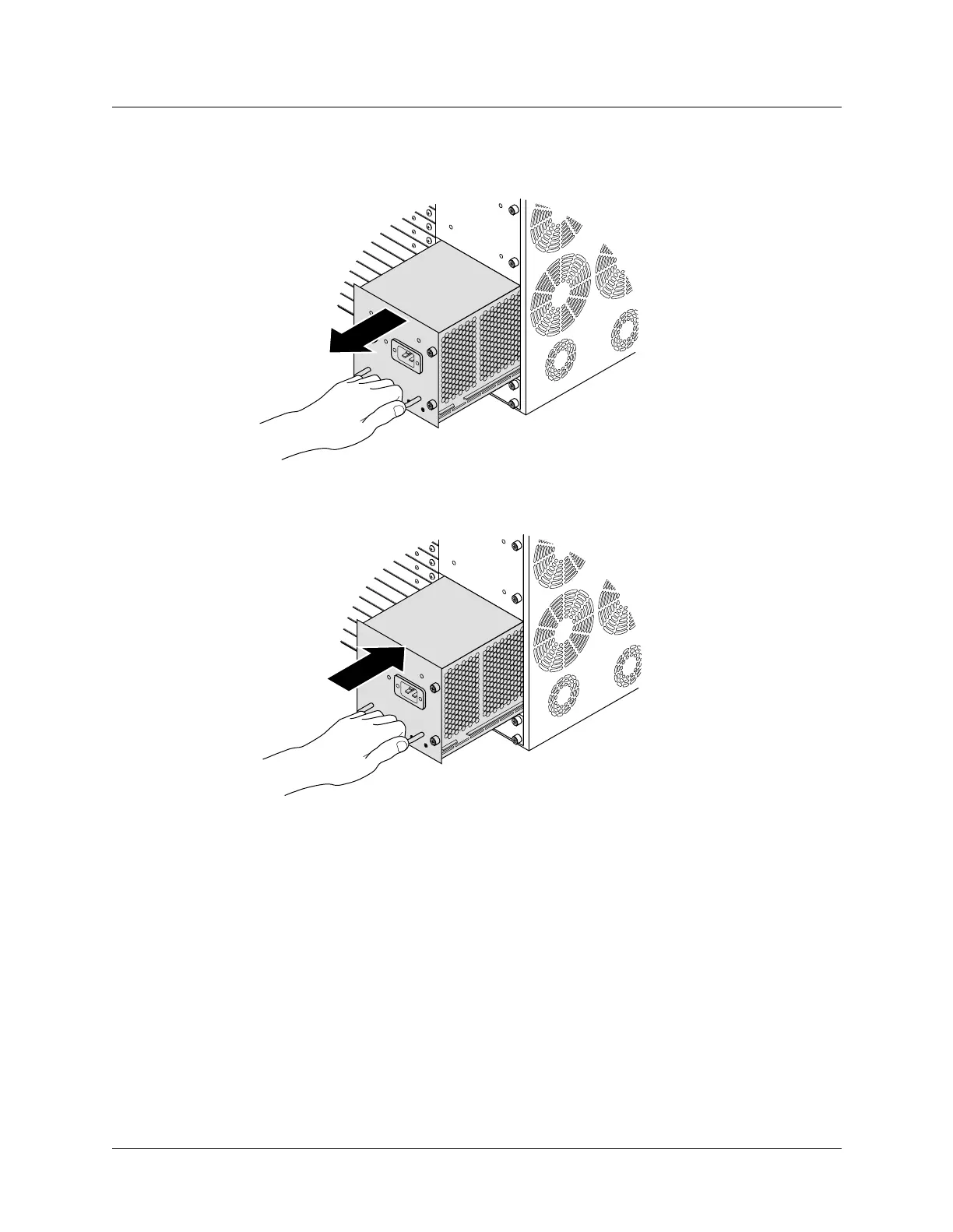

Figure 3-8. Removing the power supply
5 Gently insert the new power supply as shown in Figure 3-9.
Figure 3-9. Inserting the power supply
