A-30 MAX TNT Hardware Installation Guide
Slot Card Specifications and Connection Information
T1 FrameLine card
T1 FrameLine card
The T1 frameline card supports 10 unchannelized T1 lines. The entire bandwidth of each T1
line can be used for a frame relay connection.

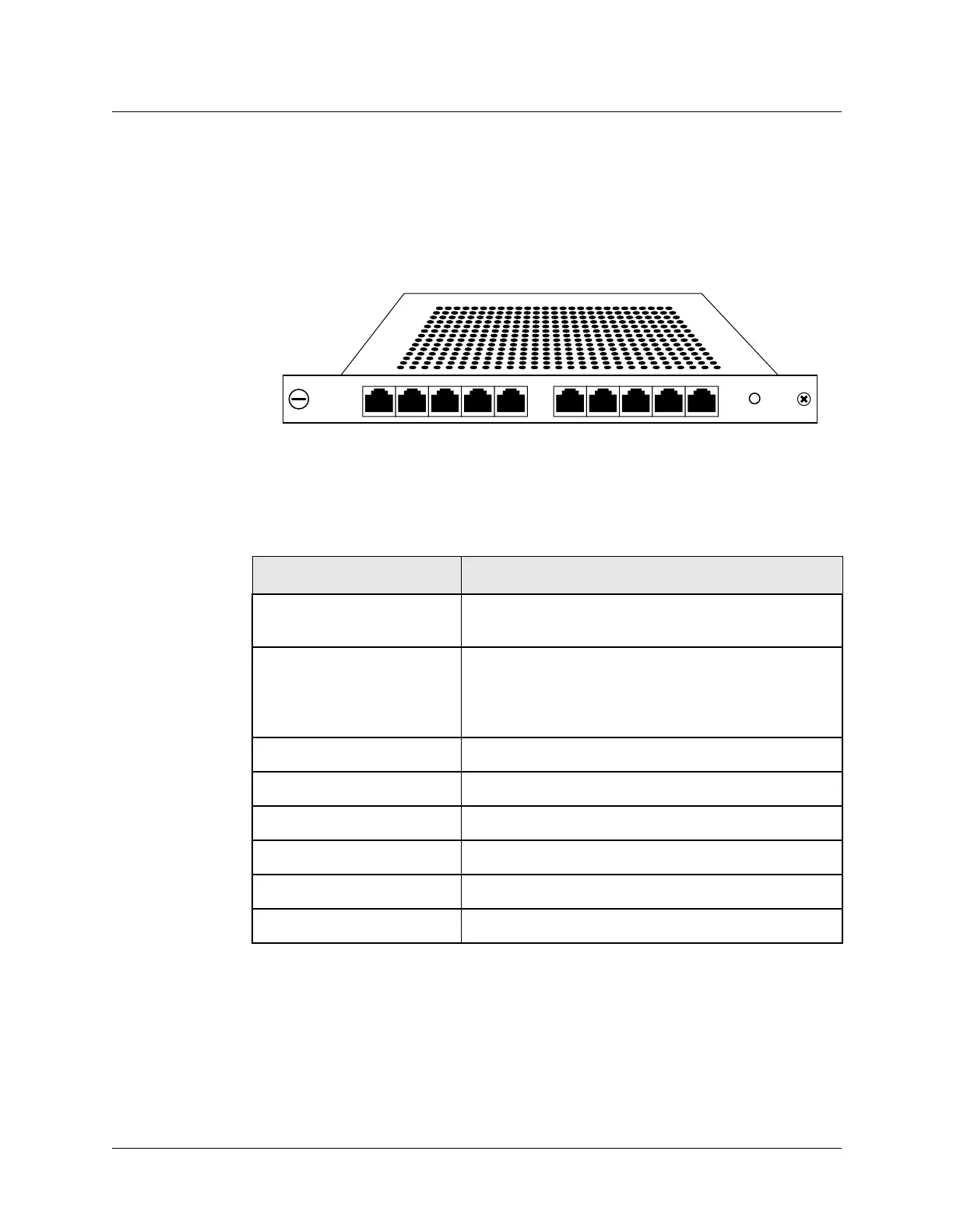

Figure A-19 shows the T1 FrameLine card.
Figure A-19. T1 FrameLine card
Specifications
Table A-23 lists the specifications for the T1 FrameLine card.
LINE
01234 56789
FAULT
Table A-23. T1 FrameLine card specifications
Category Specification
Electrical DSX-1 per ANSI T1.102 (DSX)
DS1 per ANSI T1.403, Pub 62411 (CSU)
Line buildout 0dB, -7.5dB, -15dB or -22.5dB (CSU)
0-133 feet (0-40.54m), 133-266 feet (40.54 -81.1m),
266-399 feet (81.1-121.62m), 399-533 feet
(121.62-162.46m), 533-655 (162.46-199.64m) feet (DSX)
Receive equalization Based on cable length and transmitter
Line code AMI, B8ZS
Line rate 1.544Mbps ± 32ppm
Frame format Per ANSI T1.107a (M23 or C-bit parity)
Alarm signaling Red Alarm, yellow signal
Connectors 10 RJ-45 (100-ohm line)
