A-26 MAX TNT Hardware Installation Guide
Slot Card Specifications and Connection Information
SWAN card
SWAN card
The Serial WAN (SWAN) card has four high-speed V.35 ports, each of which supports data
rates of up to 8Mbps. The card provides direct connections to routers or packet switches
(Frame Relay connections). Its circuitry includes hardware-based Stac compression. Up to six
SWAN cards can be used in a MAX TNT shelf for a total of up to 24 ports.

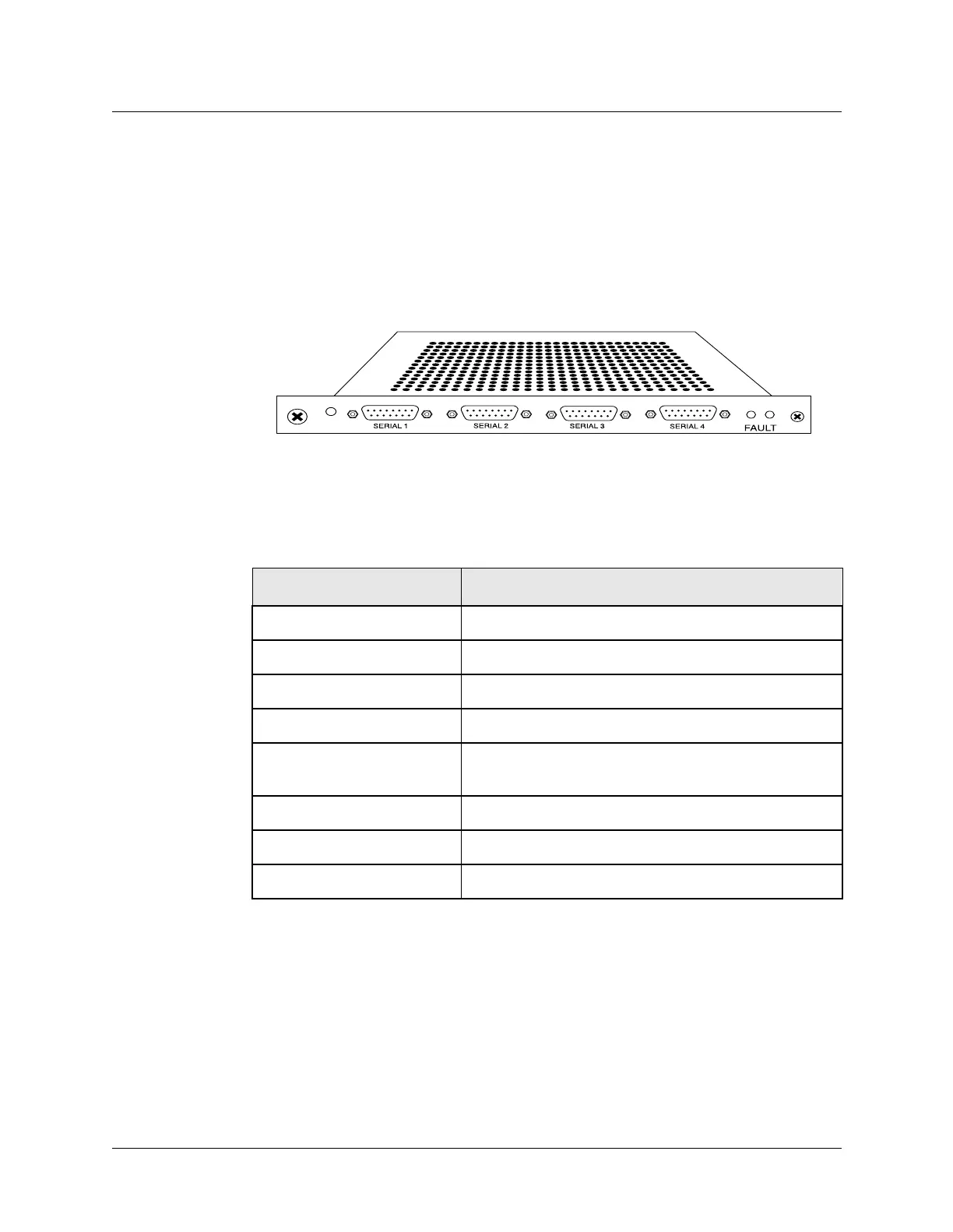

Figure A-15 shows the SWAN card.
Figure A-15. SWAN card
Specifications
Table A-21 lists the specifications for the SWAN card.
Table A-21. SWAN card specifications
Category Specification
Interface standard V.35
Power requirements N/A
Interfaces per card Four V.35 ports per card, six cards per shelf
Connector requirements Must meet Japanese Industrial Standards (JIS) C 5973
Card dimensions 8.8 inches high x 10.6 inches long
(22.35cm x 26.92cm)
Card weight 3.9 pounds (1.77kg)
Operating humidity 0-90%, noncondensing
Operating temperature 32-104° F (0-40° C)
