T1/PRI interface specifications
MAX TNT Hardware Installation Guide B-5
T1/PRI straight-through cable: RJ-48C/RJ-48C
Before installing the RJ-48C/RJ-48C straight-through cable, verify that the WAN transmits on
pins 5 and 4 and receives on pins 2 and 1. Table B-4 and Figure B-2 show the pinouts.

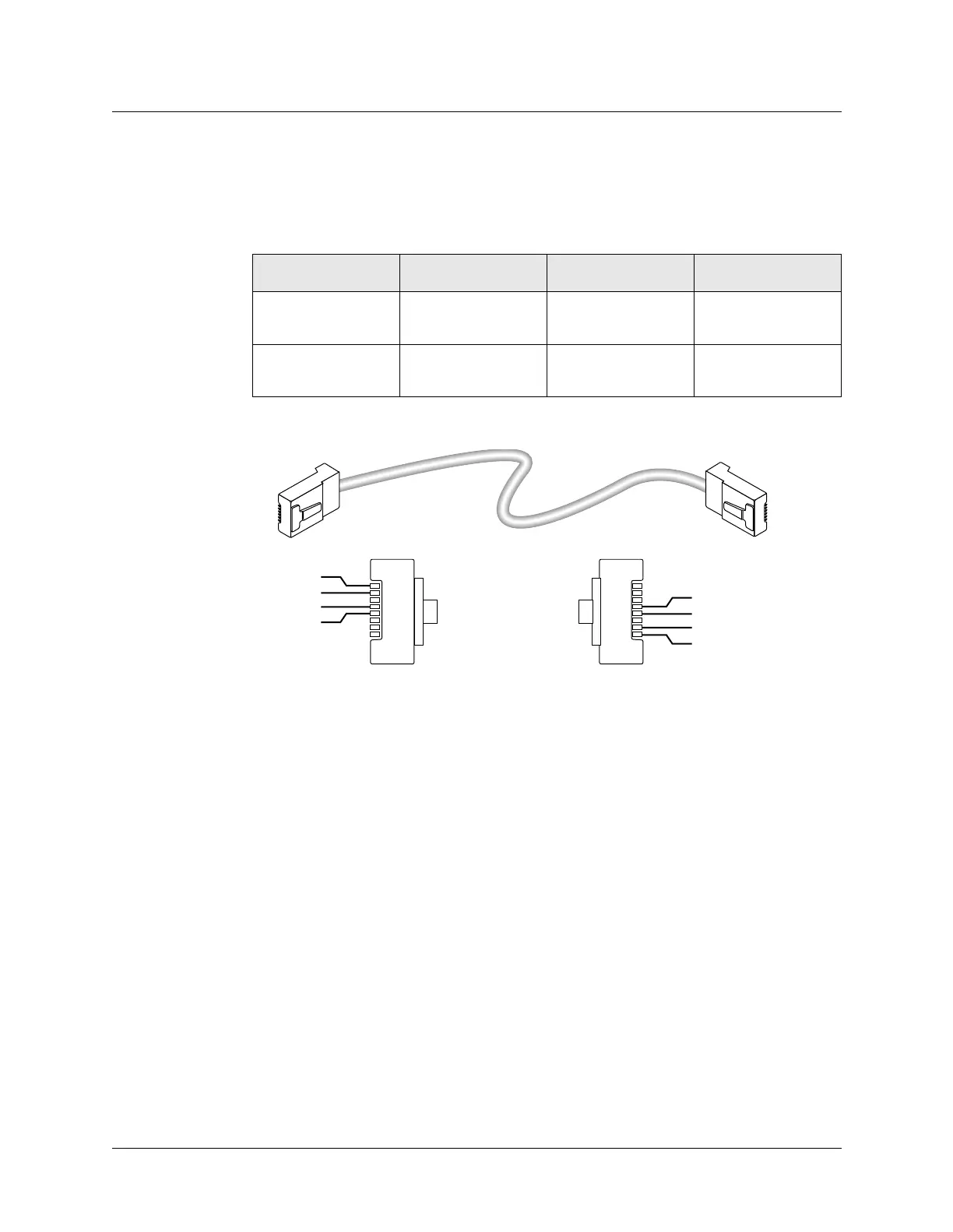

Figure B-2. RJ-48C/RJ-48C straight-through cable
Table B-4. RJ-48C/RJ-48C straight-through cable specifications
Pair # Signal Male RJ-48C Male RJ-48C
1 Receive 1
2
1
2
2Transmit5
4
5
4
1 RECEIVE
2 RECEIVE
RECEIVE 1
RECEIVE 2
4 TRANSMIT
5 TRANSMIT
TRANSMIT 4
TRANSMIT 5
Male RJ-48C Male RJ-48C
