B-10 MAX TNT Hardware Installation Guide
Cabling and Connector Specifications
E1/PRI interface specifications
E1/PRI interface specifications
MAX TNT E1/PRI specifications apply to cables and WAN ports.
E1/PRI cable specifications
The WAN interface cables and plugs described in this section are available for the
unit’s WAN interfaces.
E1/PRI crossover cable: RJ-48C/RJ-48C
Install the RJ-48C/RJ-48C crossover cable when the WAN interface transmits on pins 5 and 4
and receives on pins 2 and 1. Table B-10 and Figure B-6 show the pinouts.

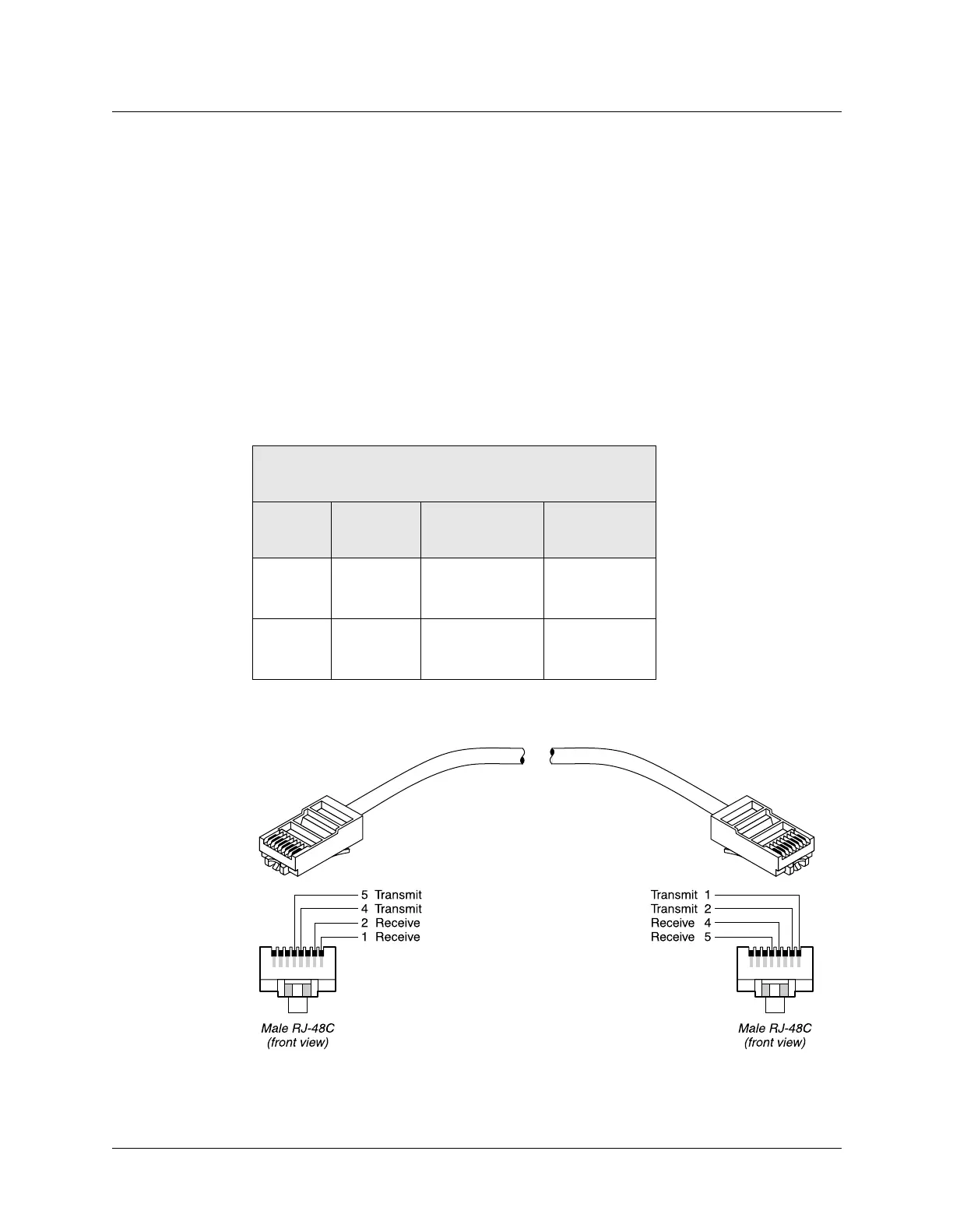

Figure B-6. RJ-48C/RJ-48C crossover cable
Table B-10. RJ-48C/RJ-48C crossover cable
Model number RJ-48C-X
Part number 2510-0059/0323-001
Pair # Signal Male RJ-48C Male RJ-48C
(remote)
1 Receive 2
1
5
4
2Transmit5
4
2
1
