PFD page
Document name: LX HUM
Document revision: R1
PFD page

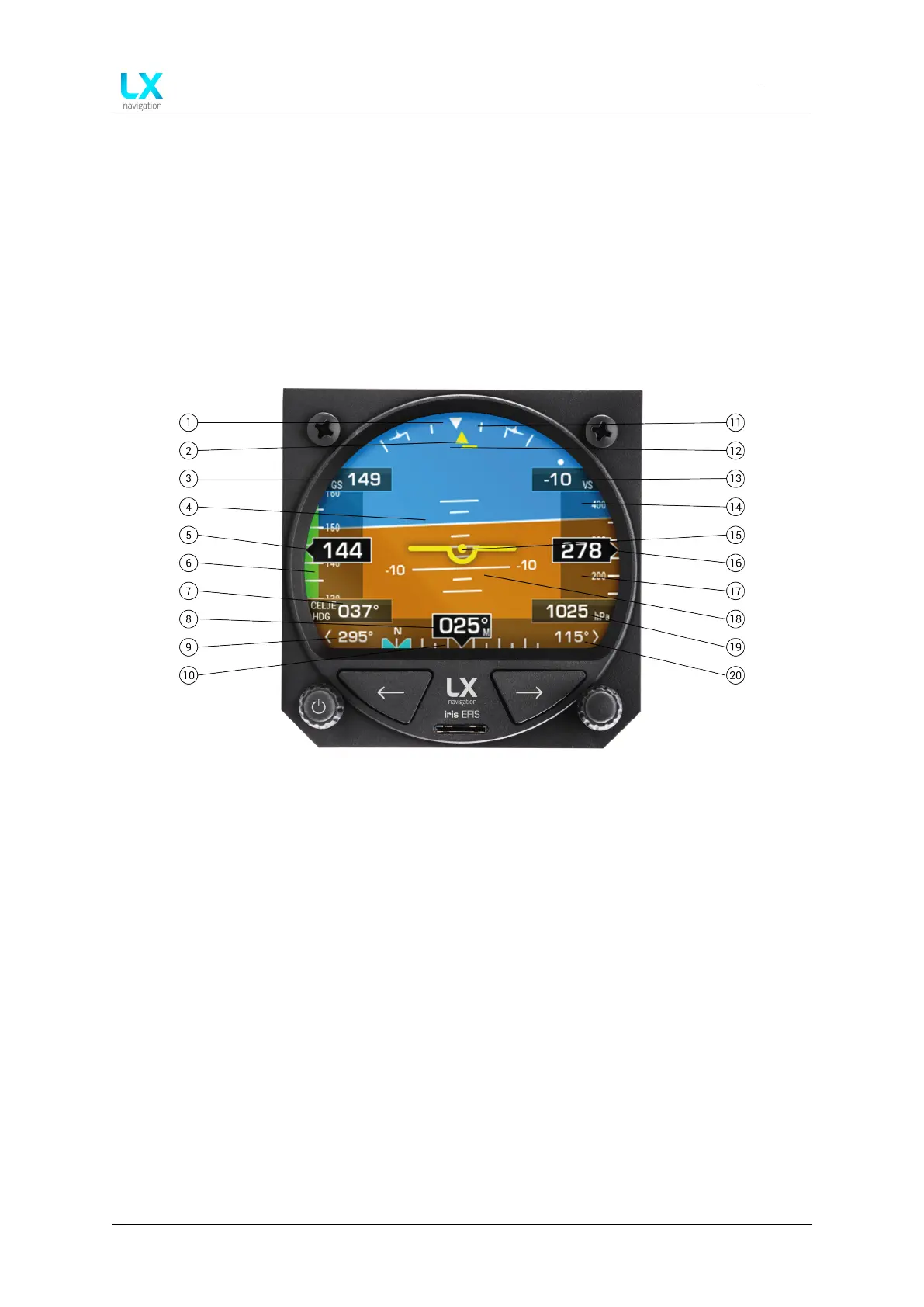

Figure 3. PFD page with all available widgets
• Roll Pointer (1)
• Horizon Line (2)
• Aircraft Symbol (3)
• Slip/Skid Indicator (4)
• Land Representation (5)
• Sky Representation (6)
• Pitch Scale (7)
• Roll Scale Zero (8)
• Heading / True track bug setting (9)
• Heading / True track bug (10)
• Current magnetic heading (11)
• + 90 degree left turn (12)
• + 90 degree right turn (13)
• Vertical speed indicator (14)
• Altitude tape (BARO) (15)
• Current altitude (16)
• Airspeed indicator (17)
• Current airspeed (18)
• Ground speed (GS) (19)
• Current airspeed (20)
