LX Navigation iris EFIS Series - Route; Pfd; Theme

LX iris EFIS
Setup page
Document name: LX HUM
Document revision: R1

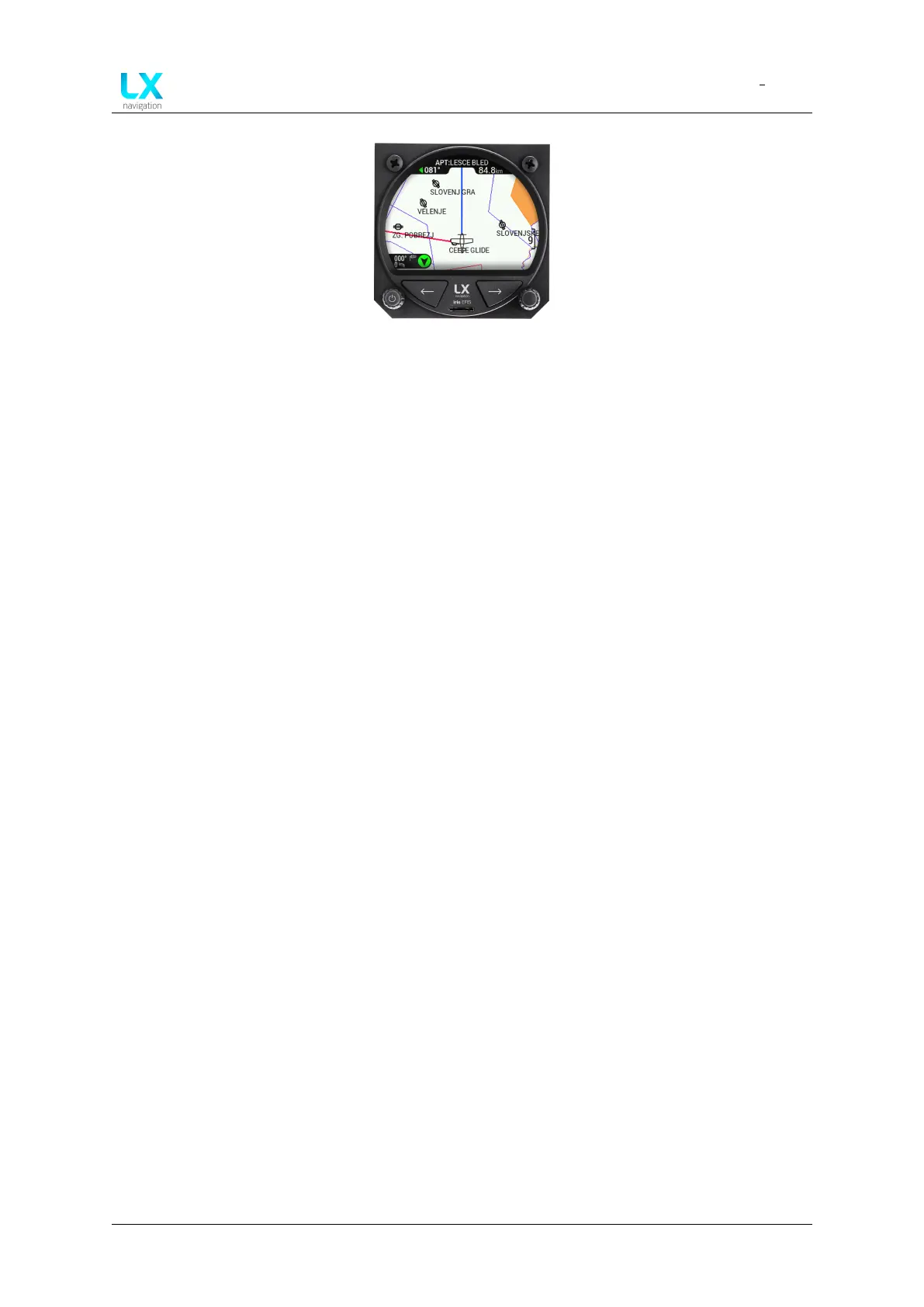

Figure 93. Color Palette
- White (no elevation)
13.2.3.3 Route
In the ”Route” menu, pilot can adjust colors to specific elements on the ”RTE” page. Pilot can
define ”Outline” color, ”Fill” color and ”Transparency level”.
• “Active points” Set the color and transparency level
• “Inactive points” Set the color and transparency level
• “Leg yet to cover” Set the color and transparency level
• “Active leg” Set the color and transparency level
• “Course to next TP” Set the color and transparency level
• “Covered leg” Set the color and transparency level
13.2.3.4 PFD
In the ”PFD” menu, pilot can adjust specific elements on the ”PFD” page.
• “Show airspeed” ”On” or ”Off” option
• “Show altitude” ”On” or ”Off” option
• “Show direction” Select between ”Magnetic Heading”, ”True Track” and ”Off”
• “Sync HDG bug” Select between ”Auto”, ”APT”, ”RTE” and ”None”
• “Turn coordinator” Select between ”1 min”, ”2 min” and ”Off”
13.2.3.5 Theme
In the ”Theme” menu, pilot can select color theme of the device. The theme can be selected
only on the ground and it is disabled mid-flight.
• “Black panel” Black background with white text
• “White panel” White background with black text
Device manual Public 68
